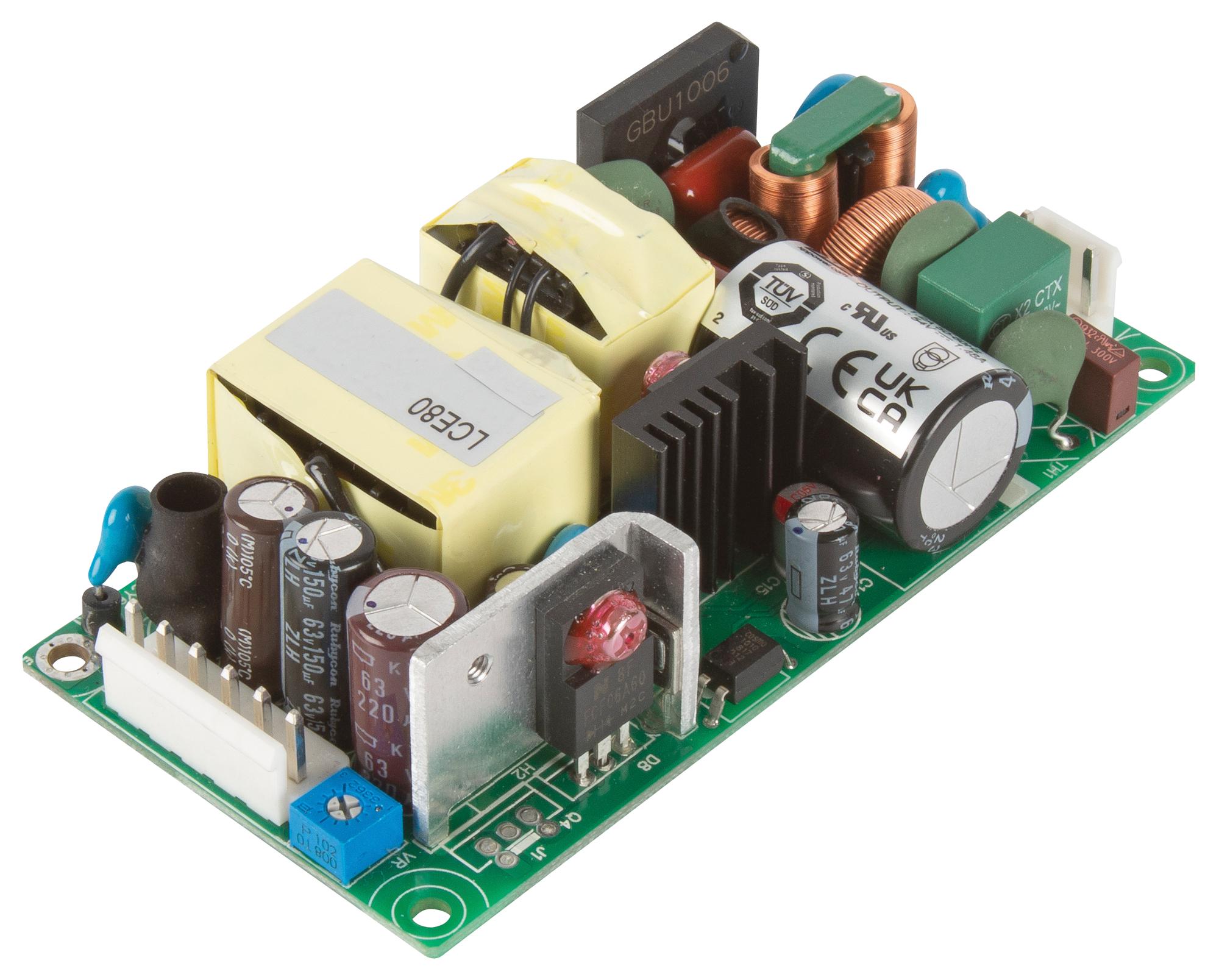

XP POWER LCE80PS48 Power Supply
This power supply operates in constant voltage and constant current modes, suitable for lighting and display applications. It features Class C harmonic filtering and has approvals for ITE and household use. It includes Low Power Supply (LPS) for outputs of 12V and above, with a 2-inch by 4-inch footprint. The unit supports both Class I and Class II operation and consumes less than 0.5W of no-load input power. With an operating temperature range of -40°C to +70°C, convection cooling, and certifications including UL and EN, it provides reliable performance for industrial electronics and lighting systems.
XP POWER LCE80PS48 Power Supply Specifications:
- Power output: 80W
- Dimensions: 4" x 2" x 1.10" (101.6 x 50.8 x 27.9 mm)
- Input voltage: 90 to 305VAC
- Input frequency: 50/60Hz
- Operating temperature: -40°C to +70°C
- Efficiency: 88%
- Ripple & Noise: 120-240mV depending on model
- Isolation Voltage: Input to Output 3000 vac
- Protection: Overload, Overvoltage, Short Circuit
- Cooling: Convection cooled
- Certifications: UL, EN62368-1
- No load power consumption: Less than 0.5W
- Input Protection: Internal fuse, Input to Ground 1500 vac
Buy the XP Power Series LCE80 Power Supply: LCE80PS48
Secure your industrial and lighting projects today by purchasing the XP Power LCE80PS48 power supply online. With its durable design, high efficiency of 88%, and extensive certifications including UL and EN, this convection-cooled power supply delivers constant voltage and current for a wide input range of 90 to 305VAC. Ideal for applications requiring reliable operation at temperatures from -40°C to +70°C, it ensures safety with Class I & II operation, low no-load power consumption under 0.5W, and compact 4" x 2" size. Order now for fast delivery and dependable performance.
Buy XP Power LCE80PS48 now and experience unmatched reliability and performance with versatile lighting and display application support.
