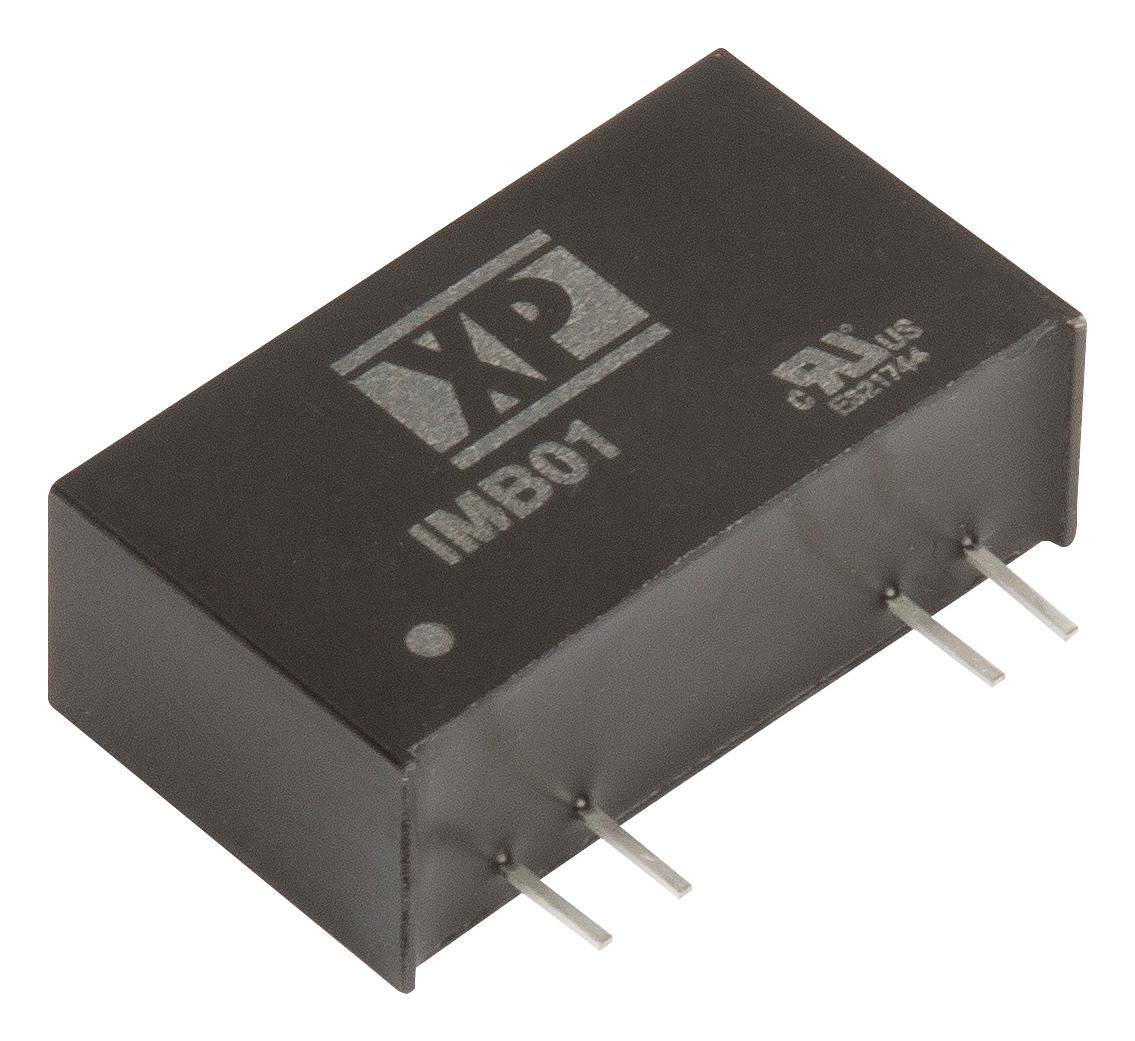

XP POWER IMB0124S05 Medical DC-DC Converter
The IMBO1 series from XP Power features a compact 1-Watt medical-grade DC-DC converter with a SIP7 package. It offers 2 x MOPP isolation, an input voltage range of 10.8V to 13.2V (12V nominal), 4000 VAC input-to-output isolation, and operates from -40°C to +105°C. With low leakage current of 2uA, short circuit protection, and full load at +85°C, it is designed for safety-critical medical applications. Its small size and high reliability make it ideal for portable and embedded medical devices requiring isolation and stability.
XP POWER IMB0124S05 Medical DC-DC Converter Specifications:
- Input Voltage Range: 10.8V to 13.2V (12V nominal), 21.6V to 26.4V (24V nominal)
- Output Voltage: 5V, 15V (see models)
- Output Current: 79% efficiency at full load, 50mA to 705mA depending on model
- Isolation Voltage: 4000 VAC 60s, reinforced, 300 Vims
- Leakage Current: 2uA
- Operating Temperature: -40°C to +105°C
- Maximum Power: 1W
- Dimensions: 0.87 x 0.49 x 0.30 inches (22.0 x 12.5 x 7.5 mm)
- Case Material: UL94V-0 rated non-conductive plastic
- Pin Material: Tinned Copper
- MTBF: 43 million hours
- Switching Frequency: 12-28 kHz (burst mode at light load)
- Humidity: 5% RH non-condensing
- Certification: IEC60601-1, medical approvals
Buy the Buy XP Power DC-DC Converter Part Number IMB0124S05 Online
Purchase the XP Power IMB0124S05 medical-grade DC-DC converter online today. Its compact SIP7 package, 2 x MOPP isolation, and low leakage current make it ideal for portable and embedded medical devices. Designed for safety, reliability, and high temperature operation up to +105°C, it features reinforced isolation, short circuit protection, and efficient performance at full load. Enhance your medical equipment with this robust, certified converter that ensures safety compliance and consistent power delivery in critical healthcare environments.
Buy XP Power IMB0124S05 now and experience unmatched reliability and compact design for medical applications.
Frequently Asked Questions
Where can I buy XP POWER IMB0124S05?
You can click on the BUY or RFQ button to purchase IMB0124S05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IMB0124S05?
You can download the IMB0124S05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IMB0124S05?
XP POWER
