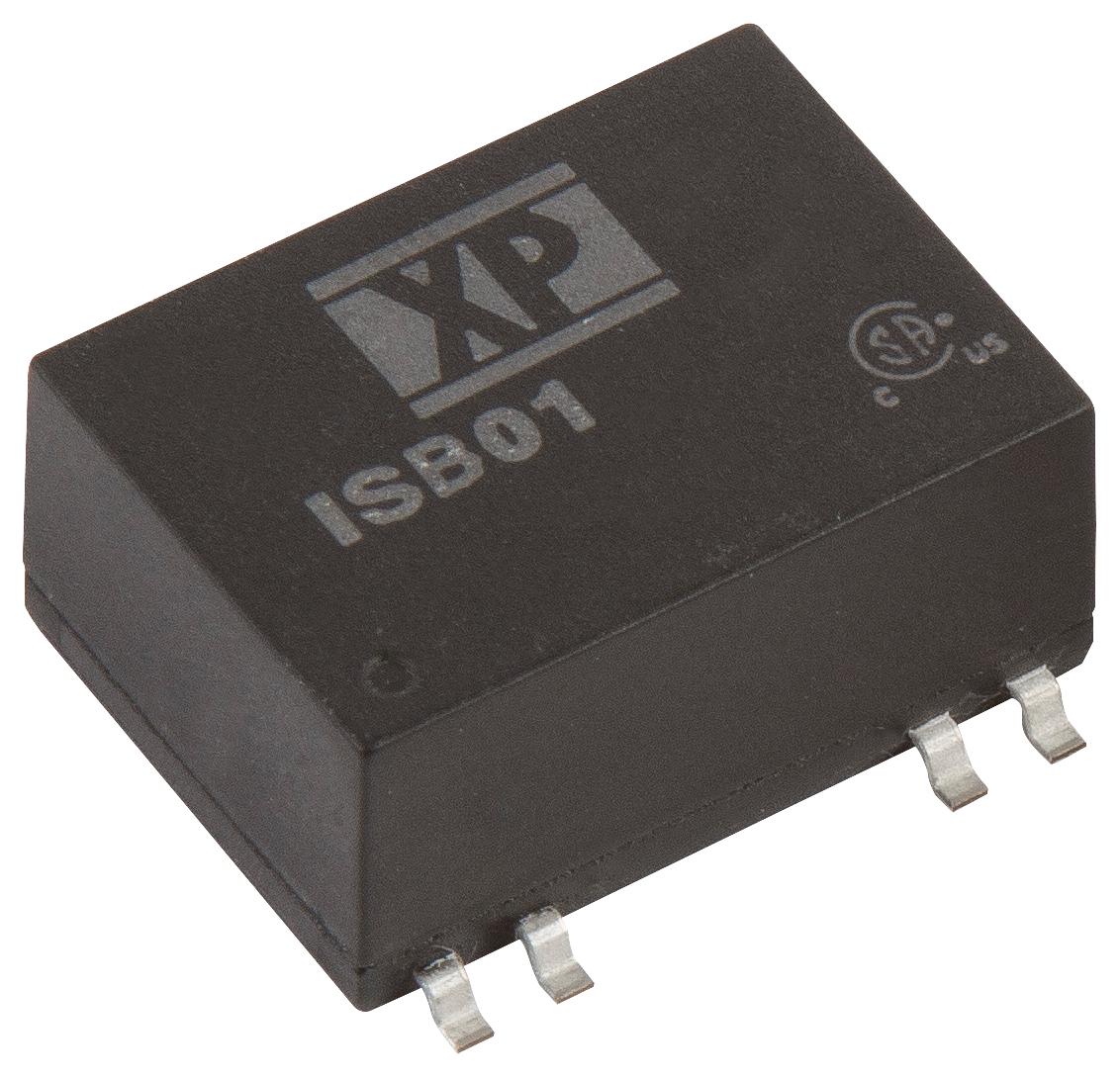

XP POWER ISB0124D12 DC-DC Converter
The ISB01 series is a 1W regulated DC-DC converter available in single and dual output configurations, featuring a 2:1 input voltage range within a compact SMD package. It provides 1500VDC isolation between input and output and includes continuous short-circuit protection with auto-recovery. The converter is compliant with IEC 60950-1 and UL/cUL 60950-1 standards. It supports a remote On/Off function, has an initial output accuracy of ±1%, line regulation of ±0.2%, and load regulation of ±1%. Operating at a switching frequency of 220kHz, it measures 18.9mm x 17.2mm x 8.7mm (0.74in x 0.68in x 0.34in), weighs 4.5 grams, and operates over a temperature range from -40°C to 95°C. Suitable for power management and industrial applications.
XP POWER ISB0124D12 DC-DC Converter Specifications:
- Power: 1 Watt
- Input Voltage Range: 4.5-9V, 9-18V, 18-36V, 36-75V, 90-264V (configurable options)
- Output Voltage: 5V, 12V, 15V, or adjustable up to 30V
- Dimensions: 18.9 x 17.2 x 8.7 mm (0.74 x 0.68 x 0.34 inches)
- Isolation Voltage: 1500 VDC
- Operating Temperature: -40°C to 95°C
- Switching Frequency: 220 kHz
- Efficiency: Up to 82%
- Isolation Capacitance: 50 pF
- Input Ripple & Noise: 75 mV peak-to-peak
- Protection: Continuous short-circuit with auto recovery
- Compliance: IEC 60950-1, UL/cUL 60950-1, CE
- Weight: 4.5 grams
- Case Material: Non conductive black plastic with UL 94V-0 rating
- Environmental: Operating humidity 5% RH to non-condensing
- Certifications: UL, cUL, CE, UKCA
Buy the XP Power Series DC-DC Converter: ISB0124D12
Purchase the XP Power ISB0124D12 DC-DC converter online today and enjoy exceptional power conversion performance in a compact package. Its high isolation voltage of 1500VDC, wide input voltage range, and efficient operation make it ideal for industrial and power management applications. With features like automatic short-circuit recovery, low ripple noise, and IEC 60950-1 compliance, this reliable converter ensures durability and safety. Order now to enhance your power systems with a trusted, high-quality conversion solution, with fast delivery and excellent customer support.
Buy XP Power ISB0124D12 now and experience unmatched reliability and performance with a compact design and high isolation voltage.
Frequently Asked Questions
Where can I buy XP POWER ISB0124D12?
You can click on the BUY or RFQ button to purchase ISB0124D12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ISB0124D12?
You can download the ISB0124D12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ISB0124D12?
XP POWER
