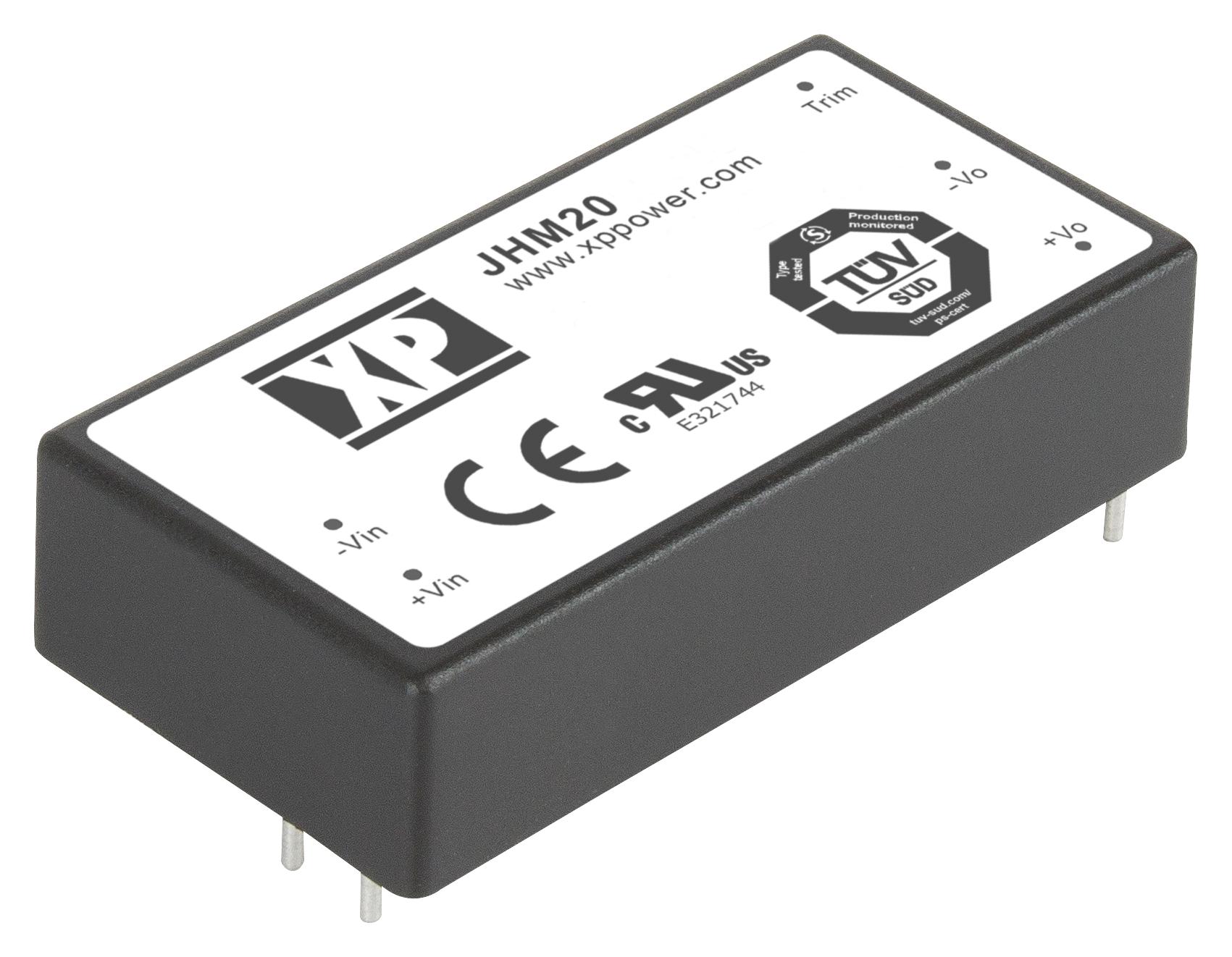

XP POWER JHM2024D12 Medical DC-DC Converter
The JHM20 series DC-DC modules provide a compact, dependable power solution tailored for medical applications, meeting stringent international safety standards. They deliver regulated single and dual outputs from 5V to 30V, with single outputs offering ±10% trimming. They support a 2:1 input voltage range and feature a 2 x 1-inch PCB footprint for easy mounting. Key features include reinforced isolation up to 4kVAC, 2 MOPP at 250VAC, low patient leakage current of 2.5 microamps, and full power delivery at temperatures up to +60°C. Certified for IEC 60601-1, 3rd Edition, and compliant with EN55011 Class A.
XP POWER JHM2024D12 Medical DC-DC Converter Specifications:
- Input Voltage Range: 9V to 75V DC supporting 2:1 input ratio
- Output Voltage: 5V to 30V DC, adjustable within ±10% for single outputs
- Output Current: up to 3500mA depending on model
- Efficiency: up to 88%
- Isolation Voltage: 4000 VAC for 1 minute, reinforced between input and output
- Leakage Current: 2.5 microamps at patient connection
- Operating Temperature: -40°C to +80°C, full power to +60°C
- Dimensions: 2 x 1 inches (50.8 x 25.4 mm), height 10.2 mm
- Case Material: UL94V-0 rated black plastic, silicone potting
- Cooling: Natural convection
- Vibration & Shock: Compliant with EN60068 standards
- Certifications: IEC 60601-1, EN55011 Class A
- Protection Features: Short circuit, overload, overvoltage, and auto recovery
- Switching Frequency: 250 kHz
Buy the XP Power Series JHM20 DC-DC Converter: JHM2024D12
Order the XP Power JHM2024D12 medical DC-DC converter today for reliable, efficient power delivery in medical devices. With reinforced 4kVAC isolation, low patient leakage of 2.5 microamps, and full compliance with IEC 60601-1 standards, this compact module is perfect for sensitive healthcare applications. Its adjustable output from 5V to 30V DC, wide input voltage range, and compact 2 x 1-inch footprint make installation easy and versatile. Ensure your medical equipment operates safely and efficiently—purchase online now for fast, secure delivery and support.
Get XP Power JHM2024D12 today—built for medical-grade reliability with reinforced isolation and low leakage current.
Frequently Asked Questions
Where can I buy XP POWER JHM2024D12?
You can click on the BUY or RFQ button to purchase JHM2024D12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JHM2024D12?
You can download the JHM2024D12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JHM2024D12?
XP POWER
