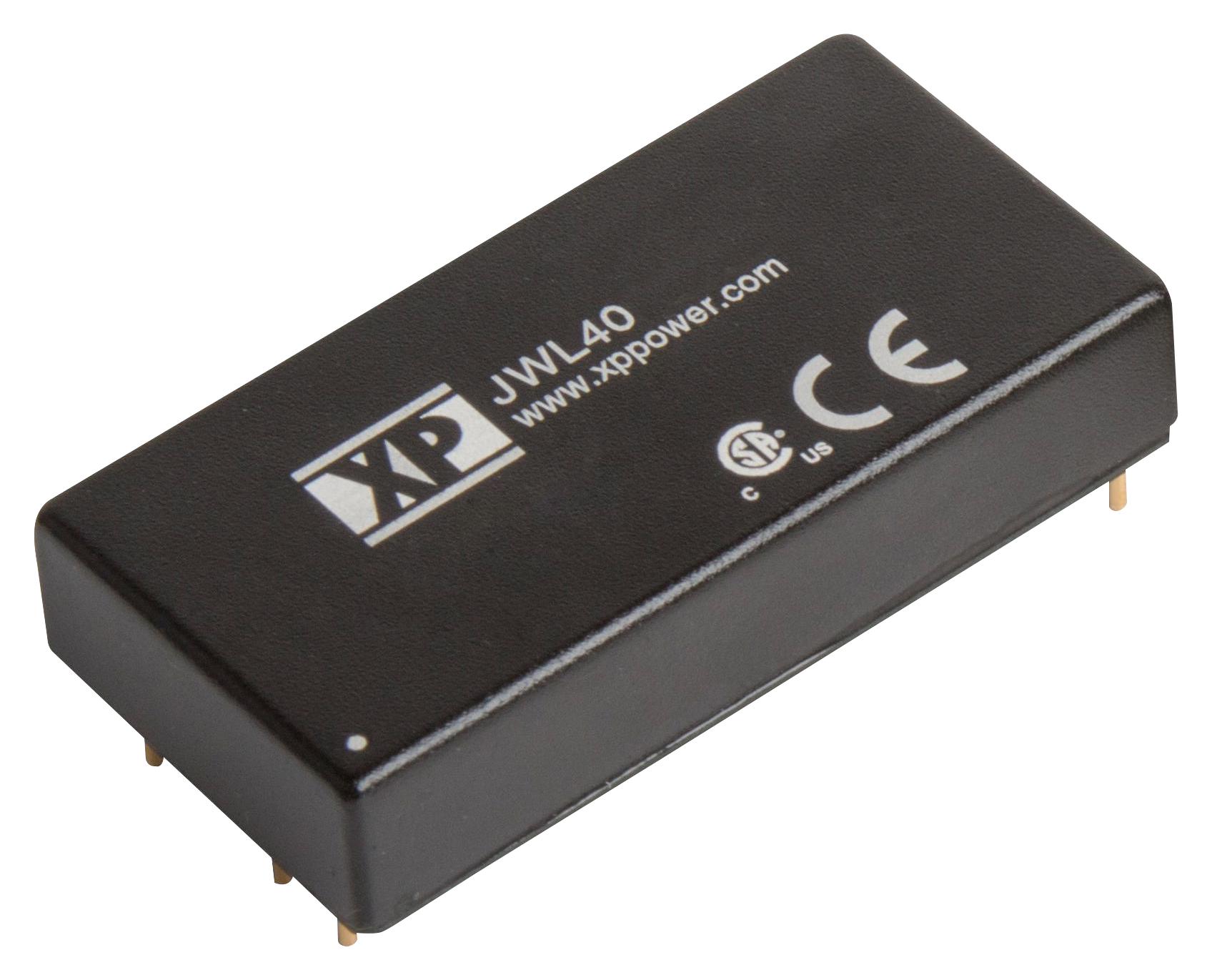

XP POWER JWL4024S05 DC-DC Converter
The JWL40 series is a high-reliability DC-DC converter offering 40 watts of power in a compact 2 x 1-inch package. It features regulated single and dual outputs, a wide 4:1 input voltage range, and efficient power conversion with up to 90% efficiency. The series provides 1500 VDC isolation, operates across -40°C to +105°C, and includes safety approvals for industrial use. Suitable for demanding applications, it also offers optional heatsinks, remote on/off control, and high power density for space-constrained environments.
XP POWER JWL4024S05 DC-DC Converter Specifications:
- Power: 40 Watts
- Input Voltage Range: 8–75 VDC (wide 4:1 ratio)
- Output Voltage Options: 3.3V, 5V, 12V, 15V, 24V, 48V
- Output Current: Up to 8A (for 3.3V model)
- Isolation Voltage: 1500 VDC
- Operating Temperature: -40°C to +105°C
- Efficiency: Up to 90%
- Dimensions: 2.00 x 1.00 x 0.40 inches (50.8 x 25.4 x 10.2 mm)
- Protection: Overload, Short Circuit, Auto Recovery
- Certifications: UL, CSA, IEC safety standards
- Switching Frequency: 285 kHz
- Thermal Dissipation: Natural convection, optional heatsink available
- Humidity Tolerance: 95% RH non-condensing
- Isolation Resistance: 10^9 Ω at 500 VDC
- Isolation Capacitance: 1500 pF
Buy the XP Power JWL4024S05 – Reliable DC-DC Converter for Industrial Applications
Purchase the reliable DC-DC converter series online today to ensure your industrial projects benefit from high power density, wide input range, and exceptional efficiency. These compact units feature regulated outputs, extensive safety approvals, and operate across a broad temperature spectrum. Ideal for space-constrained applications requiring robust performance, safety, and long-term reliability. Order now to improve system stability and energy efficiency, with fast shipping and dedicated support for your technical needs.
Get XP Power JWL4024S05 today—built for precision, efficiency, and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy XP POWER JWL4024S05?
You can click on the BUY or RFQ button to purchase JWL4024S05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JWL4024S05?
You can download the JWL4024S05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JWL4024S05?
XP POWER
