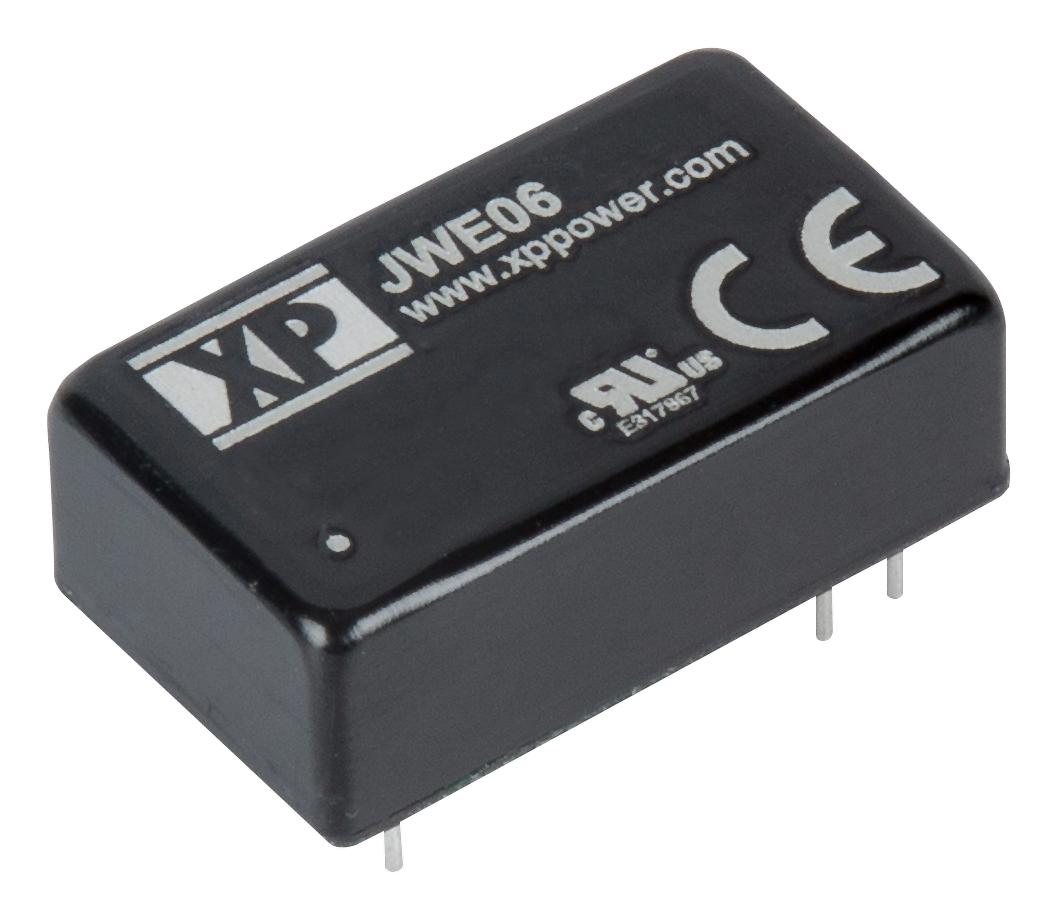

XP POWER JWE0624S24 DC-DC Converter
The JWE06 series is a high power density DC-DC converter capable of delivering 6W with both single and dual output configurations. It features an ultra-wide input voltage range of 9V to 36V for 24V models and 18V to 75V for 48V models, making it ideal for versatile power supply applications. The compact DIP16 package measures 0.94 x 0.54 x 0.31 inches, providing a power density of 50 W/in² for the 8W versions. Available output voltages include 3.3V, 5V, 12V, 15V, and 24V, with dual outputs of ±12V and ±15V. The modules are housed in UL 94V-0 rated metal cases, supporting 1500VDC isolation and full regulation. Operating temperature spans from -40°C to 105°C, with derating starting at 75°C. They meet EN55022 Class A emission standards without external filters and are suitable for power management, industrial, and automation applications.
XP POWER JWE0624S24 DC-DC Converter Specifications:
- Input Voltage Range: 9V to 36V (24V nominal), 18V to 75V (48V nominal)
- Output Voltages: 3.3V, 5V, 12V, 15V, 24V, ±12V, ±15V
- Output Power: 6 Watts
- Package Dimensions: 0.94 x 0.54 x 0.31 inches (23.8 x 13.7 x 8 mm)
- Isolation Voltage: 1500 VDC
- Operating Temperature: -40°C to +105°C, derating from 75°C
- Efficiency: up to 87%
- Housing: UL 94V-0 rated metal case
- High Power Density: 50 W/in²
- Regulation: Line and load regulation within ±0.5%
- Isolation Resistance: 10^8 Ohms at 500 VDC
- Surge and Burst Immunity: Meets IEC61000 standards
- Compliance: EN55022 Class A conducted emission
Buy the Buy XP Power JWE0624S24 Part Number Online
Purchase the XP Power JWE0624S24 DC-DC converter online today to ensure your projects benefit from high power density, excellent regulation, UL-rated metal case, and wide input voltage range. Designed for industrial, automation, and power management applications, this compact module delivers 6W of power with dual and single output options, meeting safety and EMI standards. Get fast delivery and trusted quality with our easy online ordering system, making your procurement process quick and hassle-free for any technical or industrial project.
Order your XP Power JWE0624S24 high-efficiency DC-DC converter today and enhance your power management solutions with reliable performance.
