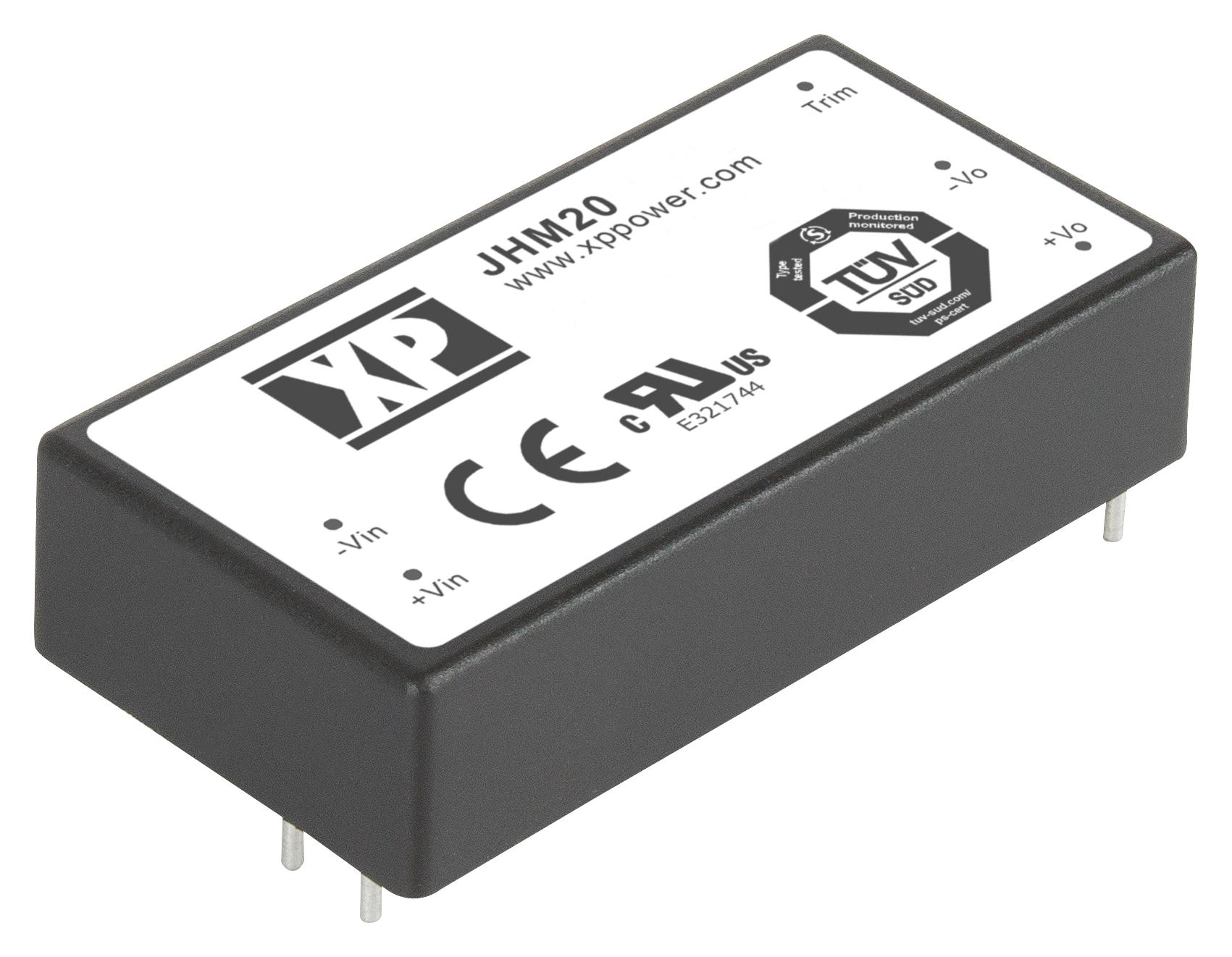

XP POWER JHM2024S05 Medical DC-DC Module
The JHM20 series of DC-DC modules offers a compact power solution designed for medical applications, adhering to international safety standards. These modules provide regulated single and dual output voltages ranging from 5V to 30V DC, with single outputs featuring ±10% trim adjustment. They support a 2:1 input voltage range and have a 2 x 1-inch PCB mount footprint. Certified for medical use, they include reinforced isolation of 4kVAC, 2 x MOPP at 250VAC working voltage, and a patient leakage current of 2.5 microamperes. Compliance includes IEC 60601-1, 3rd edition, with risk management, and they meet EN55011 Class A standards without requiring external components.
XP POWER JHM2024S05 Medical DC-DC Module Specifications:
- Output Power: 20 Watts
- Input Voltage Range: 9-18 VDC, 18-36 VDC, 36-75 VDC
- Output Voltage: 5V to 30VDC, adjustable ±10% on single outputs
- Output Current: Up to 3500mA depending on model
- Isolation Voltage: Reinforced isolation up to 4000 VAC, 2 x MOPP at 250VAC working voltage
- Efficiency: Up to 88%
- Operating Temperature: -40°C to +80°C (derating beyond +60°C)
- Dimensions: 2” x 1” x 0.40” (50.8 x 25.4 x 10.2 mm)
- Weight: approximately 30 grams
- Rise Time: 20 ms, Start Up Delay: 50 ms
- Ripple & Noise: 1% pk-pk, 20 MHz bandwidth
- Certification: IEC 60601-1, EN55011 Class A, UL, CSA, TUV
- Leakage Current: 2.5 microamperes
- Soldering Profile: Peak temperature 260°C, Sn/Cu/Ni materials
Buy the Buy XP Power JHM20 Series DC-DC Converter Part Number JHM2024S05 Online
Secure the XP Power JHM20 series medical-grade DC-DC converter online today for reliable, safety-certified power delivery in medical equipment. Featuring reinforced isolation, adjustable output voltages from 5V to 30V DC, and high efficiency up to 88%, this compact 20W power module is designed for space-constrained applications. Certified under IEC 60601-1 and EN55011 Class A standards, it ensures safety and compliance. With a footprint of just 2 x 1 inches, it’s ideal for medical devices requiring robust power solutions with minimal leakage current and excellent performance in demanding environments.
Get XP Power JHM2024S05 today—compact, medical-grade DC-DC converter with reinforced isolation and adjustable output for reliable medical applications.
