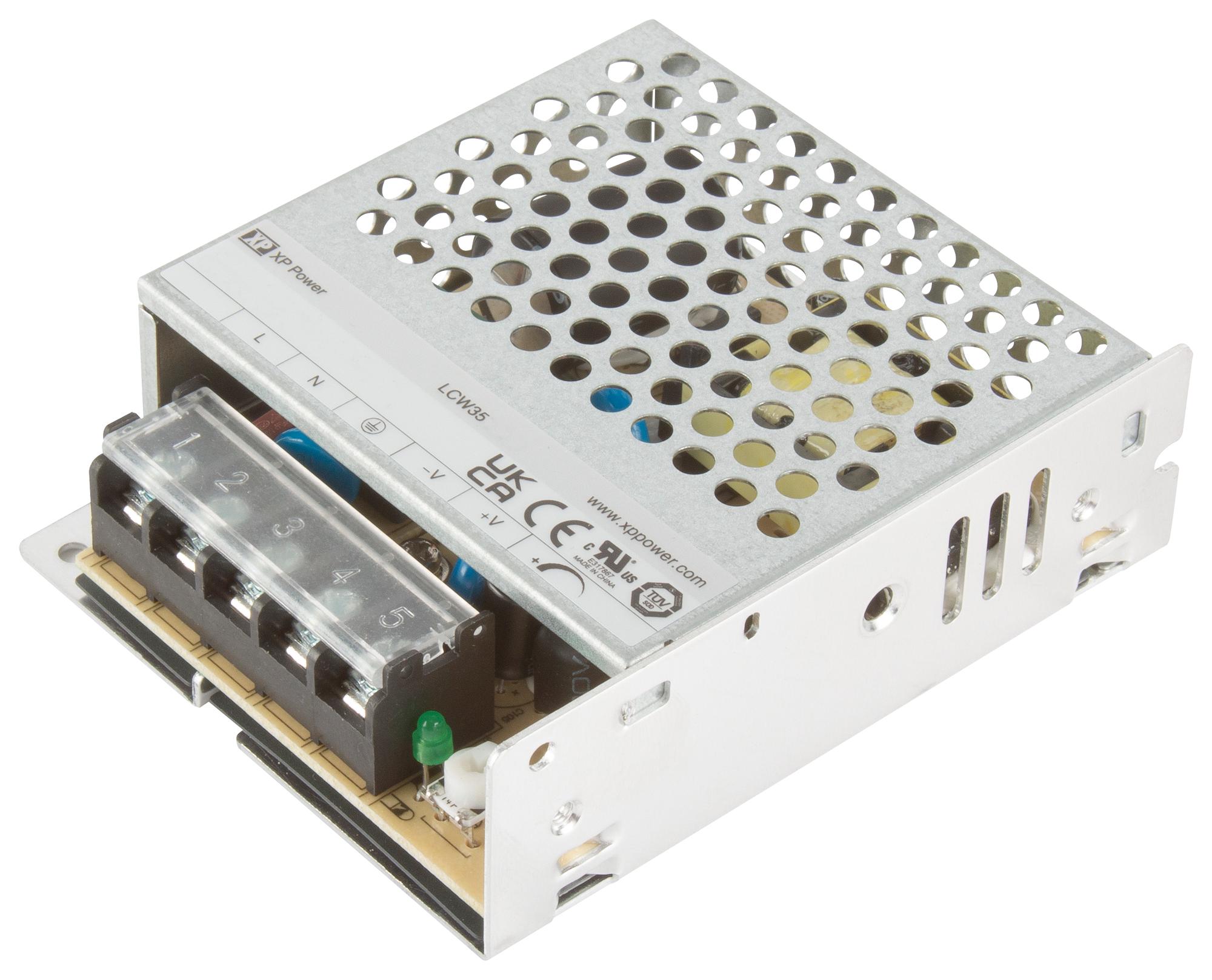

XP POWER LCW35US15 Convection Power Supply
The LCW35 series regulated convection-cooled AC-DC power supplies deliver 35W power in a compact design, suitable for industrial, household, and technological applications. These supplies feature a wide input voltage range of 85-305VAC, adjustable output voltage, and low standby power consumption. They offer protection against short circuit, overcurrent, overvoltage, and overload conditions. Certified for safety standards including UL62368-1 and EN62368-1, they operate efficiently with up to 86% efficiency. Enclosed in an aluminium chassis with vented steel cover, they support temperatures from -30°C to +70°C, include optional conformal coating, and are backed by a 3-year warranty. Dimensions are approximately 99mm x 82mm x 30mm, with integrated connector covers for added durability.
XP POWER LCW35US15 Convection Power Supply Specifications:
- Power Rating: 35W
- Input Voltage Range: 85-305VAC
- Output Voltage Adjustment: +10%
- Efficiency: Up to 86%
- Switching Frequency: 65kHz
- Operating Temperature: -30°C to +70°C
- Dimensions: Approximately 99mm x 82mm x 30mm
- Protection: Short circuit, overcurrent, overvoltage, overload
- Certifications: UL62368-1, EN62368-1, EN60335, EN61558, CE, UKCA
- Case Material: Aluminium chassis with galvanized steel cover
- Conformal Coating: Optional, suffix -E
- Maximum Output Current: 3.5A (for 12V model), 2.5A (for 15V model), 2A (for 24V model), and 4A (for 5V model)
Buy the Buy XP Power LCW35US15 Part Number LCW35US15 Online
Purchase the XP Power convection-cooled power supply online today to ensure reliable, efficient power delivery for industrial, household, and technological systems. This 35W unit features a wide input voltage of 85-305VAC, adjustable output voltage, and advanced protection for short circuit, overcurrent, overvoltage, and overload conditions. Certified to safety standards such as UL62368-1 and EN62368-1, its high efficiency of up to 86%, operating temperature range from -30°C to +70°C, and durable aluminium chassis make it ideal for demanding environments. With integrated connector covers, optional conformal coating, and a 3-year warranty, it guarantees high performance, safety, and longevity for your applications.
Get XP Power LCW35US15 today—built for precision, efficiency, and long-lasting durability in industrial and household applications.
Frequently Asked Questions
Where can I buy XP POWER LCW35US15?
You can click on the BUY or RFQ button to purchase LCW35US15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCW35US15?
You can download the LCW35US15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCW35US15?
XP POWER
