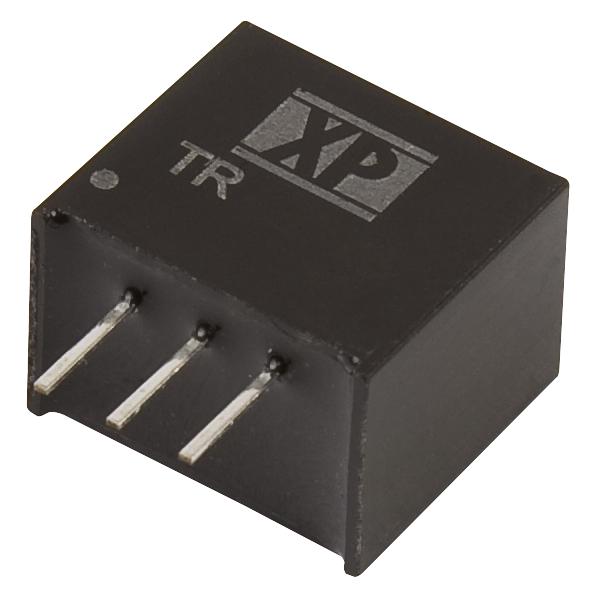

XP POWER TR05S05 Switch Mode Regulator
The TR05S05 is a highly efficient 3-pin switch-mode regulator module delivering 5V output for reliable power management. It supports a wide input voltage range from 4.5V to 28V and offers a maximum efficiency of up to 94%, making it ideal for industrial automation, embedded systems, and electronic devices. The device features continuous short-circuit protection, operates from -40°C to +85°C, and is pin-compatible with LM78MXX series regulators. Its compact SIP package includes robust thermal performance, ensuring durability in demanding environments, with ripple and noise levels as low as 60mV pk-pk.
XP POWER TR05S05 Switch Mode Regulator Specifications:
- Input Voltage Range: 4.5V to 28V
- Output Voltage: 5V
- Output Current: 500 mA
- Efficiency: Up to 94%
- Ripple & Noise: 60mV pk-pk with 10% load
- Operating Temperature: -40°C to +85°C
- Package Style: 3-pin SIP
- Isolation Voltage: Non-isolated
- Switching Frequency: 570 kHz typical
- MTBF: >4 million hours at 25°C
- Case Temperature: Max +100°C
- Cooling: Convection-cooled
- Storage Temperature: -40°C to +125°C
- Dimensions: Compact SIP package, pin pitch 0.014 inches
Buy the Buy Power Management Module Part Number TR05S05 Online
Secure your Power Management Module TR05S05 online today and benefit from its high efficiency, wide input range, and reliable short-circuit protection. This compact 3-pin SIP regulator operates from -40°C to +85°C, making it versatile for various industrial and electronic applications. Its peak efficiency of up to 94% ensures minimal power loss, while the robust design guarantees durability and safety. Perfect for power supply systems, embedded electronics, or automation projects, buy now to ensure dependable power regulation wherever you need it.
Order your Power Management Module TR05S05 today and enhance your power regulation with efficient, reliable performance for industrial and electronic projects.
