XP POWER IFS0105S09 DC-DC Converter
The IFS01 series provides isolated voltage rails suitable for distributed power supply architectures. It features a compact design with high efficiency, offering 1.5kV DC isolation, continuous short circuit protection, and operation over a temperature range of -40°C to +105°C. The series includes a single unregulated output, industry-standard pinout, and UL62368-1 safety approvals. It is available in a SMD DIP package with tape & reel options. The full power output is maintained up to 100°C.
XP POWER IFS0105S09 DC-DC Converter Specifications:
- Input Voltage Range: 4.5V to 5.5V DC
- Output Voltage: 5V or 12V DC (depending on model)
- Efficiency: Up to 90% typical at full load
- Isolation: 1,500 VDC between input and output
- Operating Temperature: -40°C to +105°C
- Full Power Temperature: Up to 100°C
- Case Size: 0.52 x 0.335 x 0.285 inches (13.2 x 8.5 x 7.25 mm)
- Input Ripple: 5 mA pk-pk through 4.7μH inductor and 220μF capacitor
- Switching Frequency: 270–278 kHz
- Isolation Resistance: 10^9 Ω at 500V DC
- Power Density: Approximately 20 W/in³
- Safety Standard: UL 62368-1
- Case Material: Flame-retardant UL94 V-0 plastic
- Soldering: Peak temps <245°C, max duration <60s at 217°C
- Moisture Level: Level 1 (per IPC/JEDEC J-STD-020D.1)

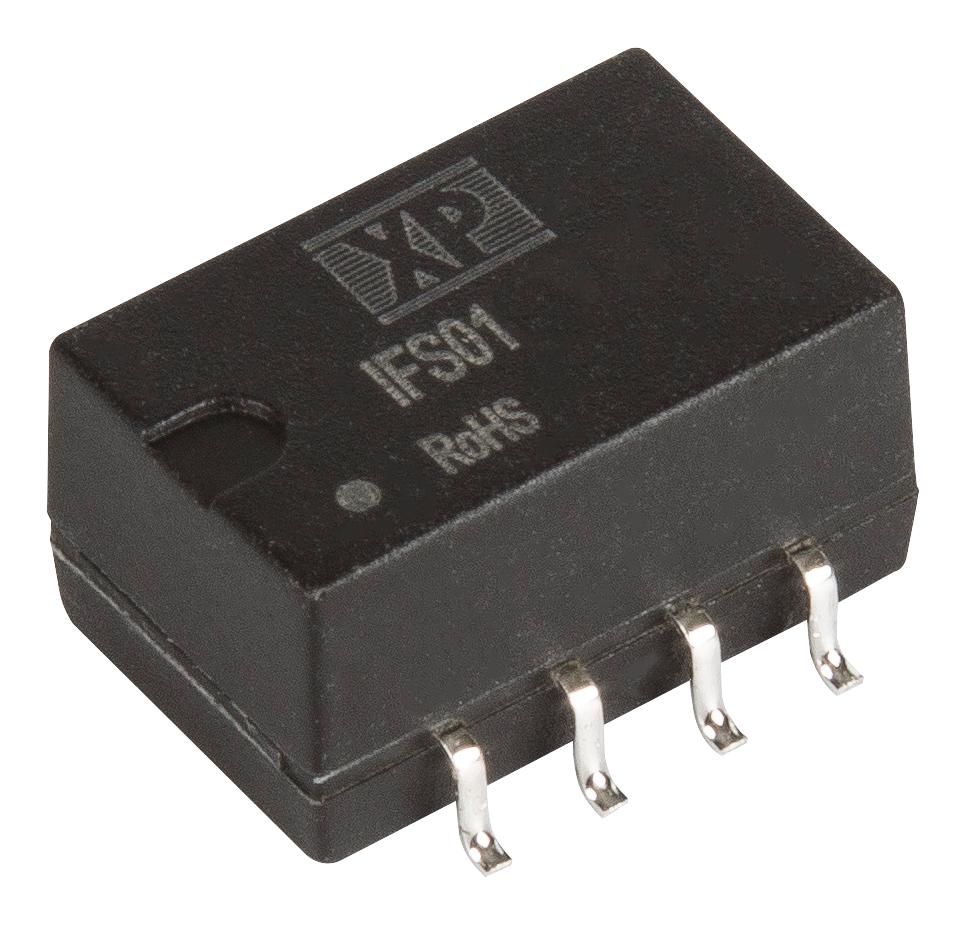

Buy the Buy XP Power Series IFSO1 Part Number IFS0105S09 Online
Experience the reliability of the XP Power Series IFSO1 DC-DC converter. With 1.5kV isolation, high efficiency, and excellent thermal performance, it is ideal for distributed power architectures. Compact in size with UL safety approval, it features continuous short circuit protection, operation from -40°C to +105°C, and tape & reel packaging for easy handling. Whether for industrial, digital, or analog circuits, this converter guarantees dependable power conversion essential for your demanding applications. Purchase online today for fast delivery and peace of mind.
Order your XP Power Series IFSO1 IFS0105S09 today and ensure reliable, isolated power for your distributed power supply projects.
Frequently Asked Questions
Where can I buy XP POWER IFS0105S09?
You can click on the BUY or RFQ button to purchase IFS0105S09 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IFS0105S09?
You can download the IFS0105S09 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IFS0105S09?
XP POWER
