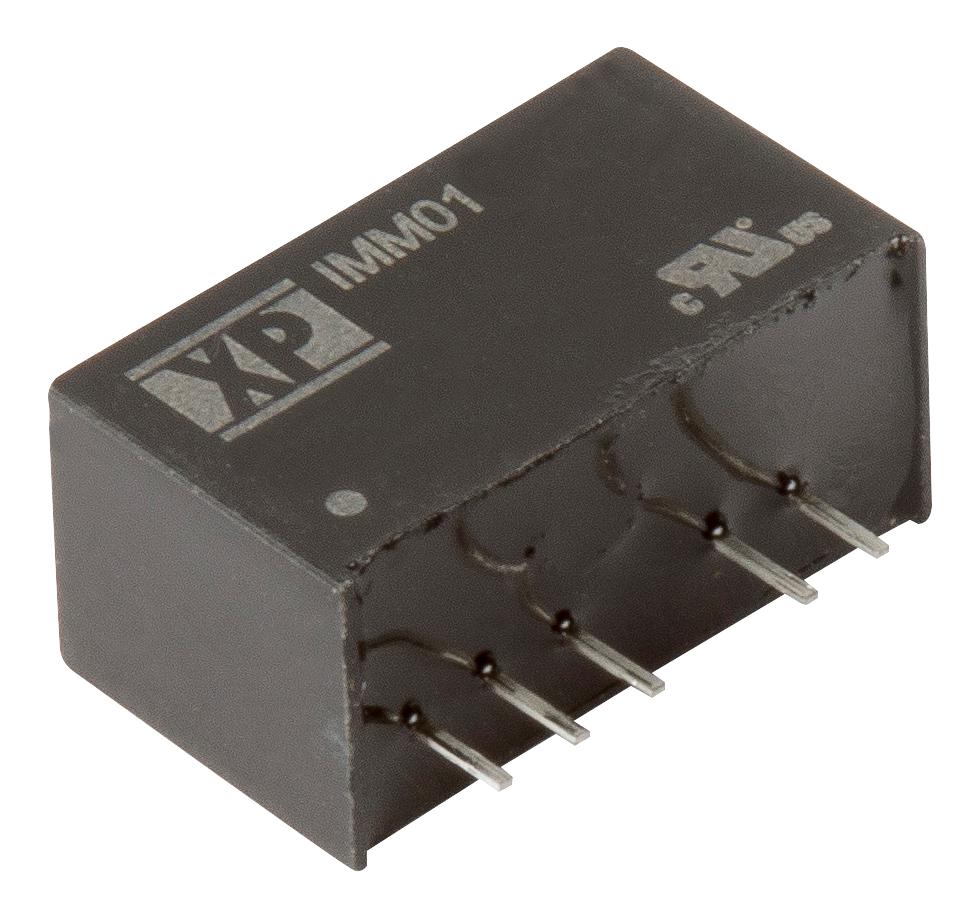

XP POWER IMM0112S3V3 DC-DC Converter
The IMMO1 Series DC-DC Converter by XP Power offers a compact 1-watt design with medical approvals, high reliability, and wide temperature operation from -20°C to +100°C. It features a SIP7 package, 1500 VAC isolation, and full load capability at 60°C ambient temperature. The converter includes single and dual output options, low patient leakage current of 2 μA, and a footprint of just 0.76 x 0.36 x 0.44 inches (19.5 x 9.2 x 11.1 mm). Suitable for medical, industrial, and automation applications, it provides efficient power conversion and robust safety standards.
XP POWER IMM0112S3V3 DC-DC Converter Specifications:
- Input Voltage Range: 3V3 to 45-90V
- Output Voltage Options: 3.3V, 5V, 12V, 15V, 24V, 28V, 30V
- Output Current: 75 mA to 150 mA depending on model
- Isolation: 1500 VAC at 250 VAC working voltage, 1 MOPP
- Operating Temperature: -20°C to +100°C
- Dimensions: 0.76 x 0.36 x 0.44 inches (19.5 x 9.2 x 11.1 mm)
- Weight: 0.008 lbs (3.6 g)
- Leakage Current: 2 μA
- Efficiency: Up to 78%
- Isolation Capacitance: 27 pF
- Switching Frequency: 175 kHz to 7,000 kHz (may enter burst mode at light load)
- MTBF: 1 million hours
- Certifications: Medical approvals, safety standards EN60601-1, CSA, IEC
Buy the XP Power Series DC-DC Converter: IMM0112S3V3
Enhance your power management with this compact 1-watt DC-DC converter designed for medical and industrial applications. It offers wide temperature operation, high isolation of 1500 VAC, low leakage current, and certified safety standards. Ideal for space-constrained environments, its low profile and high efficiency ensure dependable performance for medical devices, automation, and instrumentation. Purchase online now to benefit from reliable power conversion, robust safety features, and a 3-year warranty, delivering peace of mind and superior energy efficiency in your projects.
Buy XP Power IMM0112S3V3 now and experience unmatched reliability and performance in medical and industrial power solutions.
Frequently Asked Questions
Where can I buy XP POWER IMM0112S3V3?
You can click on the BUY or RFQ button to purchase IMM0112S3V3 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IMM0112S3V3?
You can download the IMM0112S3V3 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IMM0112S3V3?
XP POWER
