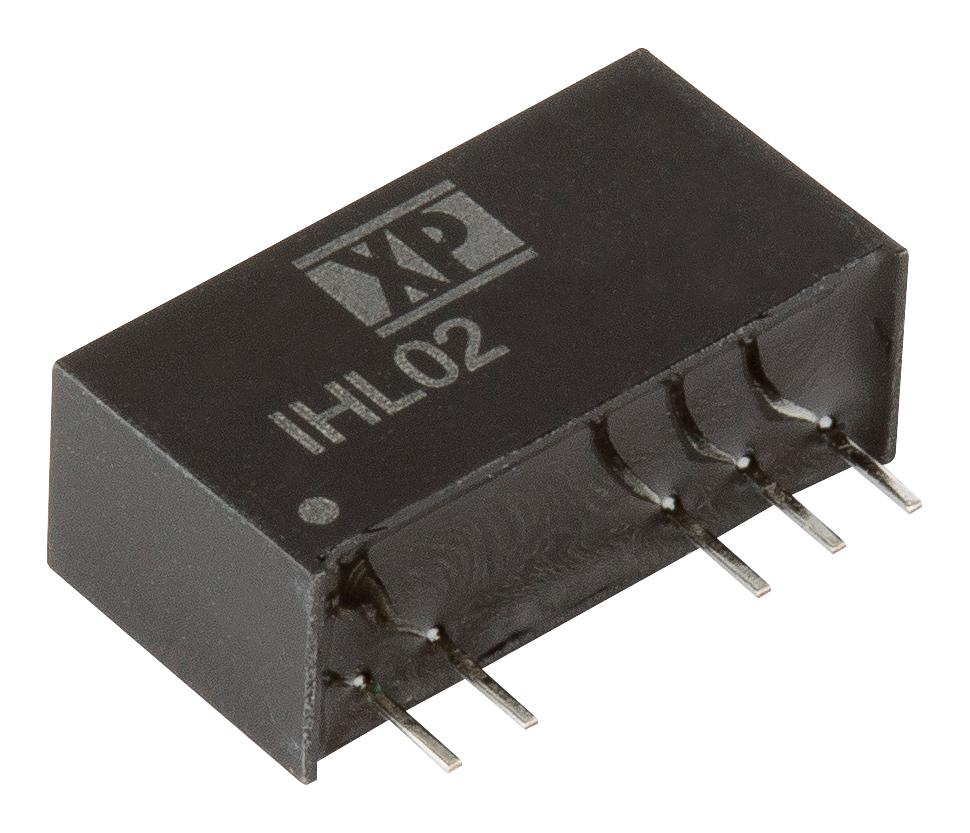

XP POWER IHL0224S09 High Isolation DC-DC Converter
The IHL02 series is a low-cost, high-isolation, 2W DC-DC converter designed for industrial and power management applications. It features bipolar outputs suitable for MOSFET and IGBT gate drives, with a 5.200VDC isolation barrier and a working voltage rated for 250VAC. The converter supports continuous short circuit protection, operates from -40°C to +95°C, and provides full load at 65°C ambient. Its compact SIP7 package with a footprint of approximately 0.77 x 0.28 x 0.39 inches ensures reliable performance in demanding environments, making it ideal for industrial control systems.
XP POWER IHL0224S09 High Isolation DC-DC Converter Specifications:
- Power: 2 Watts
- Isolation: 5200 VDC, Functional test for 60s
- Working Voltage: 250 VAC / 400 VDC
- Output Voltage: 3.3V, 5V, 10.8V, 13.5V, 16.5V, 24V, 36V, 48V (varies by model)
- Output Current: up to 72V nominal at specified load
- Efficiency: 80%
- Operating Temperature: -40°C to +95°C, derates linearly at higher temperatures
- Storage Temperature: -40°C to +125°C
- Case Material: Non-conductive black plastic (UL94V-0)
- Dimensions: 0.77 x 0.28 x 0.39 inches (19.5 x 7.2 x 10.0 mm)
- Weight: Approximately 0.006 lbs (2.7 g)
- Switching Frequency: 50–100 kHz
- Input Voltage Range: 13.5V to 165V
- Ripple & Noise: 150 mV pk-pk
- Short Circuit Protection: Continuous, auto-recovery
- Compliance: EN55032 Class B, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-6, EN61000-4-8
- CMTI: 20 kV/μs
Buy the XP Power IHL0224S09 – Reliable DC-DC Converter for Industrial Applications
Purchase the XP Power IHL0224S09 high isolation DC-DC converter online today and ensure your industrial systems operate efficiently and reliably. With a 2W power rating, bipolar outputs for MOSFET and IGBT drive applications, and an isolation barrier of 5200VDC, this converter guarantees safety and stability. Its compact SIP7 package, operating temperature range from -40°C to 95°C, and features like short circuit auto-recovery make it ideal for demanding industrial environments. Buy now and enhance your power management solutions.
Buy XP Power IHL0224S09 now and experience unmatched reliability and performance in power management systems.
Frequently Asked Questions
Where can I buy XP POWER IHL0224S09?
You can click on the BUY or RFQ button to purchase IHL0224S09 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IHL0224S09?
You can download the IHL0224S09 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IHL0224S09?
XP POWER
