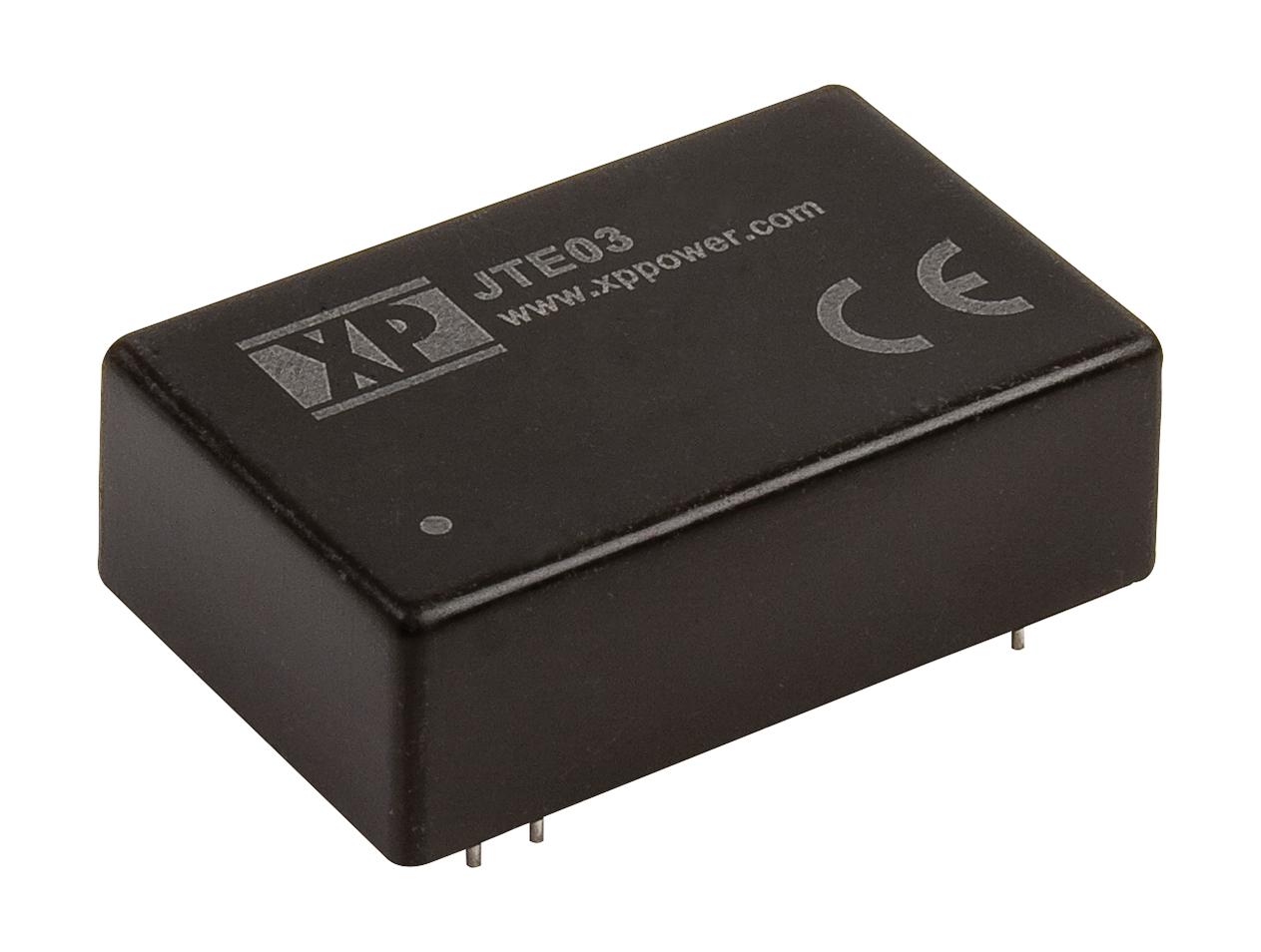

XP POWER JTE0348S24 Industrial DC-DC Converter
The JTE03 series offers ultra-wide 4:1 input voltage ranges in 9V to 36V DC or 18V to 75V DC versions, housed in DIP-24 plastic cases. These power converters feature five single and five dual output voltages with a standard input-to-output isolation of 1,500VDC, optional 3,000VDC. They come with overload and short circuit protection and operate through convection cooling, needing no heat sinks or airflow. Suitable for industrial control, sensing, automation, and safety applications, they function reliably from -40°C to 100°C, with derating starting at 85°C and a maximum case temperature of 100°C.
XP POWER JTE0348S24 Industrial DC-DC Converter Specifications:
- Input Voltage Range: 9-36 VDC or 18-75 VDC
- Output Voltage Options: 3.3V, 5V, 12V, 15V, 24V (single and dual outputs)
- Output Current: up to 3A depending on model
- Isolation Voltage: 1500 VDC standard, optional 3000 VDC
- Efficiency: up to 82%
- Operating Temperature: -40°C to +100°C
- Derating starts at 85°C
- Cooling Method: Convection cooling, no heat sinks needed
- Case Dimensions: 1.25 x 0.80 x 0.40 inches (31.75 x 20.32 x 10.16 mm)
- Input/Output Protections: Overload and short circuit protection
- Certifications: UL, CE, CSA
- Isolation Resistance: 1 GΩ
- Ripple & Noise: 30 mVp-p
- Switching Frequency: 330 kHz
- Weight: Approximately 13 grams
Buy the XP Power Series JTEO3 DC-DC Converter: JTE0348S24
Purchase the XP Power JTEO3 series DC-DC converter online today. Designed for industrial applications, these reliable power modules feature ultra-wide input ranges, high efficiency up to 82%, and robust short circuit and overload protections. Enclosed in durable DIP-24 plastic cases, they operate from -40°C to 100°C, with optional high voltage isolation up to 3000 VDC. Easy to install, convection-cooled, and certified for safety standards, these converters ensure consistent power delivery for sensing, automation, and safety systems in demanding environments.
Get XP Power JTE0348S24 today—built for industrial control, sensing, and automation with high efficiency and robust protection features.
Frequently Asked Questions
Where can I buy XP POWER JTE0348S24?
You can click on the BUY or RFQ button to purchase JTE0348S24 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JTE0348S24?
You can download the JTE0348S24 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JTE0348S24?
XP POWER
