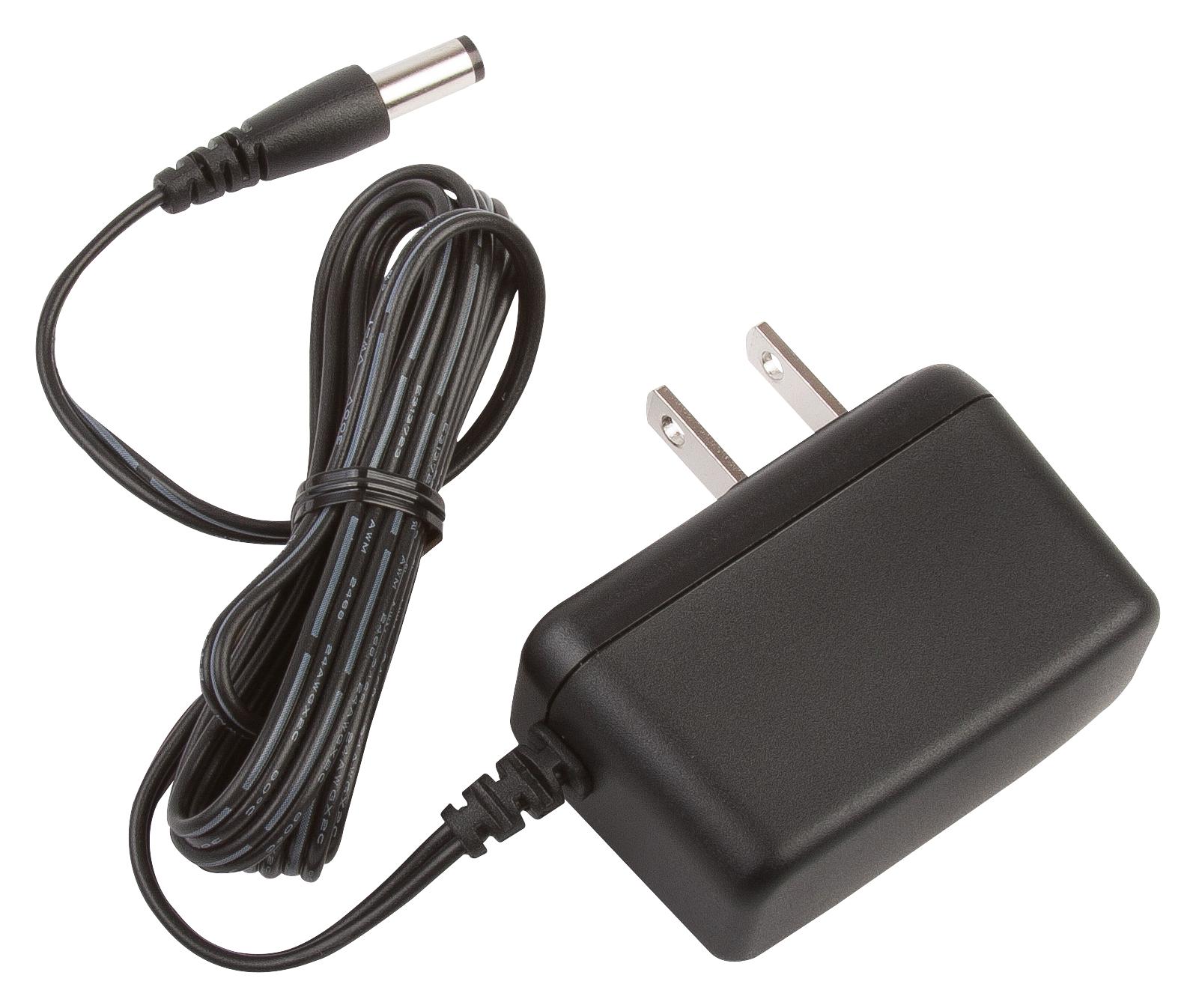

XP POWER VEL18US150USJA Power Adapter
The VEL18 series wall plug adapters meet the latest Energy Efficiency Level VI standards, offering high active mode efficiency and extremely low no-load power consumption. These adapters feature a fixed mains connector with universal input and are suitable for a wide range of cost-sensitive applications while providing industry-leading performance. They comply with safety standards including UL/cUL60950-1, IEC60950-1, TUV EN60950-1, and CCC. The output voltages range from 9V to 24V, with a 5.5mm x 2.1mm x 12mm DC barrel jack connector. The dimensions are 90mm x 34mm x 47.5mm, and they operate within a temperature range of 0°C to 60°C. Suitable for industrial and consumer electronics applications.
XP POWER VEL18US150USJA Power Adapter Specifications:
- Input Voltage: 90-264 VAC
- Input Frequency: 50-63 Hz
- Efficiency: 85% at 25%, 50%, 75%, and 100% load
- Output Voltages: 9V, 12V, 15V, 18V, 24V
- Output Current: 2000 mA (9V), 1500 mA (12V), 1250 mA (15V), 1000 mA (18V), 750 mA (24V)
- Total Regulation: 5%
- Start Up Delay: 4 s
- Operating Temperature: 0°C to 60°C
- Dimensions: 90mm x 34mm x 47.5mm
- Weight: approximately 65g
- Safety Compliance: UL, TUV, IEC, CCC
- Isolation: 3000 VAC input to output
- Efficiency Level: VI
- Cooling Method: Natural convection
Buy the XP Power Series AC-DC Power Supplies: VEL18US150USJA
Enhance your electronic setup with the VEL18 series power adapter from XP Power. Designed for high efficiency and low standby power, this universal input adapter supports output voltages from 9V to 24V and includes a durable 12mm DC barrel jack. Its compact dimensions and safety certifications make it perfect for industrial, commercial, and consumer applications. Easily order online and benefit from fast shipping, industry-leading reliability, and compliance with current energy standards, ensuring optimal performance and long-term durability for your devices.
Get XP Power VEL18US150USJA today—built for efficiency, durability, and reliable power delivery for sensitive applications.
Frequently Asked Questions
Where can I buy XP POWER VEL18US150USJA?
You can click on the BUY or RFQ button to purchase VEL18US150USJA from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VEL18US150USJA?
You can download the VEL18US150USJA datasheet or visit the XP POWER website for support.
Who is the manufacturer of VEL18US150USJA?
XP POWER
