XP POWER LCS100US36 Industrial Power Supply
The LCS series of regulated, convection-cooled AC-DC power supplies offers an efficient and cost-effective solution for various industrial electronics and technology applications. These 100W power supplies feature adjustable output voltage, an LED indicator for power status, low standby power consumption, and functionalities like short circuit, overcurrent, and overvoltage protection. Suitable for auxiliary power sources, security systems, lighting, smart home, office automation, vending, and ticketing applications, they operate over 85-264VAC, withstand 300VAC for 5 seconds, and function reliably from -30°C to +70°C. Compliant with ITE, industrial, and household standards, with a 3-year warranty, these units include integrated connector covers and meet Class B emissions.
XP POWER LCS100US36 Industrial Power Supply Specifications:
- Input Voltage Range: 85-264VAC
- Surge Withstand: 300VAC for 5 seconds
- Input Frequency: 47-50/60Hz
- Efficiency: up to 91%
- Output Power: 100W
- Output Voltages: from 5V to 48VDC
- Operating Temperature: -30°C to +70°C
- Dimensions: 5.08" x 3.82" x 1.18" (129.0 x 97.0 x 30.0 mm)
- Ripple & Noise: <200mV at full load
- Protection Functions: Short circuit, overvoltage, overload
- Certifications: ITE, industrial and household approvals
- EMC: Class B conducted & radiated emissions
- Warranty: 3 years

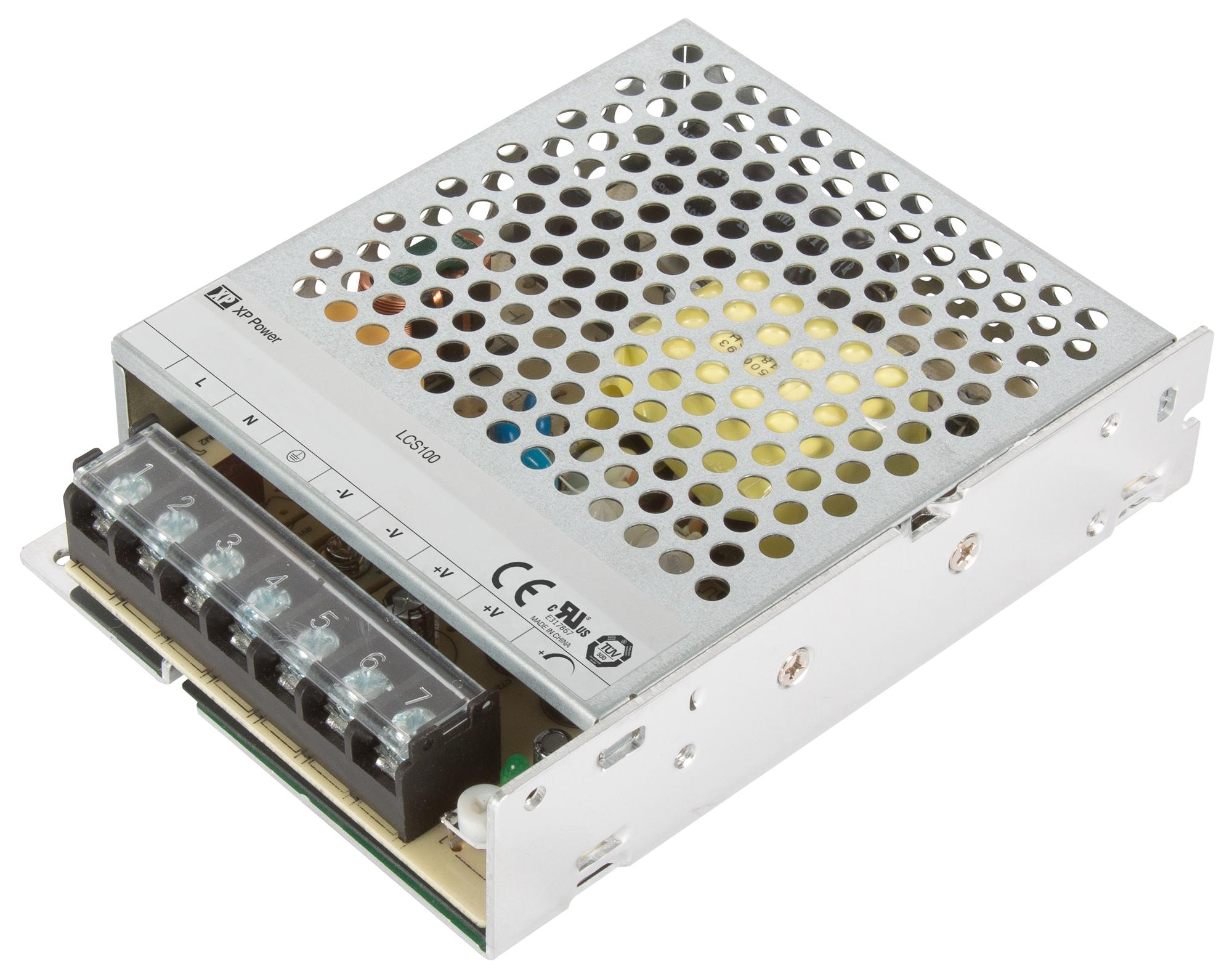

Buy the XP Power Series LCS 100W Power Supply: LCS100US36
Purchase the XP Power LCS100US36 now for a reliable, high-performance 100W convection-cooled power solution suitable for industrial, security, lighting, and automation applications. Its wide input range, adjustable voltage, and protections ensure safety and efficiency. Enjoy the convenience of online ordering, rapid delivery, and a 3-year warranty. Designed to meet strict safety and EMC standards, this power supply guarantees consistent performance in a variety of challenging environments and ensures your systems run smoothly with minimal downtime.
Buy XP Power LCS100US36 now and experience unmatched reliability and efficient power delivery for industrial and automation needs.
Frequently Asked Questions
Where can I buy XP POWER LCS100US36?
You can click on the BUY or RFQ button to purchase LCS100US36 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCS100US36?
You can download the LCS100US36 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCS100US36?
XP POWER
