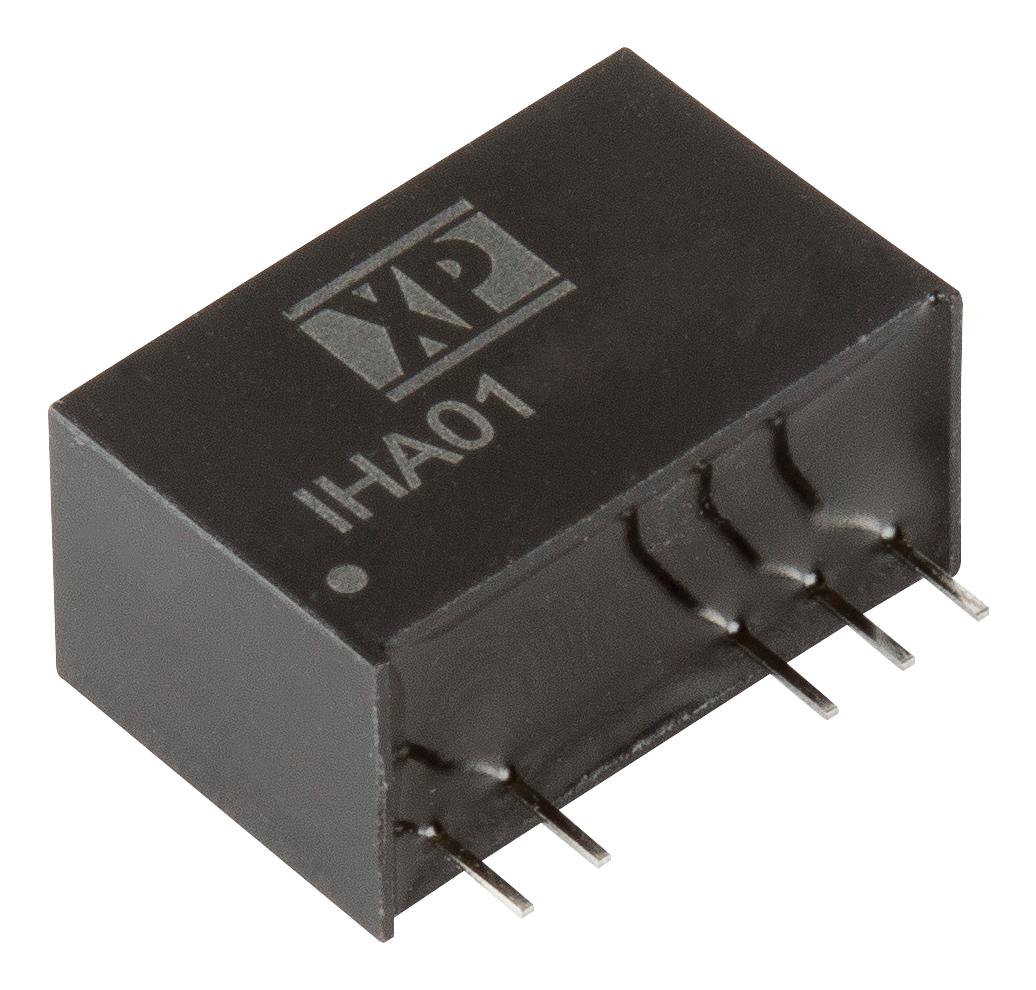

XP POWER IHA0115S09 DC-DC Converter
The IHA01 series is a 1W dual output DC to DC converter housed in a 7-pin SIP package. This converter provides bipolar outputs suitable for MOSFET and IGBT drive applications. It features high isolation with a withstand voltage of 6,000 VDC and an operating voltage of up to 250 VAC. The unit offers single and dual output options, operates reliably within a temperature range of -40°C to 85°C, and can deliver full load at an ambient temperature of 85°C. Its robust design makes it ideal for power management and industrial applications.
XP POWER IHA0115S09 DC-DC Converter Specifications:
- Power: 1 Watt
- Isolation Voltage: 6000 VDC
- Working Voltage: 250 VAC
- Outputs: Single and dual options, bipolar outputs
- Package: SIP7
- Operational Temperature: -40°C to +85°C
- Full Load Temperature: 85°C ambient
- Dimensions: 0.77 x 0.39 x 0.49 inches (19.5 x 9.8 x 12.5 mm)
- MTBF: 2.5 million hours
- Warranty: 3 years
- Input Voltage Range: 10.8-13.2V, 13.5-16.5V, 21.6-26.4V
- Efficiency: Up to 85%
- Ripple & Noise: 120 mVp-p typical
- Conducted & radiated emissions compliance: EN55022 Class B & EN5022 Class 6
- Dimensions and pin tolerances: ±0.014 inches (0.35 mm)
- Pin diameter: 0.020 inches (0.5 mm)
- Storage Temperature: -40°C to +125°C
- Case Temperature: +100°C
- Humidity: 25-35% RH, non-condensing
- Cooling: Natural convection
Buy the XPPower IHAO1 – Reliable DC-DC Converter for Industrial Applications
Experience the superior performance and reliability of the XPPower IHAO1 series DC-DC converter. With high isolation of 6000 VDC, bipolar outputs, and a wide operating temperature range, this 1W power module is ideal for industrial automation, power management, and control applications. Its robust design ensures full load operation at 85°C ambient temperature, while compact dimensions make it suitable for space-constrained environments. Purchase online today to ensure efficient and dependable power conversion in your projects and systems.
Buy XPPower IHAO1 now and experience unmatched reliability and performance in power management for industrial applications.
Frequently Asked Questions
Where can I buy XP POWER IHA0115S09?
You can click on the BUY or RFQ button to purchase IHA0115S09 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IHA0115S09?
You can download the IHA0115S09 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IHA0115S09?
XP POWER
