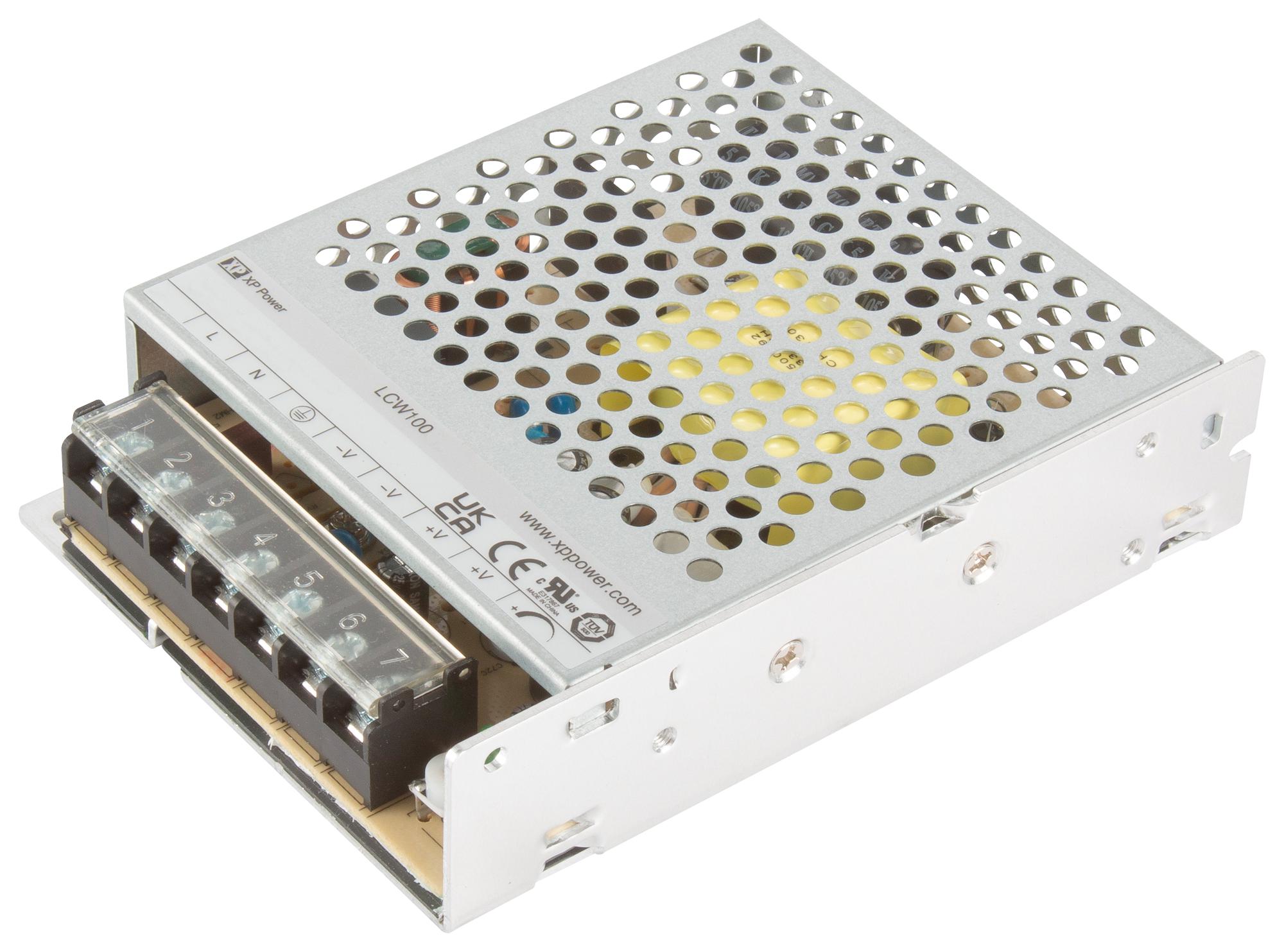

XP POWER LCW100US48 Power Supply Unit
The LCW100 series regulated, convection-cooled AC to DC power supplies deliver a cost-effective, reliable power source for industrial, household, and technology applications. They feature a wide input range of 85-305 VAC, adjustable output voltage, and low stand-by power consumption. Equipped with comprehensive protections including short circuit, overvoltage, overcurrent, and overload safeguards, these 100W supplies meet UL62368-1, EN62368-1, EN60335, EN61558, CE, and UKCA standards. Designed for auxiliary power, security, lighting, smart automation, ticketing, and vending systems, they operate efficiently at up to 90%, with convection cooling, conformal coating options, and a temperature range from -30°C to +70°C. The chassis measures 5.079 x 3.819 x 1.181 inches, ensuring durability and ease of installation.
XP POWER LCW100US48 Power Supply Unit Specifications:
- Input Voltage Range: 85-305VAC
- Output Power: 100W
- Output Voltage Adjustment: +10%
- Efficiency: up to 90%
- Ripple & Noise: 100mV pk-pk for 5V model, 120mV pk-pk for 12V, 15V, 24V, 36V, 48V models
- Operating Temperature: -30°C to +70°C
- Dimensions: 5.079 inches x 3.819 inches x 1.181 inches (129 mm x 97 mm x 30 mm)
- Weight: 0.72 kg
- Certification: UL62368-1, EN62368-1, EN60335, EN61558, CE, UKCA
- Cooling: Natural convection
- Protection Features: Short circuit, overvoltage, overload
- Switching Frequency: 65 kHz
- Case Material: Aluminum chassis with vented galvanized steel cover
- Conformal Coating: Optional, acrylic resin, UL94V-0 rated
- Temperature Tolerance: -30°C to +70°C
Buy the XP Power LCW100US48 – Reliable Power Supply for Industrial Applications
Purchase the XP Power LCW100US48 power supply online today to ensure reliable, efficient power for industrial, security, and automation systems. Designed with convection cooling and protections, this 100W unit provides stable output voltage with up to 90% efficiency. Its wide input voltage range from 85 to 305VAC and operating temperature from -30°C to +70°C make it suitable for various environments. The durable aluminum chassis and optional conformal coating ensure long-lasting performance, while certifications guarantee safety compliance for household and industrial use. Order now for fast, secure delivery.
Get XP Power LCW100US48 today—built for efficient, convection-cooled power delivery in industrial, security, and automation systems.
Frequently Asked Questions
Where can I buy XP POWER LCW100US48?
You can click on the BUY or RFQ button to purchase LCW100US48 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCW100US48?
You can download the LCW100US48 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCW100US48?
XP POWER
