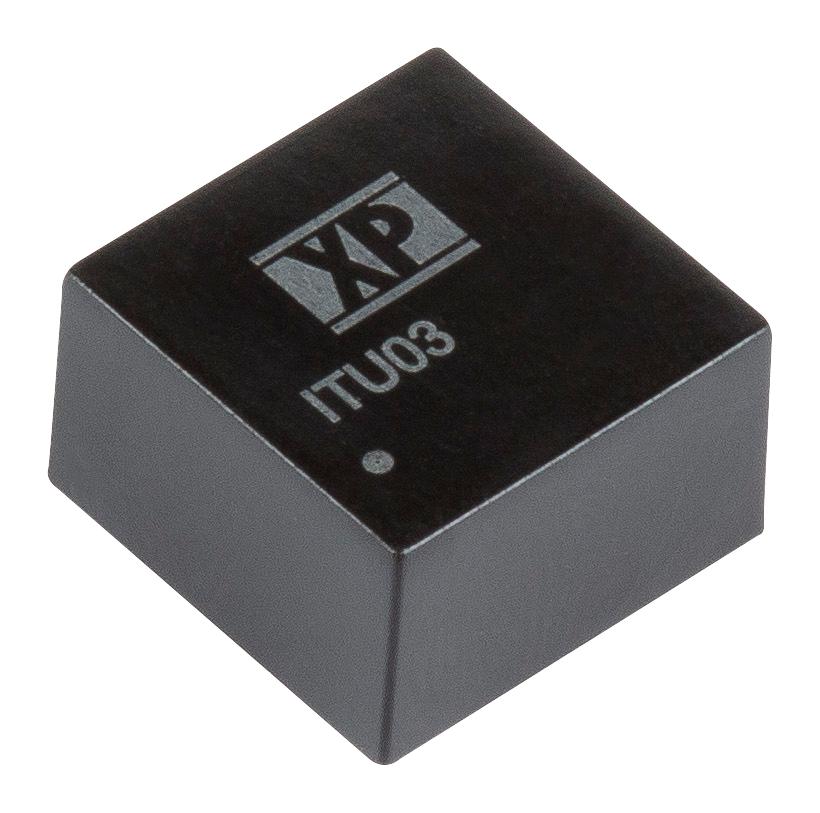

XP POWER ITU0312D12 DC-DC Converter
The ITU series offers a compact 3W DC-DC converter with wide input voltage ranges and regulated outputs from 3.3 to 30VDC. Encapsulated in a durable DIP8 package, it provides 1% regulation accuracy, high efficiency up to 84%, and 1.6kVDC isolation. Features include remote On/Off, short circuit protection, and operation from -40°C to +80°C. Suitable for industrial applications, it guarantees reliability with a mean time between failure over 820,000 hours, backed by a 3-year warranty, and complies with EN55032 standards.
XP POWER ITU0312D12 DC-DC Converter Specifications:
- Input Voltage Range: 4.5 to 18V, 9 to 36V, 18 to 75VDC
- Output Power: 3 Watts
- Output Voltage: 3.3V to 30VDC, regulated within 1%
- Output Current: up to 700mA depending on model
- Isolation: 1.6kVDC between input and output
- Efficiency: up to 84%
- Operating Temperature: -40°C to +80°C, full power up to +70°C
- Dimensions: 0.55 x 0.55 x 0.32 inches (14.0 x 14.0 x 8.1 mm)
- Case Material: Non-conductive plastic
- Protection Features: Short circuit, remote On/Off control
- Compliance: EN55032 Emissions, safety certifications including CE and UKCA
- MTBF: Greater than 820,000 hours (MIL-HDBK-217F)
Buy the Buy XP Power DC-DC Converter Part Number ITU0312D12 Online
Purchase the XP Power DC-DC Converter model ITU0312D12 online today to benefit from its compact design, wide input voltage range, and high efficiency of up to 84%. Ideal for industrial applications, this 3W module features regulated outputs from 3.3V to 30VDC, 1% regulation accuracy, and 1.6kVDC isolation for safe operation. It includes remote On/Off, short circuit protection, and operates reliably from -40°C to +80°C. Backed by a 3-year warranty, this converter guarantees durability and optimal performance for your power needs.
Order your XP Power SeriesITU0312D12 3W DC-DC Converter today and ensure reliable power regulation for your industrial projects.
Frequently Asked Questions
Where can I buy XP POWER ITU0312D12?
You can click on the BUY or RFQ button to purchase ITU0312D12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ITU0312D12?
You can download the ITU0312D12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ITU0312D12?
XP POWER
