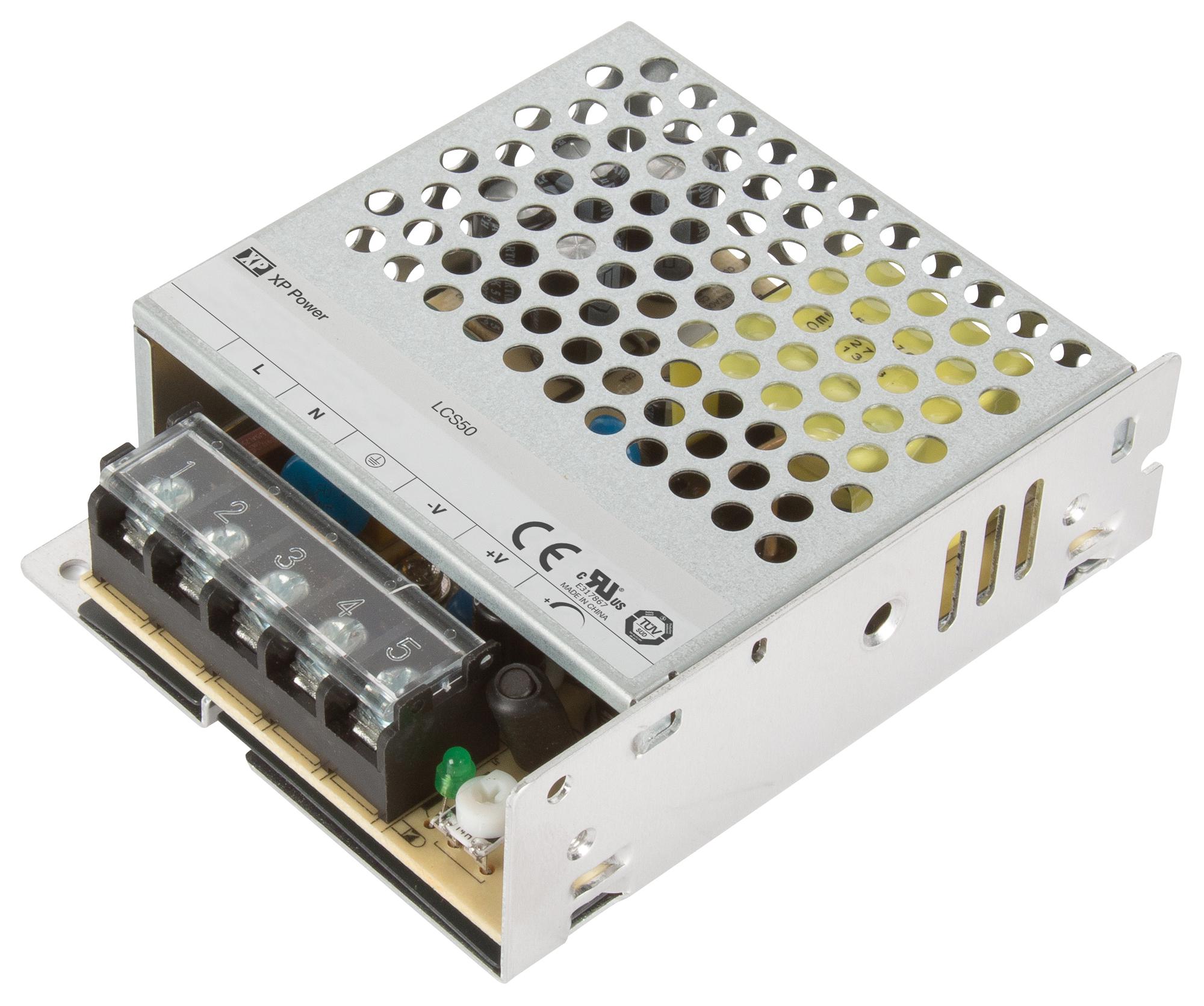

XP POWER LCS50US36 Power Supply
The LCS series of regulated, convection-cooled AC-DC power supplies provides a reliable and energy-efficient solution for industrial electronics and technological devices. With 50W output power, they feature adjustable voltage, a power on LED, low standby power consumption, and protection features including short circuit, overload, and overvoltage safeguards. Suitable for applications like security systems, lighting, smart home, and Vending, these units meet industrial, household, and ITE standards, operate over 85-264VAC, withstand 300VAC for 5 seconds, and function between -30°C and +70°C, backed by a 3-year warranty.
XP POWER LCS50US36 Power Supply Specifications:
- Input Voltage Range: 85-264VAC, withstands 300VAC for 5s
- Output Power: 50W
- Output Voltage Range: 5V to 48VDC (adjustable)
- Efficiency: up to 90%
- Operating Temperature: -30°C to +70°C
- Dimensions: 3.89" x 3.23" x 1.18" (99.0 x 82.0 x 30.0 mm)
- Protection: Short circuit, overvoltage, overload
- Approvals: Industrial, household, and ITE standards
- Features: Power on LED, low standby power, integrated connector cover
- Certifications: Class B emissions, conformal coating option available
- Surge withstand: 300VAC for 5s
- Switching Frequency: 65 kHz
- Environmental Ratings: Natural convection cooling, humidity 5-90% RH, altitude up to 5000m
Buy the XP Power Series LCS 50W AC-DC Power Supply: LCS50US36
Secure your XP Power Series LCS50US36 power supply online today and equip your projects with a dependable 50W solution. Designed for efficiency and reliability, this convection-cooled unit features adjustable output voltage, low standby power, and comprehensive protections including short circuit, overvoltage, and overload safeguards. Ideal for industrial, household, and security applications, it operates over a wide voltage range of 85-264VAC and withstands surges up to 300VAC for 5 seconds. With a dimension of approximately 99mm x 82mm x 30mm, the unit offers seamless integration, meets Class B emissions standards, and includes a 3-year warranty to ensure long-term performance and peace of mind.
Order your XP Power Series LCS50US36 convection-cooled power supply today and ensure your industrial and household systems operate with reliable efficiency.
Frequently Asked Questions
Where can I buy XP POWER LCS50US36?
You can click on the BUY or RFQ button to purchase LCS50US36 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCS50US36?
You can download the LCS50US36 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCS50US36?
XP POWER
