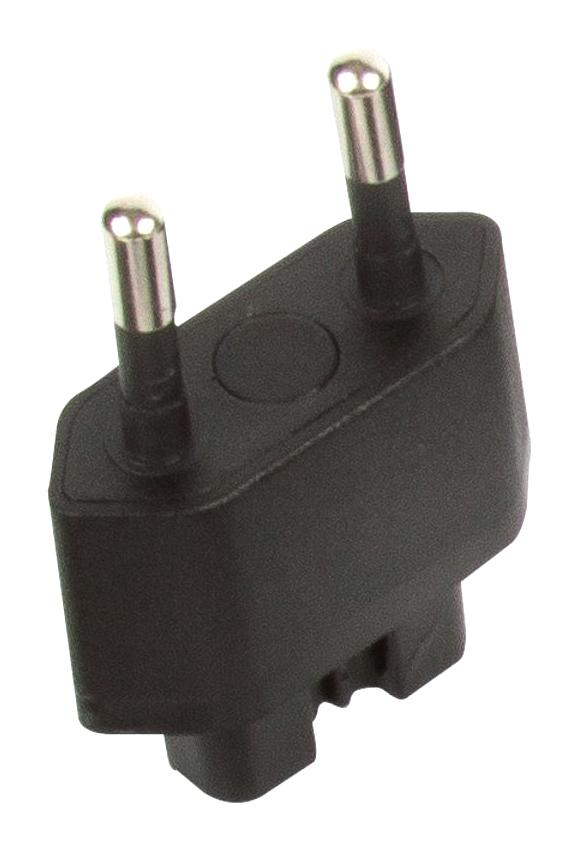

XP POWER AMFPLUGEU Medical Power Supply
The AMF series includes 8W external AC-DC power supplies designed for medical and industrial applications. These wall plug adaptors feature energy efficiency level VI compliance, low no-load power consumption, and IP22 ingress protection. They support input voltages from 80 to 264VAC and offer output voltages ranging from 5V to 24VDC with currents up to 2.5A. Their compact dimensions are 3.56 by 1.32 by 2.3 inches, making them suitable for home healthcare, diagnostic, and industrial use, with certifications for safety and EMC emissions.
XP POWER AMFPLUGEU Medical Power Supply Specifications:
- Input Voltage: 80 to 264VAC
- Input Frequency: AT
- Input Current: Typical 63mA at 230VAC
- Inrush Current: 70A
- Power Factor: EN61000-3-2, class A
- No Load Power Consumption: Typical 0.3W
- Output Voltage: 5V, 9V, 12V, 15V, 18V, 24V
- Output Current: Up to 2A (2500mA for 5V, 2000mA for 9V, etc.)
- Dimensions: 3.56 inches x 1.32 inches x 2.3 inches (90.5mm x 33.5mm x 58.5mm)
- Efficiency: Up to 88.3%
- Ingress Protection: IP22
- Isolation: 4000VAC
- Switching Frequency: 24kHz
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -20°C to +85°C
- Operating Humidity: 90% RH
- Vibration: 10 to 300 Hz
- Shock: 1m drop onto concrete
- Certifications: UL, IEC60601-1-11, EN62368-1, cUL, CSA, UKCA
- Cooling: Natural convection
- Life Expectancy: Mean Time Between Failures 200,000 hours
- Weight: 160g
Buy the XP Power AMF18 – Reliable Medical and Industrial Power Supply for Healthcare Applications
Order the XP Power AMF18 medical power supply online today to ensure reliable performance for healthcare, diagnostic, and industrial applications. With certifications compliant with safety and EMC standards, this compact, efficient power adapter offers a voltage range from 5V to 24VDC, supporting high active mode efficiency and low no-load consumption. Its IP22 ingress protection and compact size allow seamless integration into various medical devices and industrial systems, backed by a 3-year warranty for peace of mind. Buy online now for fast delivery and trusted quality.
Get XP Power AMF18 today—built for precision and long-lasting durability in medical and industrial environments.
Frequently Asked Questions
Where can I buy XP POWER AMFPLUGEU?
You can click on the BUY or RFQ button to purchase AMFPLUGEU from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part AMFPLUGEU?
You can download the AMFPLUGEU datasheet or visit the XP POWER website for support.
Who is the manufacturer of AMFPLUGEU?
XP POWER
