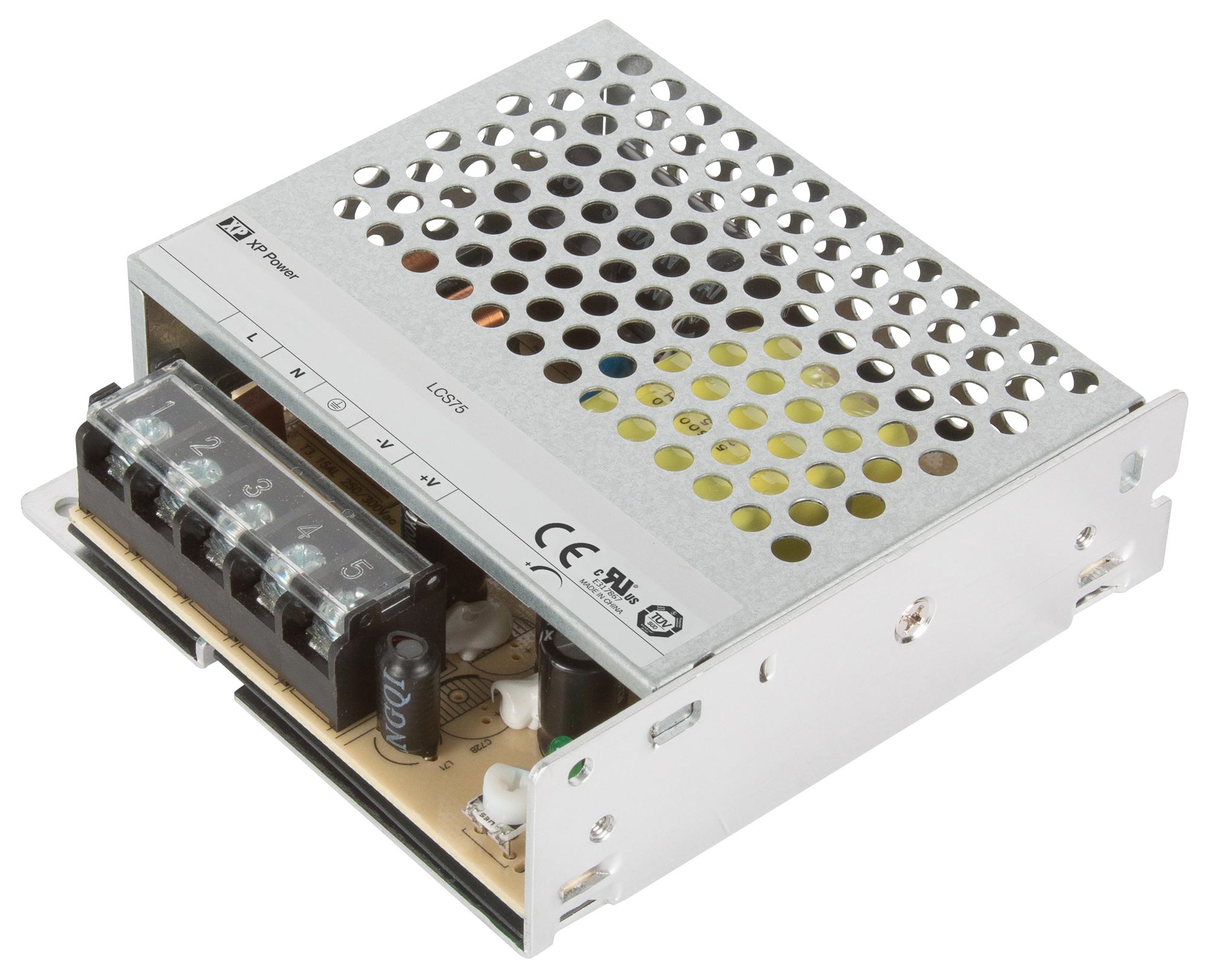

XP POWER LCS75US12 Power Supply
The LCS series of convection-cooled AC-DC power supplies deliver a regulated output with features such as adjustable voltage, a power 'ON' indicator LED, low standby power consumption, and protections including short circuit, over current, and over voltage. These 75W power supplies are suitable for use in industrial electronics, security systems, lighting control, smart home and office automation, ticketing, and vending applications. They are designed to operate within an input voltage range of 85-264VAC, withstand 300VAC for 5 seconds, and function reliably in temperatures from -30°C to +70°C. They come with ITE, industrial, and household approvals, feature integrated connector covers, and comply with Class B conducted and radiated emission standards. They also include a three-year warranty.
XP POWER LCS75US12 Power Supply Specifications:
- Input Voltage Range: 85-264VAC
- Input withstand voltage: 300VAC for 5 seconds
- Output power: 75W
- Output voltage: from 5V to 48VDC depending on model
- Maximum Output Current: from 1.64A to 6.0A depending on model
- Operating Temperature: -30°C to +70°C
- Efficiency: up to 91%
- Dimensions: 3.89" x 3.82" x 1.18" (99.0mm x 97.0mm x 30.0mm)
- Features: adjustable voltage, power 'ON' LED, low standby power, short circuit, overcurrent, overvoltage protections
- Standards: ITE, industrial, household approvals, Class B emission compliance
- Mechanical features: integrated connector cover, aluminium chassis with vented steel cover
- Cooling method: natural convection
- Warranty: 3 years
Buy the XP Power Series 75W Convection Cooled Power Supply: LCS75US12
Purchase the XP Power Series 75W convection-cooled power supply LCS75US12 online today and experience reliable, energy-efficient power delivery for your industrial automation, security systems, and household applications. With adjustable voltages, multiple protections, a robust design, and a three-year warranty, this power supply ensures seamless operation in various environments. Its wide input voltage range and compliance with emission standards make it ideal for professional and commercial electronics projects. Get yours today and power your critical systems with confidence and convenience.
Order your XP Power Series 75W convection-cooled power supply LCS75US12 today and ensure reliable, efficient power for your industrial and automation projects.
Frequently Asked Questions
Where can I buy XP POWER LCS75US12?
You can click on the BUY or RFQ button to purchase LCS75US12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCS75US12?
You can download the LCS75US12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCS75US12?
XP POWER
