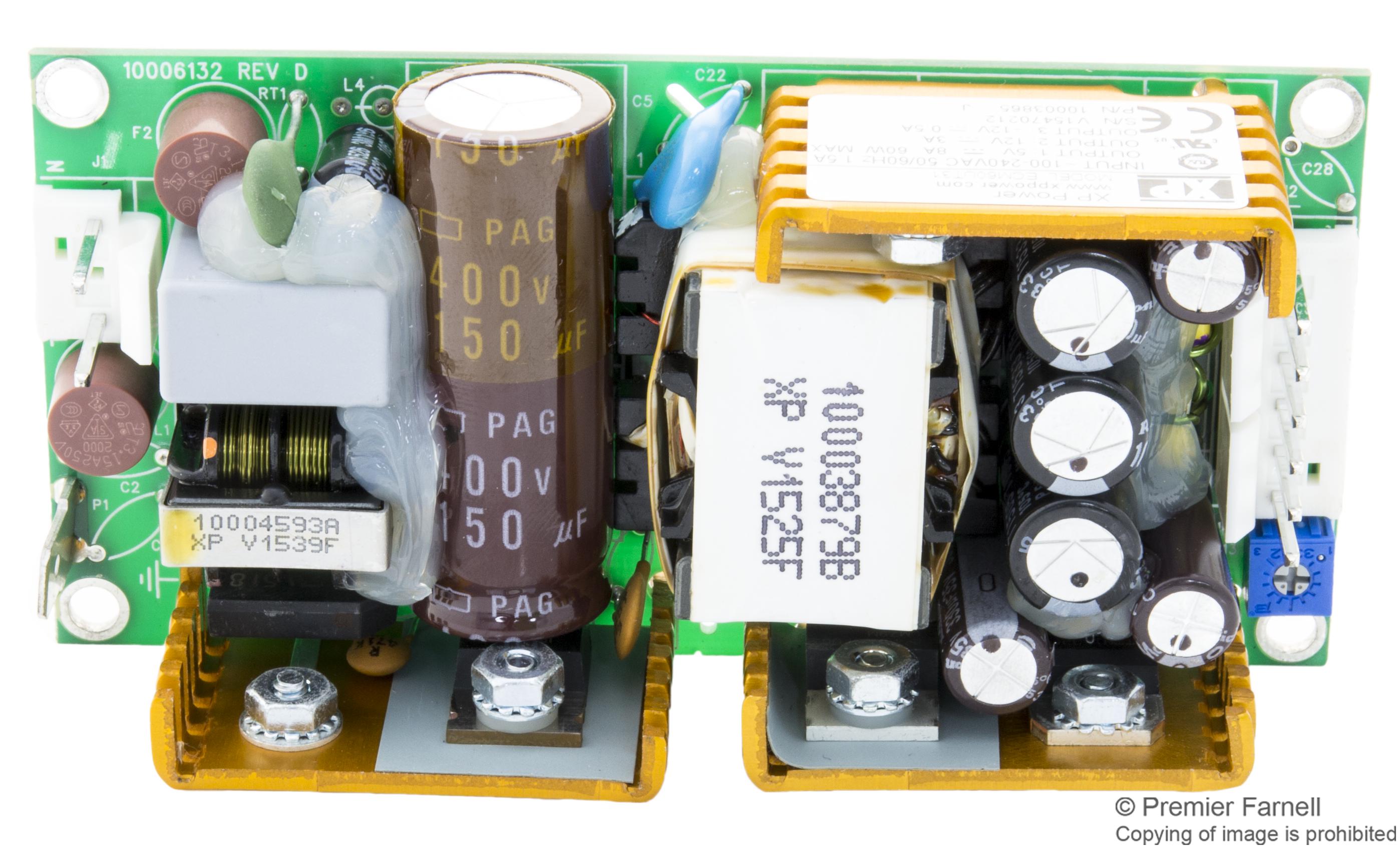

XP POWER ECM60UT31 power supply module
This compact power supply module is convection cooled and features IT and medical approvals. It is designed with class I and II construction and meets Level B conducted emissions standards. Suitable for medical applications, this product guarantees reliable performance in safety-critical environments. Please note that high market demand may cause longer lead times, and discounts are not applicable.
XP POWER ECM60UT31 power supply module Specifications:
- Size: 2.5 inches x 4.5 inches x 1.2 inches
- Input Voltage: 90-264 VAC
- Input Frequency: 47-63 and 440 Hz
- Output Power: 100 W
- Operating Temperature: 0°C to +70°C with derating
- Leakage Current: Max 125 pA at 115 VAC, 210 µA at 230 VAC
- EMC Compliance: EN55032 Level B, EN60601-1 (medical), Level B conducted emissions
- Efficiency: 80-85%
- Protection: Overvoltage, overload, short circuit
- Approvals: IEC60601-1, EN60601, UL 62368-1
- Construction: Class I and II
- Cooling: Convection and optional forced cooling
Buy the Buy Power Supply Module ECM60UT31 Part Number ECM60UT31 Online
Secure your medical and industrial power needs with the ECM60UT31 Power Supply Module. Compact and convection-cooled, it offers reliable performance with medical approvals, low leakage current, and compliance with safety standards. Designed to operate from 90-264 VAC at 50/60 Hz, its efficiency reaches 85%, reducing heat. Perfect for critical applications, it includes comprehensive protections and meets EN55032 Level B emissions standards. Buy online today for quick delivery and peace of mind in your engineering projects.
Buy Power Supply Module ECM60UT31 now and experience unmatched reliability and medical-grade performance in critical environments.
Frequently Asked Questions
Where can I buy XP POWER ECM60UT31?
You can click on the BUY or RFQ button to purchase ECM60UT31 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ECM60UT31?
You can download the ECM60UT31 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ECM60UT31?
XP POWER
