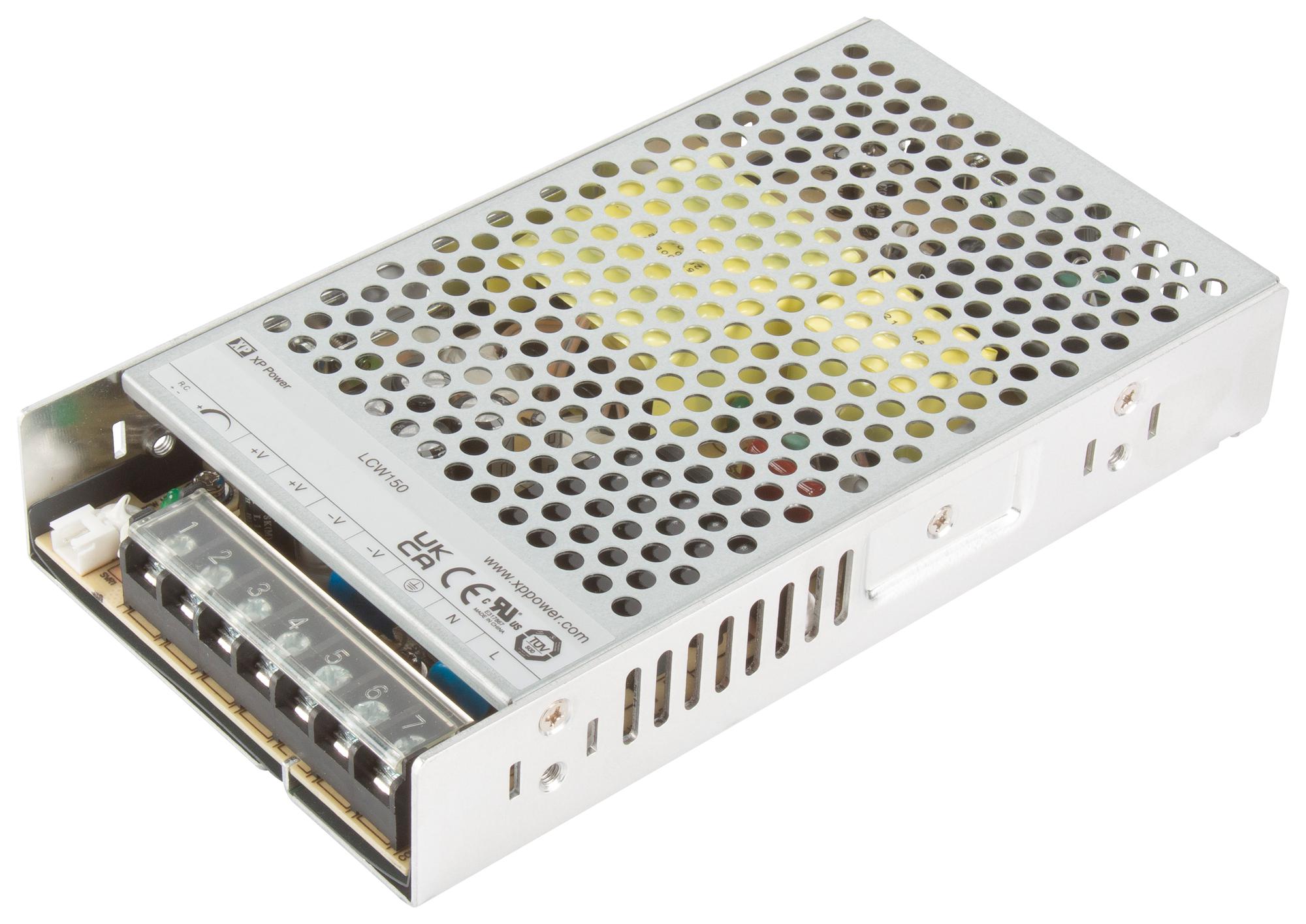

XP POWER LCW150PS48 Power Supply
The LCW150 series 150W regulated power supply is convection cooled, ideal for industrial, household, and tech applications. Featuring wide AC input from 85 to 305VAC, active PFC, adjustable output voltage, and remote on/off control, it ensures efficient, reliable power. Protections include short circuit, overcurrent, overload, and overvoltage. Operating temperature ranges from -30°C to +70°C. Its robust aluminium chassis measures 7.05 x 3.89 x 1.18 inches (179 x 99 x 30 mm) with optional conformal coating. It has a switching frequency of 65kHz, efficiency up to 88%, and a 3-year warranty, suitable for security, lighting, smart home, and vending systems.
XP POWER LCW150PS48 Power Supply Specifications:
- Input Voltage Range: 85-305VAC
- Output Power: 150W
- Output Voltage Adjustment: Yes
- Output Voltage Range: 12V to 48VDC depending on model
- Efficiency: Up to 88%
- Operating Temperature: -30°C to +70°C
- Dimensions: 7.05 x 3.89 x 1.18 inches (179 x 99 x 30 mm)
- Protections: Short circuit, overcurrent, overload, overvoltage
- Switching Frequency: 65kHz
- Certifications: UL62368-1, EN62368-1, EN60335, EN61558, CE, UKCA
- Construction: Aluminium chassis with vented galvanized steel cover
- Conformal Coating: Optional, UL94V-0 rated
- Remote On/Off Control: Yes
- Power Factor Correction: Active
- Ripple & Noise: Up to 200mV depending on model
- Operating Temperature: -30°C to +70°C
- Storage Temperature: -40°C to +85°C
- Weight: Approximately 0.54kg (1.19 lbs)
Buy the Buy XP Power LCW150 Series Part Number LCW150PS48 Online
Purchase the reliable XP Power LCW150 Series power supply online today for your industrial, household, or technological applications. This 150W convection cooled unit offers wide input voltage compatibility from 85 to 305VAC, boasting an impressive efficiency of up to 88%. Featuring adjustable output voltage, active PFC, remote on/off, and comprehensive protections including short circuit, overload, and overvoltage, it ensures operational safety and longevity. Its galvanised steel casing and optional conformal coating make it durable in various environments, while its compact size of 7.05 x 3.89 x 1.18 inches supports easy integration into your systems. Backed by a 3-year warranty, this power supply is ideal for security, lighting control, vending, and smart home applications. Purchase online now and guarantee your system’s dependable performance with sophisticated features and certifications for safety and efficiency.
Order your XP Power LCW150PS48 convection cooled power supply today and ensure reliable, efficient power delivery for your industrial or household projects.
Frequently Asked Questions
Where can I buy XP POWER LCW150PS48?
You can click on the BUY or RFQ button to purchase LCW150PS48 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCW150PS48?
You can download the LCW150PS48 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCW150PS48?
XP POWER
