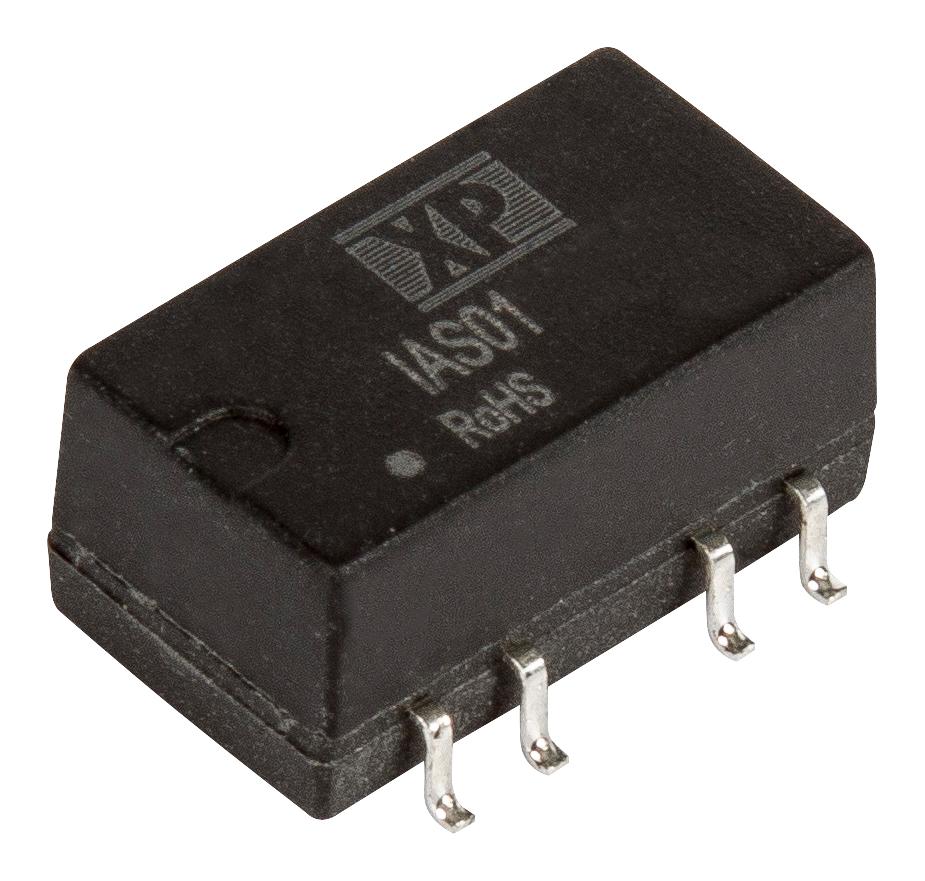

XP POWER IAS0124D15 Dual Output Power Supply
The IAS01 series DC-DC power supply provides an ideal solution for isolating voltage rails in distributed power architectures, such as in analog, digital, data, and relay circuits. Suitable for industrial electronics, instrumentation, and technological applications, this model offers unregulated ±15V dual outputs with a 24V input voltage. It features an input voltage range of ±10%, comes in an SMD10 DIP package with an industry-standard pinout, and includes continuous short circuit protection. The power supply complies with UL 62368-1 safety standards, operates reliably within a temperature range of -40°C to +105°C, and maintains full load performance up to +100°C. It is backed by a 3-year warranty.
XP POWER IAS0124D15 Dual Output Power Supply Specifications:
- Input Voltage: ±10% around 24V DC
- Output Voltage: ±15V (dual outputs)
- Output Current: 18mA (initial), up to 241mA (max)
- Isolation Voltage: 1500/3000V DC (optional with -H suffix)
- Operating Temperature Range: -40°C to +105°C, full load to +100°C
- Efficiency: 82-85%
- Input Ripple: 26.4mV pk-pk
- Switching Frequency: 20 MHz
- Dimensions: 0.600" x 0.335" x 0.285" (15.24 x 8.50 x 7.25 mm)
- Safety Certifications: UL62368-1, CE, UKCA
- Case Material: Black flame-retardant UL94V-0 plastic
- Pin Material: Phosphor bronze
- Water Wash: Non-soaking with de-ionised water, dry thoroughly
- Weight: approximately 1.45 g
Buy the XP Power Series IAS01 DC-DC Power Supply: IAS0124D15
Secure your electronic projects with the reliable XP Power Series IAS0124D15 dual output power supply, featuring unregulated ±15V outputs, high efficiency, and UL safety approval. This compact module operates across a wide temperature range of -40°C to +105°C, providing stable performance in industrial and instrumentation applications. Its robust design includes continuous short circuit protection and industry-standard pinout, making it easy to integrate. Purchase online today to ensure your systems are powered efficiently and safely with this high-quality power supply backing your critical operations.
Order your XP Power Series IAS0124D15 today and ensure reliable digital and analog power isolation for your critical electronic systems.
Frequently Asked Questions
Where can I buy XP POWER IAS0124D15?
You can click on the BUY or RFQ button to purchase IAS0124D15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IAS0124D15?
You can download the IAS0124D15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IAS0124D15?
XP POWER
