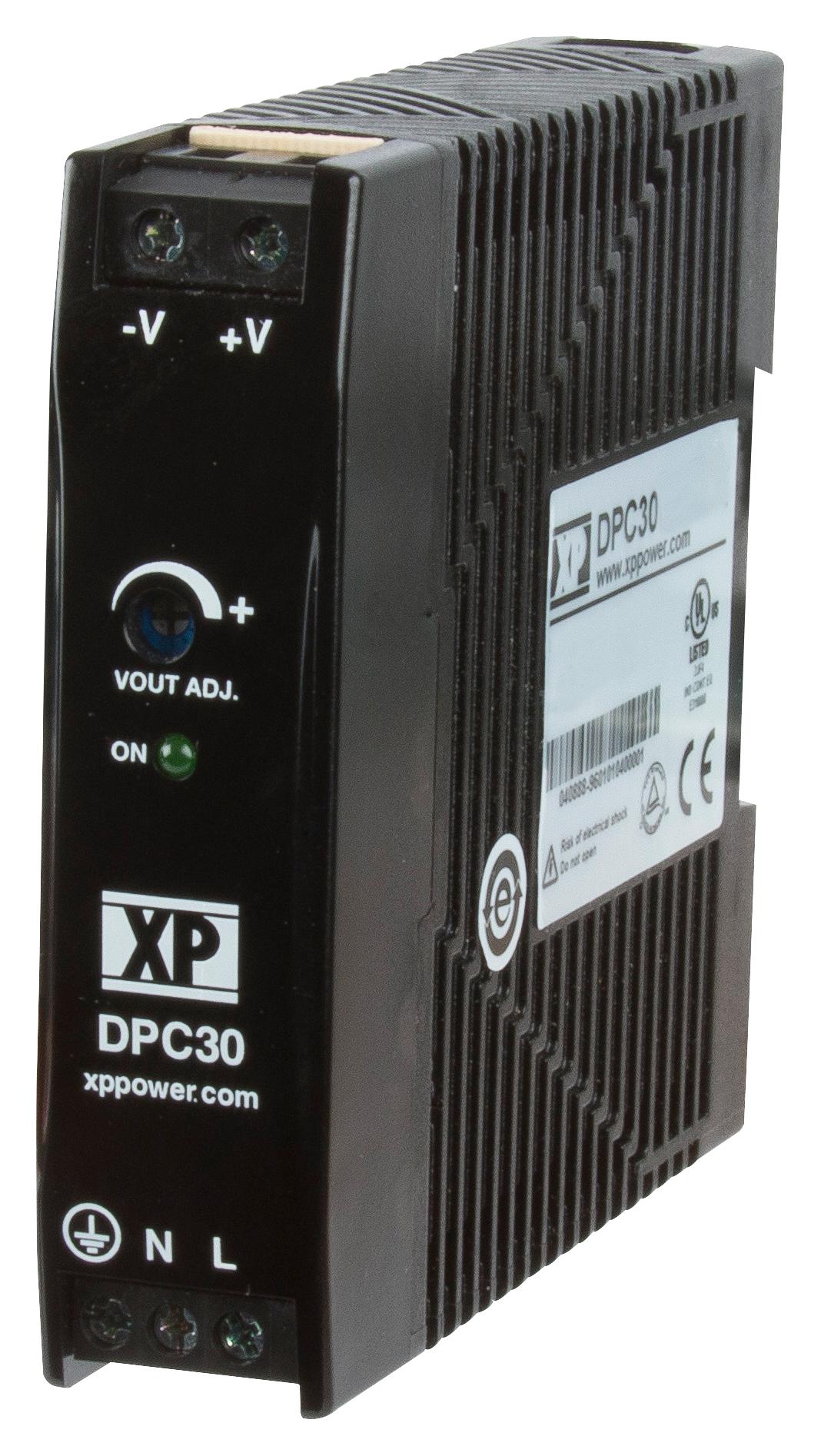

XP POWER DPC30US24 Power Supply
The DPC30 series is an ultra-slim, AC to DC power supply designed for DIN rail mounting. It features a universal input range from 85VAC to 264VAC, eliminating the need for input selector switches. The power supply complies with safety standards EN/IEC 60950-1 and EMC requirements EN55032 for class B emissions, as well as industrial control standards UL508. It is suitable for applications such as factory automation, process control, and other industrial environments. Key features include an ultra-slim design, operational temperature range from -25°C to 70°C, high efficiency, a wide output adjustment range, and output voltages from 5V to 24V. It consumes less than 0.3W at no load.
XP POWER DPC30US24 Power Supply Specifications:
- Input Voltage: 85-264 VAC, 50/60 Hz
- Output Power: 20W (5V), 24W (12V), 30W (24V)
- Output Voltage: 5V, 12V, 24V
- Output Voltage Adjustment Range: 4.5V to 5.5V (5V model), 11.4V to 15.6V (12V model), 22.5V to 28.5V (24V model)
- Ripple & Noise: 400 mV pk-pk
- Efficiency: up to 86%
- Dimensions: 3.6 x 0.89 x 3.94 inches (90.0 x 22.5 x 100.0 mm)
- Operating Temperature: -25°C to +70°C
- Protection: Overvoltage, Overload, Short Circuit (Hiccup Mode)
- Isolation: Input to Output 3000 VAC, Input to Ground 1500 VAC
- Cooling: Natural convection
- Compliance: UL508, EN55032, EN61000-3-2, EN61000-3-3
Buy the Buy XP Power DPC30 Series Power Supply Part Number DPC30US24 Online
Purchase the XP Power DPC30 series power supply online today to enjoy dependable performance in industrial automation, factory automation, and control systems. This ultra-slim, high-efficiency power supply offers adjustable output from 5V to 24V, operates over a wide temperature range from -25°C to 70°C, and features robust safety and EMC compliance. Its compact size fits DIN rail mounting easily, making it an ideal choice for demanding industrial environments. Invest in reliable power solutions for your automation projects by ordering now, ensuring optimal performance and minimal downtime.
Order your XP Power DPC30US24 power supply today and ensure reliable industrial automation and control with high efficiency and compact design.
Frequently Asked Questions
Where can I buy XP POWER DPC30US24?
You can click on the BUY or RFQ button to purchase DPC30US24 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part DPC30US24?
You can download the DPC30US24 datasheet or visit the XP POWER website for support.
Who is the manufacturer of DPC30US24?
XP POWER
