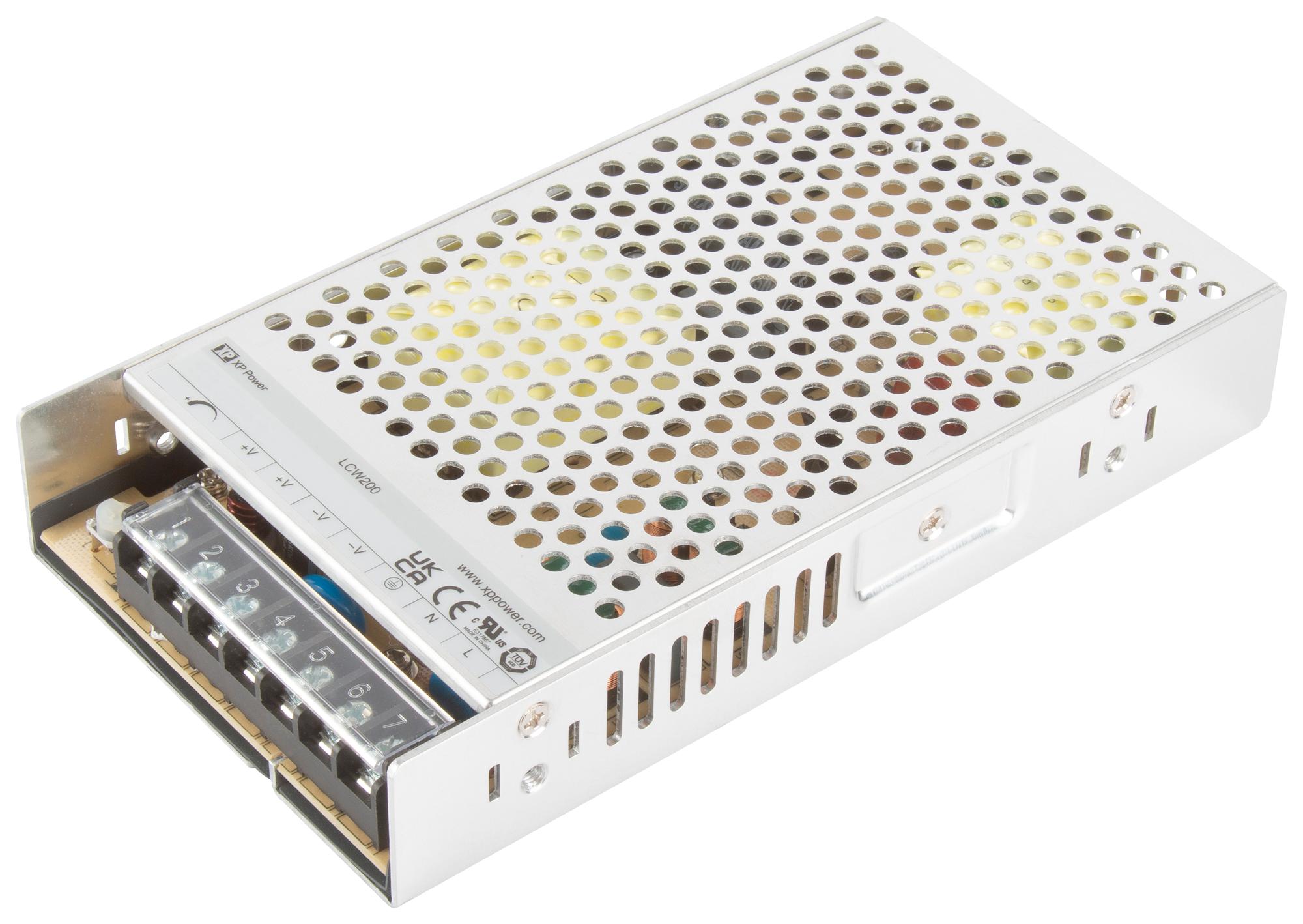

XP POWER LCW200PS24 Industrial Power Supply
The LCW200 series regulated output convection-cooled AC to DC power supplies are designed to deliver a reliable 200W power solution for industrial electronics and automation applications. They feature a wide input voltage range of 85-305VAC with active Power Factor Correction (PFC), and include adjustable output voltage, switch frequency of 65kHz, and high efficiency of up to 90%. Additional protections include short circuit, overcurrent, overload, and overvoltage safeguarding. These power supplies are certified for safety and EMC standards including UL 62368-1, EN 62368-1, CE, and UKCA, making them suitable for auxiliary power, security systems, lighting control, smart home, office systems, and vending equipment. They come with an integrated connector cover, conformal coating option, and are housed in an aluminum chassis with vented galvanized steel cover, operating from -30°C to +70°C. Dimensions are 7.05 inches (179mm) x 3.89 inches (99mm) x 1.18 inches (30mm). A 3-year warranty is included.
XP POWER LCW200PS24 Industrial Power Supply Specifications:
- Power Output: 200W
- Input Voltage Range: 85-305VAC
- Output Voltage Adjustment: Yes
- Efficiency: Up to 90%
- Protections: Short circuit, overcurrent, overload, overvoltage
- Switching Frequency: 65kHz
- Operating Temperature: -30°C to +70°C
- Certification: UL 62368-1, EN 62368-1, CE, UKCA
- Housing: Aluminum chassis with vented galvanized steel cover
- Dimensions: 7.05 inches x 3.89 inches x 1.18 inches (179mm x 99mm x 30mm)
Buy the Buy XP Power LCW200PS24 Part Number LCW200PS24 Online
Purchase the XP Power LCW200PS24 online today to ensure a dependable and efficient power source for industrial electronics, security, lighting, and smart systems. This 200-watt convection-cooled power supply offers a broad input range from 85-305VAC, active PFC, high efficiency up to 90%, and all essential protections including short circuit, overload, and overvoltage. Certified for safety and EMC standards, housed in an aluminum chassis with vented steel cover, it operates reliably from -30°C to +70°C. Enjoy peace of mind with a 3-year warranty and fast delivery for your automation and control needs.
Get XP Power LCW200PS24 today—built for industrial reliability, efficiency, and versatile power solutions for automation and electronics.
