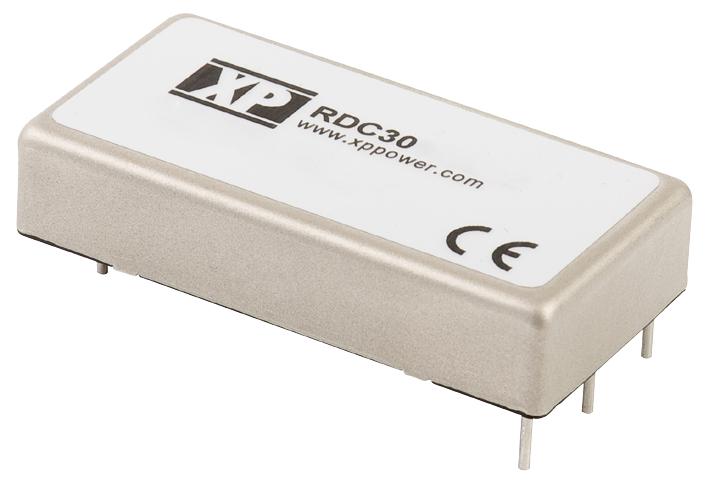

XP POWER RDC30110T0512 Railway Power Converter
The RDC30 series converters are designed for railway applications, conforming to EN50121-3-2 standards for rolling stock equipment. They feature input voltage ranges of 36V-140VDC and 55V-176VDC, offering high efficiency up to 91% and basic isolation of 1500 VAC. Available outputs include 3.3V, 5V, 12V, 15V, dual, and triple configurations. The units provide remote on/off, operate with convection cooling, and meet EN50155 standards, making them reliable power solutions for industrial and railway systems with excellent safety and EMI immunity.
XP POWER RDC30110T0512 Railway Power Converter Specifications:
- Input Voltage Range: 36V-140VDC (72V models), 55V-176VDC (110V models)
- Input Current: 20 mA pk-pk through 12 HH inductor
- Input Filter: Pi network
- Input Surge: 150 VDC for 100 ms (72V models), 185 VDC for 100 ms (110V models)
- Output Voltage: 3.3V, 5V, 12V, 15V (single); dual and triple output configurations available
- Output Voltage Trim: 72V models ON at 33.5V, OFF at 30.5V; 110V models ON at 52.5V, OFF at 48.5V
- Maximum Load: >150% of full load
- Efficiency: Up to 91%
- Isolation Voltage: 1500 VAC input to output, 1600 VDC output to case
- Protection: Overvoltage, overload, short circuit, overtemperature; auto-recovery in hiccup mode
- Operating Temperature: -40°C to +75°C (80°C optional with heatsink)
- Cooling: Convection-cooled
- EMC & Safety: EN50121-3-2, EN50155, CE, UKCA, meeting various immunity and emission standards
- Switching Frequency: 270 kHz typical
- Case Material: Nickel coated copper, UL94V-0 rated epoxy potting
- Dimensions: Refer to detailed mechanical drawings
Buy the Innovative RDC30 U–2013 Reliable Railway Power Supply for Industrial Applications
Experience the robust and high-efficiency RDC30 series power converters designed for railway and industrial applications. With input ranges of 36V-140VDC and 55V-176VDC, these units deliver stable outputs of 3.3V, 5V, 12V, and 15V, with dual and triple configurations available. Offering up to 91% efficiency, 1500 VAC isolation, and full EN compliance, they ensure reliable power management. Ideal for safety-critical environments, easy to install, convection-cooled, and protected against overloads, these converters are your trusted solution for demanding railway systems.
Order your RDC30 Series 110VDC and 72VDC input railway power converters today and ensure reliable, high-efficiency power for critical industrial systems.
Frequently Asked Questions
Where can I buy XP POWER RDC30110T0512?
You can click on the BUY or RFQ button to purchase RDC30110T0512 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part RDC30110T0512?
You can download the RDC30110T0512 datasheet or visit the XP POWER website for support.
Who is the manufacturer of RDC30110T0512?
XP POWER
