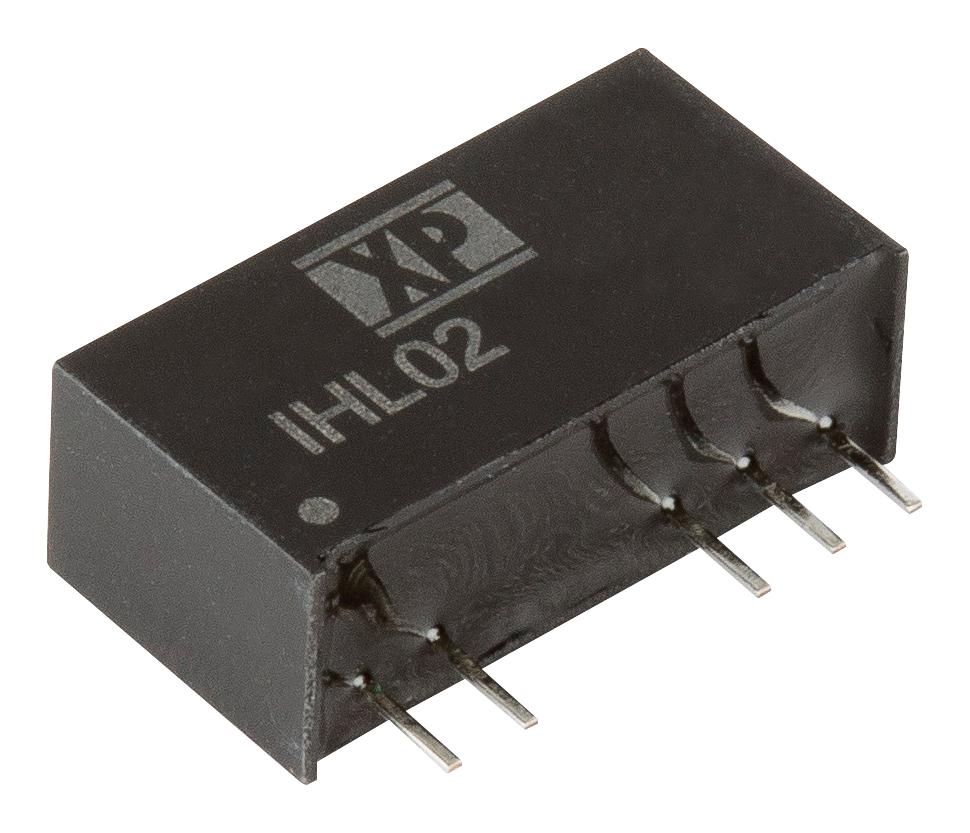

XP POWER IHL0224D1509 DC-DC Converter
The IHL02 series is a 2-watt dual output DC-DC converter enclosed in a 7-pin SIP package. It provides bipolar outputs suitable for MOSFET and IGBT drive applications, with high isolation of 5200VDC and a working voltage of 250VAC. The device supports both single and dual outputs, operates in a temperature range from -40°C to 95°C, and can deliver full load performance at an ambient temperature of 65°C. It includes features such as continuous short circuit protection, making it ideal for power management and industrial applications.
XP POWER IHL0224D1509 DC-DC Converter Specifications:
- Power Rating: 2 Watts
- Isolation Voltage: 5200VDC (functional insulation)
- Working Voltage: 250VAC
- Input Voltage Range: 13.5V to 165V
- Output Voltage: 3.3V to 30V (varies by model)
- Output Current: Up to 70% load capacity, detailed per model
- Operating Temperature Range: -40°C to +95°C
- Full load at 65°C ambient
- Isolation Resistance: 10Ω
- Isolation Capacitance: 7 pF
- Switching Frequency: 50-100 kHz
- Dimensions: 0.77 x 0.28 x 0.39 inches (19.5 x 7.2 x 10.0 mm)
- Case Material: Non-conductive UL94V-0 plastic
- Pin Material: Solder coated phosphor bronze
- Potting Material: Epoxy
- MTBF: 3.3 million hours
- Compliance: CE, UKCA
- Environmental: -40°C to +125°C storage, humidity 25-95% RH
- Protection: Continuous short circuit, surge, conducted and radiated immunity
- Application: Power management, industrial drive circuits, IGBT & MOSFET drivers
Buy the Buy XP Power IHL0224D1509 Online
Purchase the XP Power IHL0224D1509 DC-DC Converter online today to ensure reliable power conversion with high isolation of 5200VDC, bipolar outputs, and operating in a wide temperature range from -40°C to 95°C. This robust 2-watt device supports full load at 65°C ambient, offers excellent transient immunity, continuous short circuit protection, and compact SIP7 package. Perfect for industrial environments and MOSFET or IGBT drive applications, it guarantees performance efficiency and peace of mind with a 3-year warranty.
Buy XP Power IHL0224D1509 now and experience unmatched reliability and high isolation for industrial power applications.
Frequently Asked Questions
Where can I buy XP POWER IHL0224D1509?
You can click on the BUY or RFQ button to purchase IHL0224D1509 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IHL0224D1509?
You can download the IHL0224D1509 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IHL0224D1509?
XP POWER
