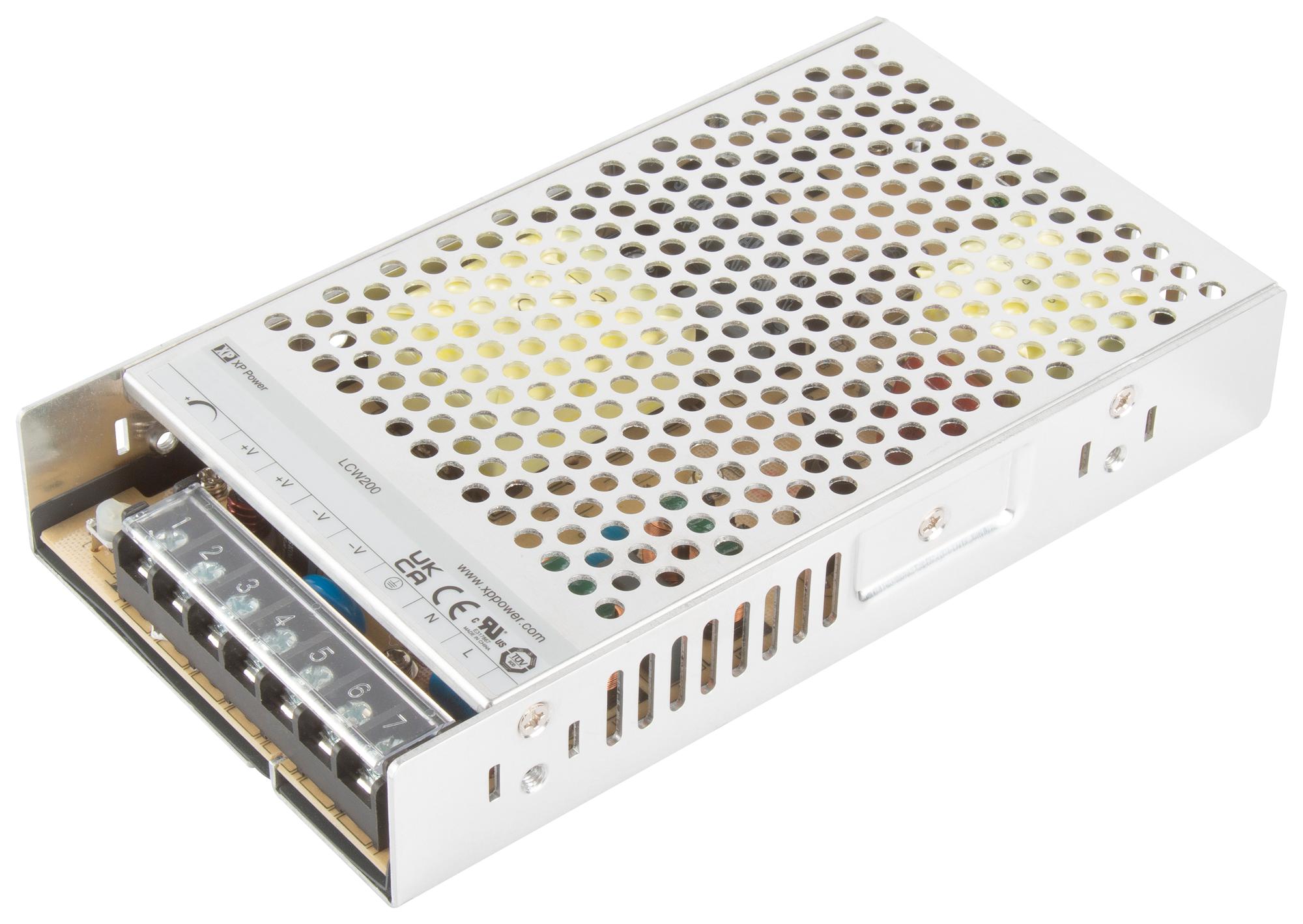

XP POWER LCW200PS48 Power Supply
The LCW200 series regulated output convection-cooled AC to DC power supplies deliver reliable 200W power for industrial electronics, automation, security, lighting, and vending. They feature wide input voltage of 85-305VAC, active PFC, adjustable output voltage, short circuit, overcurrent, overload, and overvoltage protections. Constructed with an aluminium chassis and vented galvanized steel cover, these units operate from -30°C to +70°C, with optional conformal coating. They achieve up to 89% efficiency, include an integrated connector cover, and have dimensions of 7.05 x 3.89 x 1.18 inches, backed by a 3-year warranty.
XP POWER LCW200PS48 Power Supply Specifications:
- Input Voltage Range: 85-305VAC
- Output Power: 200W
- Output Voltage Adjustment: Yes
- Efficiency: Up to 89%
- Operating Temperature: -30°C to +70°C
- Dimensions: 7.05 in x 3.89 in x 1.18 in (179mm x 99mm x 30mm)
- Cooling Method: Natural convection
- Protection: Short circuit, overcurrent, overload, overvoltage
- Standards Compliance: UL 62368-1, EN 62368-1, CE, UKCA
- Certifications: UL, EN, CE, UKCA
- Chassis Material: Aluminium with vented galvanized steel cover
- Switching Frequency: 65 kHz
- Efficiency: 85-90%
Buy the XP Power Series LCW200 Power Supply: LCW200PS48
Purchase the XP Power Series LCW200 Power Supply LCW200PS48 online today and secure a reliable 200W convection-cooled power solution. Designed for industrial automation, security, lighting, and vending applications, this unit offers a wide input range of 85-305VAC, high efficiency up to 89%, and built-in protections against short circuit, overcurrent, overload, and overvoltage conditions. Its durable aluminium chassis with vented cover ensures optimal heat dissipation. Easy to install with adjustable voltage, compliance with major safety standards, and a 3-year warranty make it your ideal choice for demanding environments.
Order your XP Power Series LCW200 Power Supply LCW200PS48 today and give your industrial projects the dependable quality they deserve.
