XP POWER TR2024S6V5 DC-DC Regulator
The TR20 is a compact, high-efficiency switching regulator providing versatile power conversion with a wide input range up to 36V DC. It offers stable output voltages from 1.2V to 15V, ideal for various industrial and electronic applications. Featuring a SIP3 package, non-isolated design, and up to 96% efficiency, it incorporates short circuit protection and low standby input current of 1mA. Compliant with Class B EMI standards, it requires minimal external components, making it suitable for space-constrained environments and reliable performance in demanding conditions.
XP POWER TR2024S6V5 DC-DC Regulator Specifications:
- Input Voltage Range: Up to 36V DC
- Output Voltage: 1.2V to 15V
- Output Current: 2A
- Efficiency: Up to 96%
- Package: SIP3
- Non-isolated: Yes
- Short Circuit Protection: Yes
- Standby Input Current: 1mA
- Operating Temperature Range: -40°C to +100°C
- Dimensions: 0.55 x 0.30 x 0.40 inches (14.0 x 7.5 x 10.1 mm)
- Compliance: Class B Conducted & Radiated Emissions
- MTBF: >2.6 million hours
- Soldering: 260°C for vapor phase soldering
- Switching Frequency: 1200/40 kHz
- Case Material: Non-conductive black plastic UL94V-0
- Pin Material: Copper, matte tin coated
- Cooling Method: Natural convection

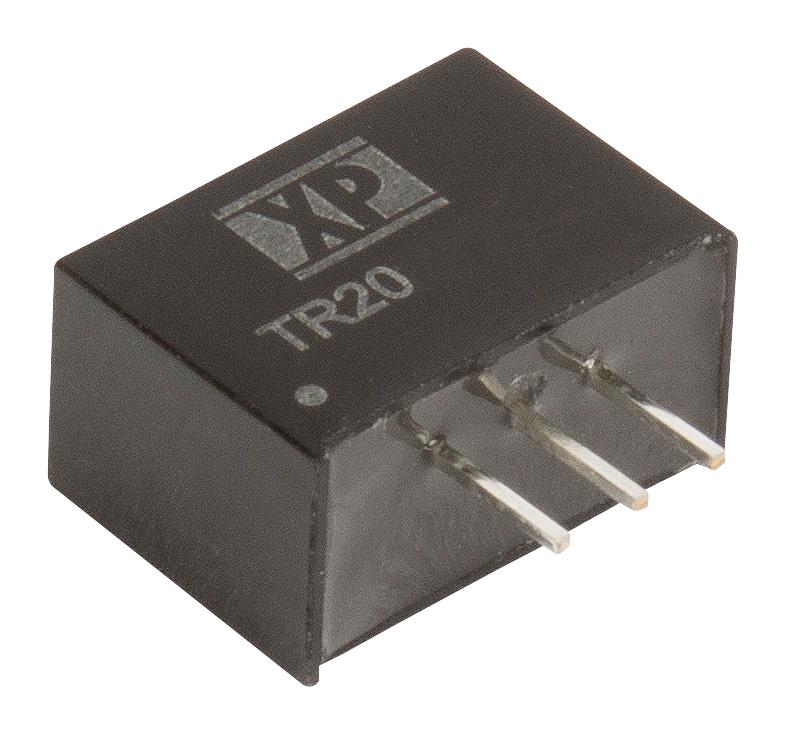

Buy the XP Power Series DC-DC Converter: TR2024S6V5
Purchase the XP Power TR2024S6V5 online today and benefit from its high efficiency, wide input range, and reliable protection features. Ideal for power conversion in industrial and electronic devices, this compact regulator offers stable output voltages from 1.2V to 15V with a 2A current capacity. Its SIP3 package and low standby current make it a space-saving, cost-effective solution for demanding applications requiring robust performance and compliance with strict EMI standards. Experience seamless online buying with fast delivery and dedicated support.
Buy XP Power TR2024S6V5 now and experience unmatched reliability and performance in compact switching regulators with high efficiency and minimal external components.
Frequently Asked Questions
Where can I buy XP POWER TR2024S6V5?
You can click on the BUY or RFQ button to purchase TR2024S6V5 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part TR2024S6V5?
You can download the TR2024S6V5 datasheet or visit the XP POWER website for support.
Who is the manufacturer of TR2024S6V5?
XP POWER
