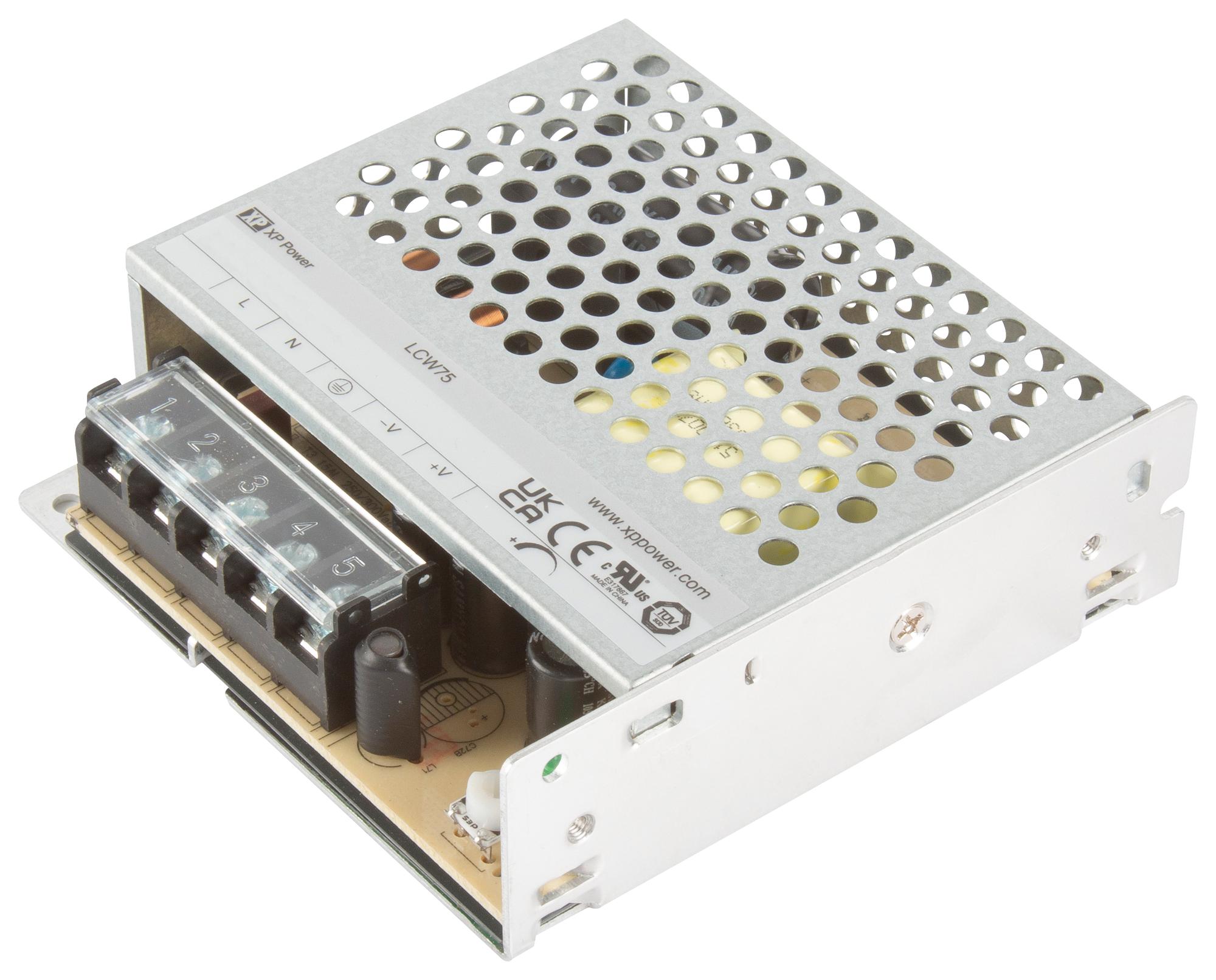

XP POWER LCW75US12 industrial power supply
The LCW75 series regulated, convection-cooled AC to DC power supplies deliver 75W of power in a compact aluminum chassis with vented galvanized steel cover. Designed for industrial, household, and security applications, these power supplies feature wide-range AC input from 85-305VAC, output voltage adjustment of ±10%, and a switching frequency of 65kHz. They offer high efficiency of 87%, low stand-by power consumption, and comprehensive protections including short circuit, overcurrent, overvoltage, and overload protection. Certifications include UL, EN, CE, and UKCA. Additional features include an integrated connector cover, conformal coating option, and operating temperature from -30°C to +70°C. Measures 3.898 x 3.819 x 1.181 inches and comes with a 3-year warranty.
XP POWER LCW75US12 industrial power supply Specifications:
- Power: 75W
- Input Voltage Range: 85-305VAC
- Output Voltage Adjustment: ±10%
- Switching Frequency: 65kHz
- Efficiency: up to 87%
- Operating Temperature: -30°C to +70°C
- Dimensions: 3.898 x 3.819 x 1.181 inches (99 x 97 x 30 mm)
- Material: Aluminum chassis, galvanized steel cover
- Protection: Short circuit, overcurrent, overvoltage, overload
- Certifications: UL (UL62368-1), EN (EN62368-1, EN60335, EN61558), CE, UKCA
- Conformal Coating: Optional, adds protection against environmental factors
- Cooling: Natural convection
- Input Frequency: 47-63Hz
- Weight: Approximate 0.485 kg
Buy the XP Power LCW75 – Reliable Industrial and Household Power Supply for Security and Control Systems
Purchase the XP Power LCW75 power supply online today for reliable, efficient 75W power with wide-input voltage, high protection standards, and a compact design. Designed for industrial, household, and security applications, this convection-cooled unit offers excellent efficiency of up to 87%, comprehensive protections including short circuit, overcurrent, overvoltage, and overload, and includes optional conformal coating for environmental resilience. Its operating temperature range is -30°C to +70°C, with a compact size of 3.898 x 3.819 x 1.181 inches, ensuring easy integration into complex systems. Backed by a 3-year warranty, it’s the ideal choice for demanding uses requiring stable power in a robust package.
Get XP Power LCW75 today—built for precision, durability, and efficient power conversion in demanding industrial and household applications.
Frequently Asked Questions
Where can I buy XP POWER LCW75US12?
You can click on the BUY or RFQ button to purchase LCW75US12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCW75US12?
You can download the LCW75US12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCW75US12?
XP POWER
