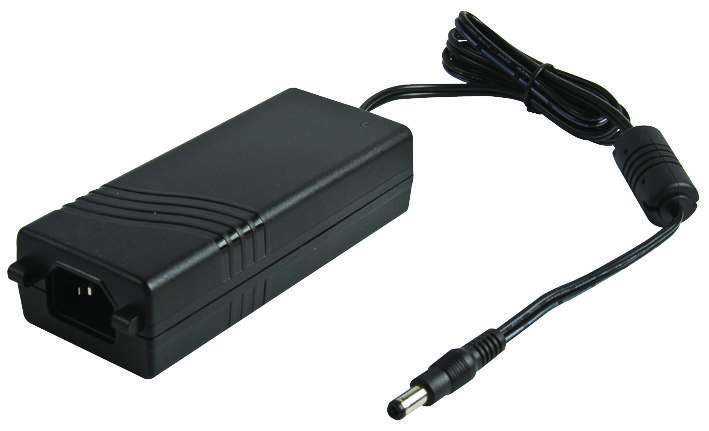

XP POWER AFM30US18C2 Power Supply
The AFM30 is a 30W external power supply designed for efficient and reliable power delivery in medical and IT applications. It features Energy Efficiency Level V compliance, short-circuit protection in hiccup mode, and a barrel plug output connector measuring 2.5 x 5.5 x 11mm with center-positive polarity. Approved for medical and IT standards, and China CCC qualified, it operates from 0°C to 60°C. Its robust construction ensures dependable performance for power management in various electronic devices, with certifications ensuring safety and environmental compliance.
XP POWER AFM30US18C2 Power Supply Specifications:
- Input Voltage: 80-264 VAC, derate output power
- Input Frequency: 47-63 Hz
- Input Current: AFM30US18: 0.8 A rms at 115VAC
- Inrush Current: AFM30: 50 A max at 240VAC
- Power Factor: 0.8
- Earth Leakage Current: <0.3 W
- No Load Input Power: <0.3 W
- Output Voltage: 19 V
- Output Voltage Trim: Not specified
- Initial Set Accuracy: 1.0%
- Minimum Load: No minimum load required
- Start Up Delay: 3 seconds max at 115 VAC
- Hold Up Time: 8 ms minimum at 115 VAC
- Line Regulation: 1.0% max
- Load Regulation: 2.5% max
- Ripple & Noise: 1% pk-pk
- Overvoltage Protection: Yes, automatic recovery
- Overload Protection: Yes, hiccup mode
- Short Circuit Protection: Yes, hiccup mode
- Efficiency: Up to 87.4%
- Isolation: 4000 VAC input to output
- Switching Frequency: 52 kHz typ.
- MTBF: Over 250,000 hours at 25°C
- Operating Temperature: 0°C to 60°C
- Operating Humidity: 10-95% RH, non-condensing
- Storage Temperature: -40°C to 80°C
- Operating Altitude: Up to 2000 m
- Vibration/Shock: 3-axis, 20 mins, 5-100 Hz, 2.31 m/s²
- Emissions: EN55011/32, FCC Class B
- Immunity: EN61000-4 series compliant
- Certifications: IEC60601-1-2, UL60950-1, EN62368-1, CCC Qualified
Buy the Power Supply Series AFM30 30W: AFM30US18C2
Purchase the reliable Power Supply Series AFM30 30W online today to ensure your medical and IT devices operate efficiently and safely. This energy-efficient power supply features a compact barrel connector with 2.5 x 5.5 x 11mm dimensions, complies with Level V standards, and includes advanced short-circuit protection in hiccup mode for enhanced safety. Certified for medical, IT, and environmental standards, it operates from 0°C to 60°C, ensuring consistent performance in diverse conditions. Ideal for powering critical systems with high safety and efficiency standards.
Order your Power Supply Series AFM30 30W today and give your electronic projects the dependable, efficient power they deserve.
Frequently Asked Questions
Where can I buy XP POWER AFM30US18C2?
You can click on the BUY or RFQ button to purchase AFM30US18C2 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part AFM30US18C2?
You can download the AFM30US18C2 datasheet or visit the XP POWER website for support.
Who is the manufacturer of AFM30US18C2?
XP POWER
