XP POWER LCW75US15 Power Supply

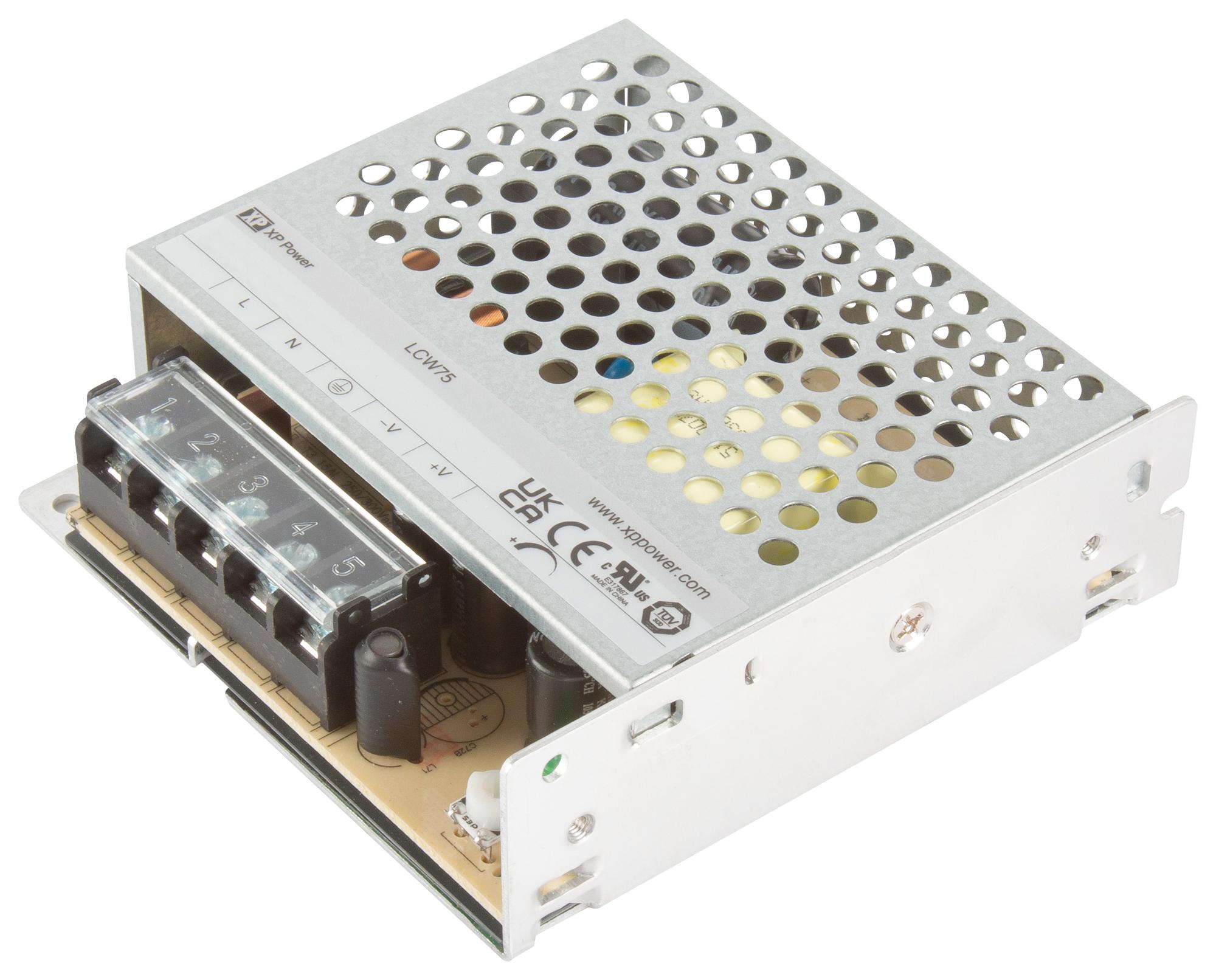

The LCW75 series regulated output power supplies are convection-cooled AC to DC units designed for industrial, commercial, and household applications. They feature a wide input voltage range of 85-305VAC, adjustable output voltage with ±10% tolerance, and operate at a switching frequency of 65kHz with 87% efficiency. These 75W power supplies include integrated connector covers, conformal coating options, and are certified by UL, EN, CE, and UKCA standards for ITE, industrial, and household use. They offer low standby power consumption, short circuit, overcurrent, overvoltage, and overload protections, with an operating temperature range from -30°C to +70°C. The units are housed in an aluminum chassis with vented galvanized steel cover, measure approximately 99 × 97 × 30 mm, and are backed by a 3-year warranty.
XP POWER LCW75US15 Power Supply Specifications:
- Input Voltage Range: 85-305VAC
- Output Power: 75W
- Output Voltage Adjustment: ±10%
- Switching Frequency: 65kHz
- Efficiency: up to 87%
- Operating Temperature: -30°C to +70°C
- Protection: Short circuit, overcurrent, overvoltage, overload
- Dimensions: 99mm x 97mm x 30mm (approximately)
- Housing Material: Aluminum chassis with galvanized steel cover
- Certifications: UL, EN, CE, UKCA
- Conformal coating: Optional
- Input Fuse: T3.15A/300V
- Isolation: Input to output 4000V, input to ground 2000V, output to ground 1250V
- Cooling Method: Natural convection
- Humidity: 5-90% RH, non-condensing
Buy the XP Power Series LCW75 75W Convection Cooled Power Supply: LCW75US15
Purchase the XP Power LCW75US15 power supply online today to ensure your industrial or household electronics operate reliably. This 75W convection-cooled AC-DC unit features a wide input voltage of 85-305VAC, adjustable output voltage within ±10%, and high efficiency up to 87%. Designed for robust performance, it includes short circuit, overload, and overvoltage protections, and operates seamlessly from -30°C to +70°C. Its compact aluminum housing with galvanized steel cover guarantees durability, reliability, and ease of installation, backed by a 3-year warranty for peace of mind.
Buy XP Power LCW75US15 now and experience reliable, efficient power for industrial, household, and control system applications with advanced protections.
Frequently Asked Questions
Where can I buy XP POWER LCW75US15?
You can click on the BUY or RFQ button to purchase LCW75US15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCW75US15?
You can download the LCW75US15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCW75US15?
XP POWER
