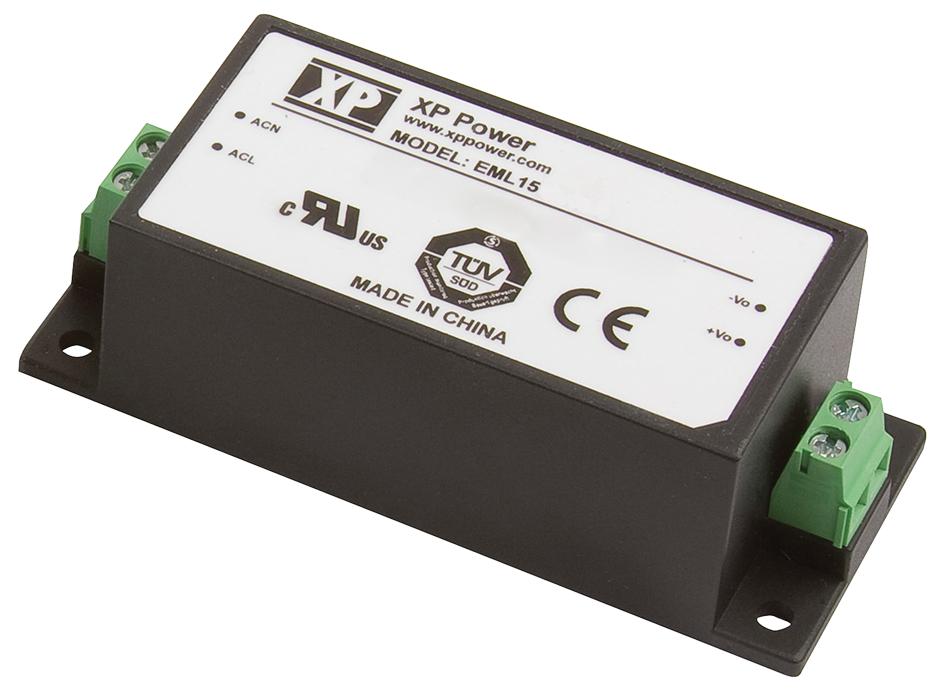

XP POWER EML15US05S Medical Power Supply
The EML15 series of medical-grade AC-DC power supplies offers reliable, compact solutions for healthcare devices. They feature single output options from 3.3V to 48V with peak load capability of 130%. Offering flexible mounting choices including PCB, open frame, chassis, and DIN rail mounts, these supplies meet worldwide safety standards and Class B emission limits. Designed with Class II isolation, they support efficient power delivery for medical applications, ensuring compliance, safety, and ease of integration in modern healthcare systems. Their robust construction and UL approvals make them ideal for various medical electronics and equipment.
XP POWER EML15US05S Medical Power Supply Specifications:
- Input Voltage Range: 85-264 VAC
- Input Frequency: 47-63 Hz
- No Load Power: 0.3 W
- Efficiency: 75-82%
- Output Power: 15 W
- Output Voltage Options: 3.3 V, 5 V, 9 V, 12 V, 15 V, 24 V, 36 V, 48 V
- Output Current (typical): 1.00 A to 3.00 A depending on model
- Peak Load Capability: 130% for 30 seconds
- Operating Temperature: -20°C to +70°C (derated above 50°C)
- Dimensions: Varies by configuration, approximately 2.44 x 1.21 x 0.95 inches for PCB mount
- Certifications: IEC 60601-1, UL, EN55032/11 Class B
Buy the Buy XP Power EML15 Series Power Supply Part Number EML15US05S Online
Purchase the XP Power EML15US05S power supply online today and experience dependable, safe power solutions designed for medical applications. This compact, versatile power supply features multiple mounting options and adheres to global safety standards, including IEC 60601-1 and UL certifications. Its peak load capability of 130% for 30 seconds ensures performance stability during transient conditions. Ideal for healthcare devices, it offers efficiency up to 82%, low noise emissions, and wide input voltage range. Secure your medical system’s power needs effortlessly, with fast online ordering and dedicated support for healthcare professionals and system integrators.
Order your XP Power EML15US05S medical-grade power supply today and ensure reliable, safe power delivery for your healthcare devices.
Frequently Asked Questions
Where can I buy XP POWER EML15US05S?
You can click on the BUY or RFQ button to purchase EML15US05S from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part EML15US05S?
You can download the EML15US05S datasheet or visit the XP POWER website for support.
Who is the manufacturer of EML15US05S?
XP POWER
