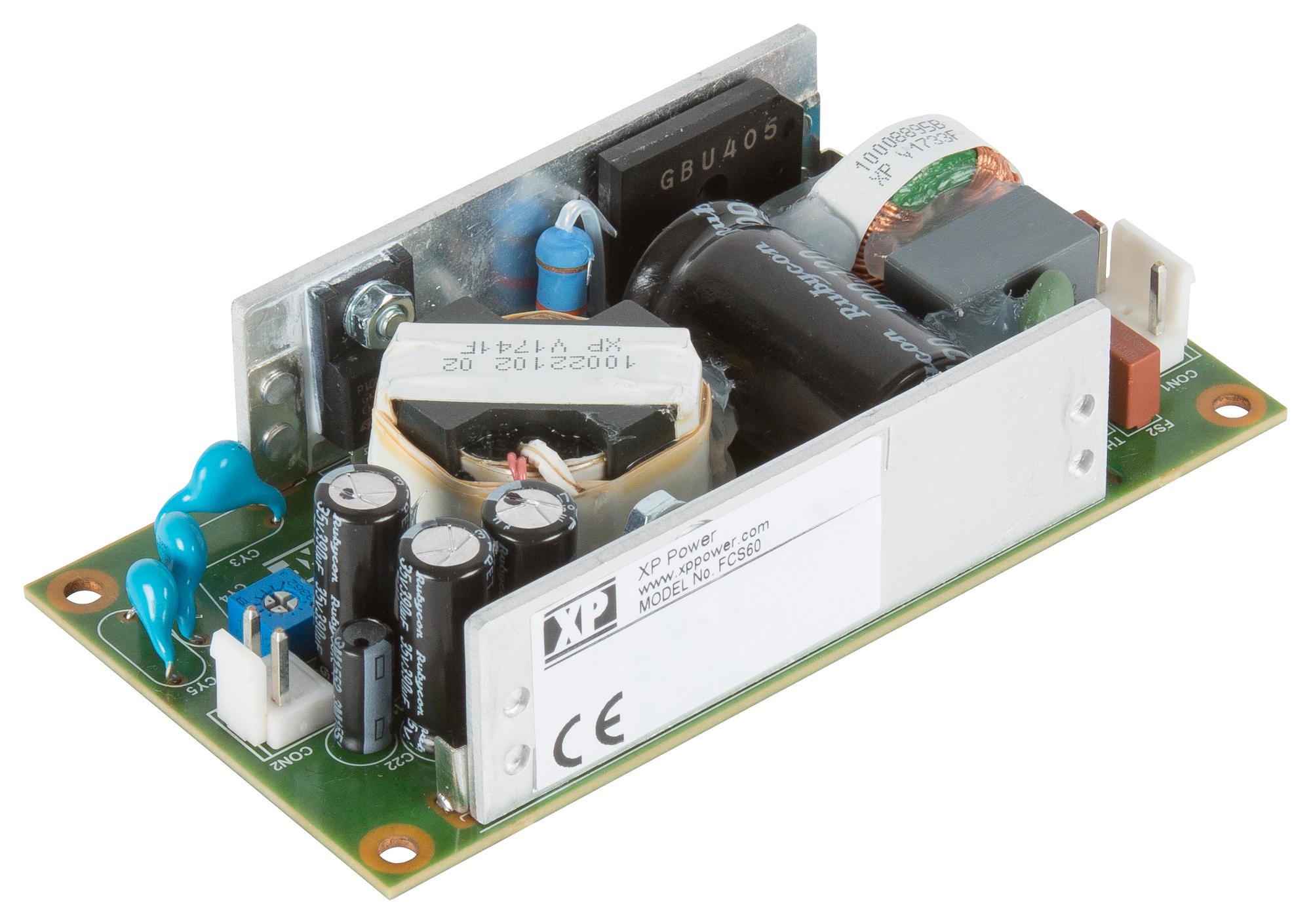

XP POWER FCS60US12 Power Supply Module
The FCS60 series is a high-efficiency, 60W convection-cooled AC-DC power supply designed for medical and industrial applications. It features a low-profile design with a height of just 1.04 inches and a footprint of 2 inches by 4 inches, making it suitable for compact equipment. The power supply operates down to 80 VAC, includes two AC line fuses, and complies with medical and ITE safety standards, including low leakage currents for medical use. It is approved for both Class I and Class II installations, offering high power density and minimal no-load power consumption below 0.3W. This versatile power supply is ideal for medical devices and industrial equipment requiring reliable, efficient power in a small form factor.
XP POWER FCS60US12 Power Supply Module Specifications:
- Power Output: 60 W
- Output Voltages: 12.0V, 15.0V, 18.0V, 24.0V, 36.0V, 48.0V
- Output Currents: 5.00A, 4.00A, 3.33A, 2.50A, 1.67A, 1.25A
- Efficiency: 85-86%
- Input Voltage Range: 80-118/280-264 VAC
- No Load Power Consumption: less than 0.3 W
- Profile Dimensions: 2" x 4" x 1.04" (50.8 x 101.6 x 26.4 mm)
- Mounting Hole: must be connected to safety earth for Class I applications
- Safety Approvals: Medical and ITE standards, low leakage current
- Operating Temperature: -25°C to +70°C
- Cooling: Convection cooled
- Certifications: UL, CUL, IEC62368-1, IEC60601-1, EN62368-1
Buy the Buy XP Power FCS60 Series Power Supply Part Number FCS60US12 Online
Enhance your projects with the XP Power FCS60 series power supply, offering 60W power, high efficiency, compact design, and medical approval standards. This reliable, low-profile converter is ideal for medical, industrial, and appliance applications where space-saving and safe power solutions are critical. Featuring minimal no-load consumption, high power density, and broad input voltage compatibility, it guarantees dependable performance in demanding environments. Purchase online now to benefit from quick delivery and dedicated support for seamless integration into your equipment.
Order your XP Power FCS60US12 Series power supply today and ensure reliable, efficient power for your medical or industrial equipment.
