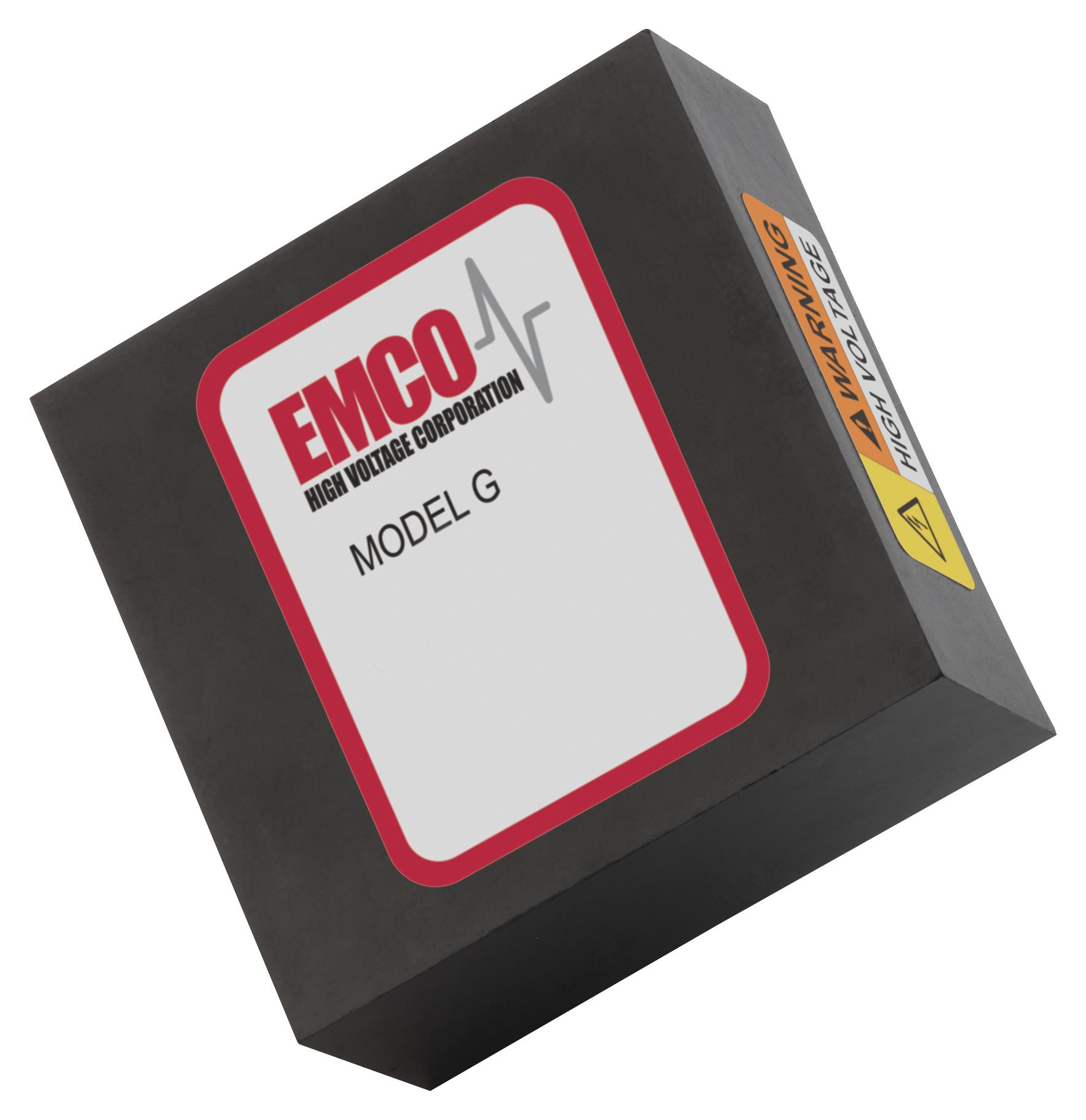

XP POWER G05 High Voltage DC Converter
The G Series consists of isolated, proportional high-voltage DC to DC converters offering up to 6kV at 1.5W. These compact, PCB mount modules feature linear output from approximately 0.7 volts in, with excellent filtering, low noise, and minimal EMI/RFI. Suitable for capacitor charging, electrostatic chucks, photomultiplier tubes, and igniters, they provide dual output options with center-tap for positive and negative voltages. Proven reliability with low ripple, short circuit protection, and high isolation make these ideal for precision high-voltage applications in research, industrial, and testing environments.
XP POWER G05 High Voltage DC Converter Specifications:
- Input Voltage: 0 to 12VDC
- Output Voltage Range: 100V to 6kV
- Output Power: 1.5W
- Isolation: < +/-3.5kV
- Response Time: <40ms (GPMT models), <15ms (G01-G60 models)
- Responsiveness: +/-3% voltage tolerance at full load
- Regulation: <10% variation over load
- Operating Temperature: -10°C to +60°C
- Storage Temperature: -25°C to +90°C
- Frequency: 125kHz +/- 65kHz
- Dimensions: 4.5L x 1.5W x 0.63H inches
- Weight: 1.5 oz (43 grams)
- Case Material: Diallyl Phthalate (DAP)
- Certifications: RoHS compliant
Buy the Proven Reliability High-Voltage Converter – Reliable HV DC for Industrial Applications
Order the XP Power G Series high-voltage DC to DC converters online today. These compact modules deliver up to 6kV at 1.5W, offering low ripple, high reliability, and dual output options with center-tap. Perfect for capacitor charging, electrostatic applications, and scientific instrumentation. With proven performance, low noise, and excellent filtering, they are essential components for precision high-voltage systems. Buy now to ensure your projects benefit from top-quality high-voltage power conversion with minimal maintenance and maximum stability.
Buy XP Power G05 high-voltage DC converter now and experience unmatched reliability and performance in your industrial or scientific projects.
Frequently Asked Questions
Where can I buy XP POWER G05?
You can click on the BUY or RFQ button to purchase G05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part G05?
You can download the G05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of G05?
XP POWER
