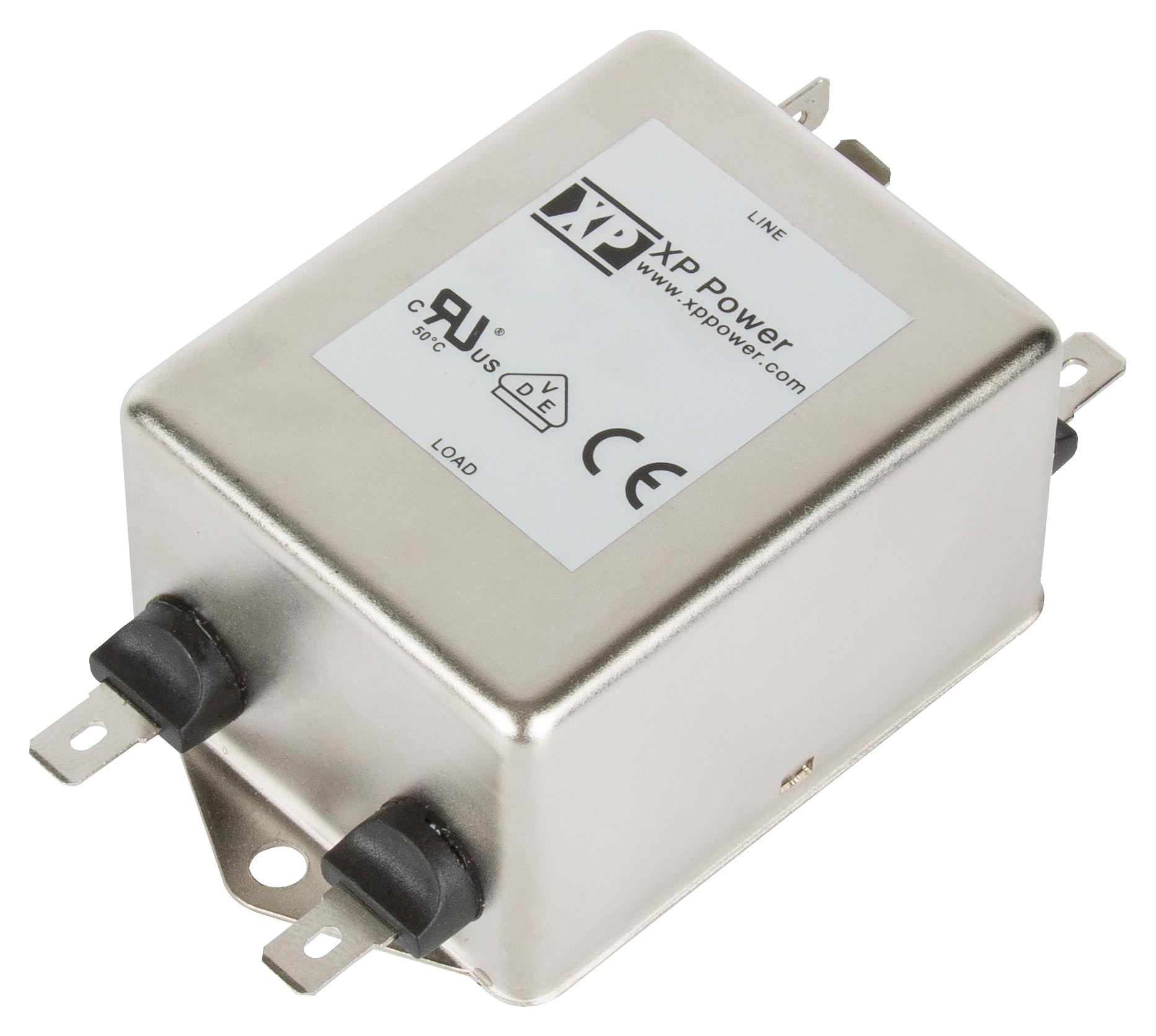

XP POWER FIHAA03C1F Chassis Mount Filter
The FIHA high attenuation dual stage filters are designed for ITE applications and are housed in a compact metal enclosure suitable for chassis mounting. They feature a dual stage filter design to effectively reduce electromagnetic interference, with input and output connections via 6.3 x 0.8mm Faston terminals. These filters should be installed close to the mains cable entry point to minimize radiated emissions. All models are equipped with a bleed resistor to safely discharge the capacitors when power is disconnected and come with a shielded metal body for safety and durability. They are certified to EN60939-2 for passive filters and ANSI/UL1283 for EMI filters. The filters operate over a wide temperature range from -40°C to +110°C, with full power capability up to +50°C. Available in ratings of 1A, 3A, 6A, 10A, 15A, and 20A.
XP POWER FIHAA03C1F Chassis Mount Filter Specifications:
- Rated Voltage: 250 VAG
- Input Frequency: 400 Hz
- Rated Current: 1A, 3A, 6A, 10A, 15A, 20A
- Leakage Current: 3-6mA
- Earth Leakage Current: 2-5W
- Temperature Range: -40°C to +110°C
- Full Power Operation: Up to +50°C
- Protection Class: Suitable for protection Class I appliances
- Dielectric Strength: 1500 VAG
- Terminal Type: Faston 6.3 x 0.8mm
- Safety Approvals: EN60939-2, ANSI/UL1283
- Dimensions: Compact metal case, detailed dimensions vary by model
Buy the Buy XP Power Chassis Mount Filter Part Number FIHAA03C1F Online
Enhance your electronic equipment with XP Power's high attenuation dual stage chassis mount filters. Designed for ITE applications, these compact, shielded metal filters support ratings from 1A to 20A. They feature Faston terminals for easy installation, a bleed resistor for capacitor safety, and certification for safety standards EN60939-2 and UL1283. Operate effectively across a wide temperature range from -40°C to +110°C, ensuring optimal performance and durability. Upgrade your EMI suppression with this reliable, professional-grade filter solution today.
Buy XP Power FIHAA03C1F now and experience high-performance electromagnetic interference filtering for reliable electronic equipment.
Frequently Asked Questions
Where can I buy XP POWER FIHAA03C1F?
You can click on the BUY or RFQ button to purchase FIHAA03C1F from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part FIHAA03C1F?
You can download the FIHAA03C1F datasheet or visit the XP POWER website for support.
Who is the manufacturer of FIHAA03C1F?
XP POWER
