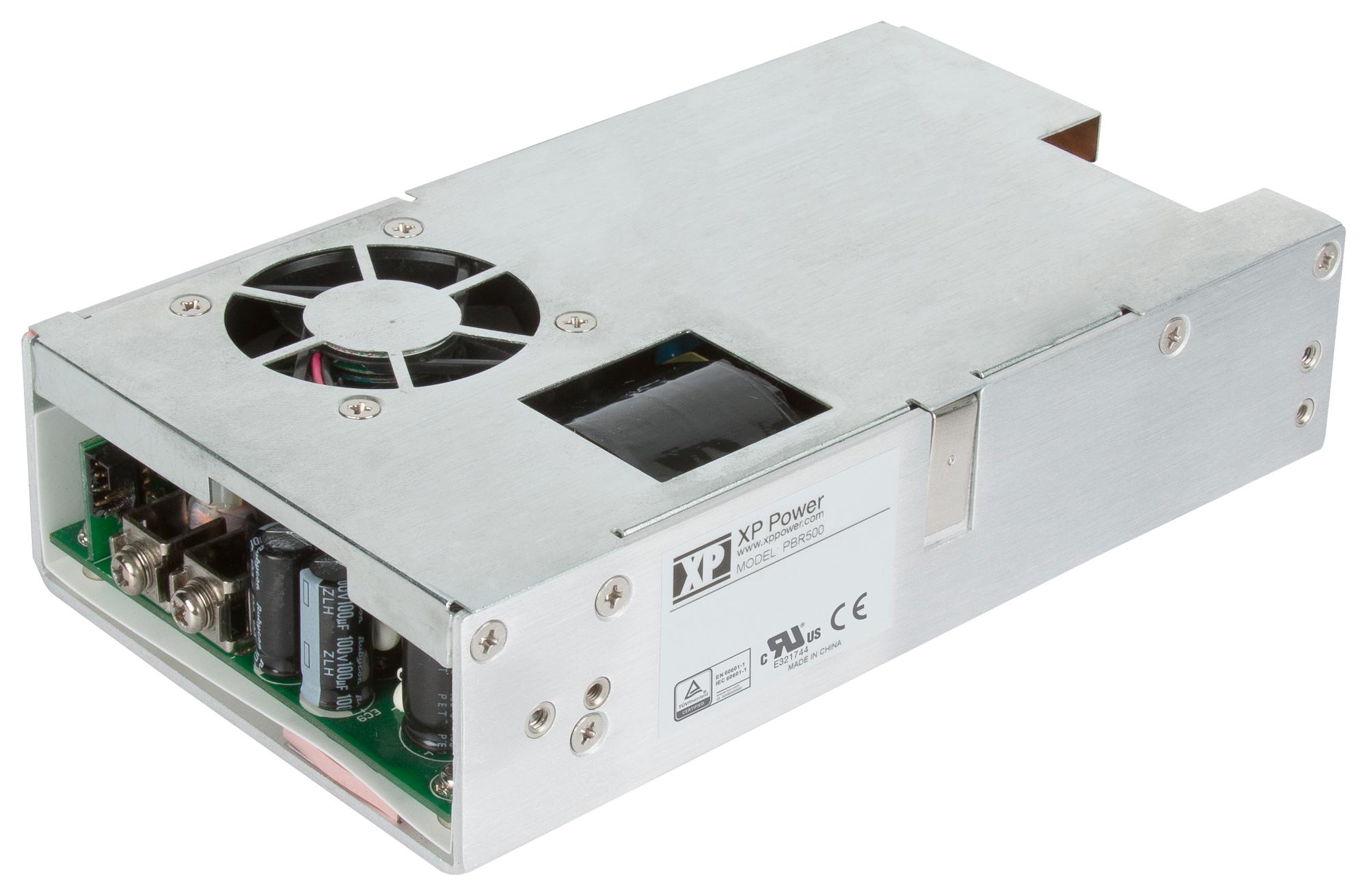

XP POWER PBR500PS12C Power Supply
The PBR500 series of AC-DC switching power supplies delivers 450-500 watts of continuous power with forced air or convection cooling. Built on a U-Channel for mechanical support and heat sinking, these units are suitable for ITE, industrial, and medical applications, including BF-rated insulation at up to 5000 meters altitude. Dimensions are 7.0 x 4.00 x 1.70 inches, with features like standby and fan supplies, Power OK, inhibit, remote sense, and compliance with safety standards. They offer high efficiency, robust protections, and optional fan and cover assembly for enhanced cooling and durability.
XP POWER PBR500PS12C Power Supply Specifications:
- Input Voltage: 80-264 VAC
- Input Frequency: 47-63 Hz
- Input Current at Full Load: 5.27-6 A
- Earth Leakage Current: 200-250 W
- Output Voltage Range: 12-57 V
- Output Power: 350W to 500W (depending on cooling)
- Ripple & Noise: 120-280 mV pk-pk
- Efficiency: Up to 90%
- Isolation: 4000 VAC input to output, 7500 VAC input to ground
- Surge Protection: 2x MOPP
- Overvoltage & Overcurrent Protection: Yes, latched and trip features
- Operating Temperature: -10°C to +70°C, derating with temperature
- Storage Temperature: -40°C to +85°C
- Humidity: 5-95% RH (non-condensing)
- Mechanical Dimensions: 7.0 x 4.00 x 1.70 inches
- Certifications: UL, CSA, TUV, CE, UKCA
Buy the XP Power Series PBR500 Power Supply Part Number PBR500PS12C
Purchase the XP Power PBR500 series power supply now for dependable performance in industrial and medical applications. Featuring 450-500W output, optional forced air cooling, and safety compliance including UL and CE certifications, these units guarantee high efficiency and robust protections. Designed for demanding environments, they offer reliable operation at high altitudes up to 5000 meters, with features like Power OK, inhibit, and remote sense. Order online today and enhance your project’s power reliability with these trusted, compact power supplies.
Order your XP Power Series PBR500 power supply today and ensure reliable, high-performance power delivery for your industrial and medical projects.
Frequently Asked Questions
Where can I buy XP POWER PBR500PS12C?
You can click on the BUY or RFQ button to purchase PBR500PS12C from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part PBR500PS12C?
You can download the PBR500PS12C datasheet or visit the XP POWER website for support.
Who is the manufacturer of PBR500PS12C?
XP POWER
