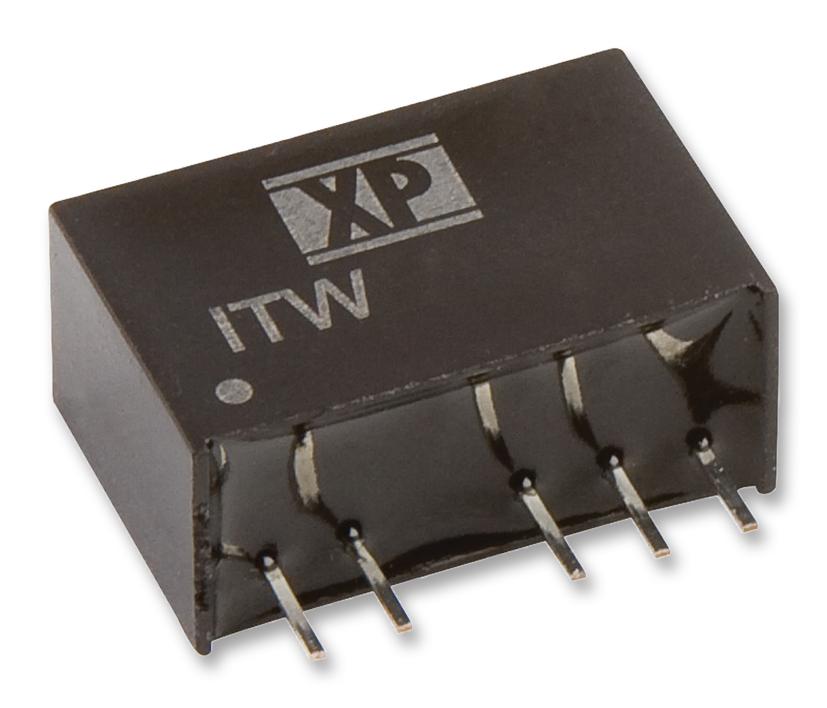

XP POWER ITW2412S DC-DC Converter
The ITW2412S is a compact, fully regulated DC-DC converter that provides 12V output with an input voltage range of 9V to 36V. It features 1500 VDC isolation, operates within -40°C to +105°C temperatures, and requires no minimum load, making it ideal for industrial and automation applications. Its small size (17.0 x 11.0 x 7.6 mm) and high efficiency up to 80% ensure reliable operation in harsh environments. Certified for safety and EMI standards, it offers robust performance for power systems requiring isolation and regulation.
XP POWER ITW2412S DC-DC Converter Specifications:
- Input Voltage Range: 9V to 36V
- Output Voltage: 12V
- Output Current: 20 mA to 108 mA
- Isolation Voltage: 1500 VDC
- Operating Temperature: -40°C to +105°C
- Efficiency: Up to 80%
- Dimensions: 17.0 x 11.0 x 7.6 mm
- Input Ripple: 35 mV pk-pk at 12V models
- Input Surge Voltage: 50 VDC for 1000 ms at 12V models
- Load Regulation: 5% to 100%
- Transient Response: 3% deviation within 2 ms
- Ripple & Noise: 50 mV pk-pk
- Certification: UL, IEC safety standards
- Cooling: Natural convection
- Isolation Resistance: 10Ω
- Switching Frequency: 150-550 kHz
Buy the XP Power ITW2412S – Reliable DC-DC Converter for Industrial Applications
Purchase the XP Power ITW2412S online today to ensure your industrial automation and power supply projects benefit from a compact, highly reliable DC-DC converter. Featuring 12V output, 1500V isolation, and efficiencies up to 80%, this converter operates flawlessly across a wide temperature range of -40°C to +105°C. Its no-minimum load design, safety certifications, and small footprint make it perfect for demanding industrial environments. Order now to enhance your power management solutions with this high-performance converter, available with fast shipping and dedicated support.
Buy XP Power ITW2412S now and experience unmatched reliability and performance in industrial power systems with high efficiency and robust isolation.
Frequently Asked Questions
Where can I buy XP POWER ITW2412S?
You can click on the BUY or RFQ button to purchase ITW2412S from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ITW2412S?
You can download the ITW2412S datasheet or visit the XP POWER website for support.
Who is the manufacturer of ITW2412S?
XP POWER
