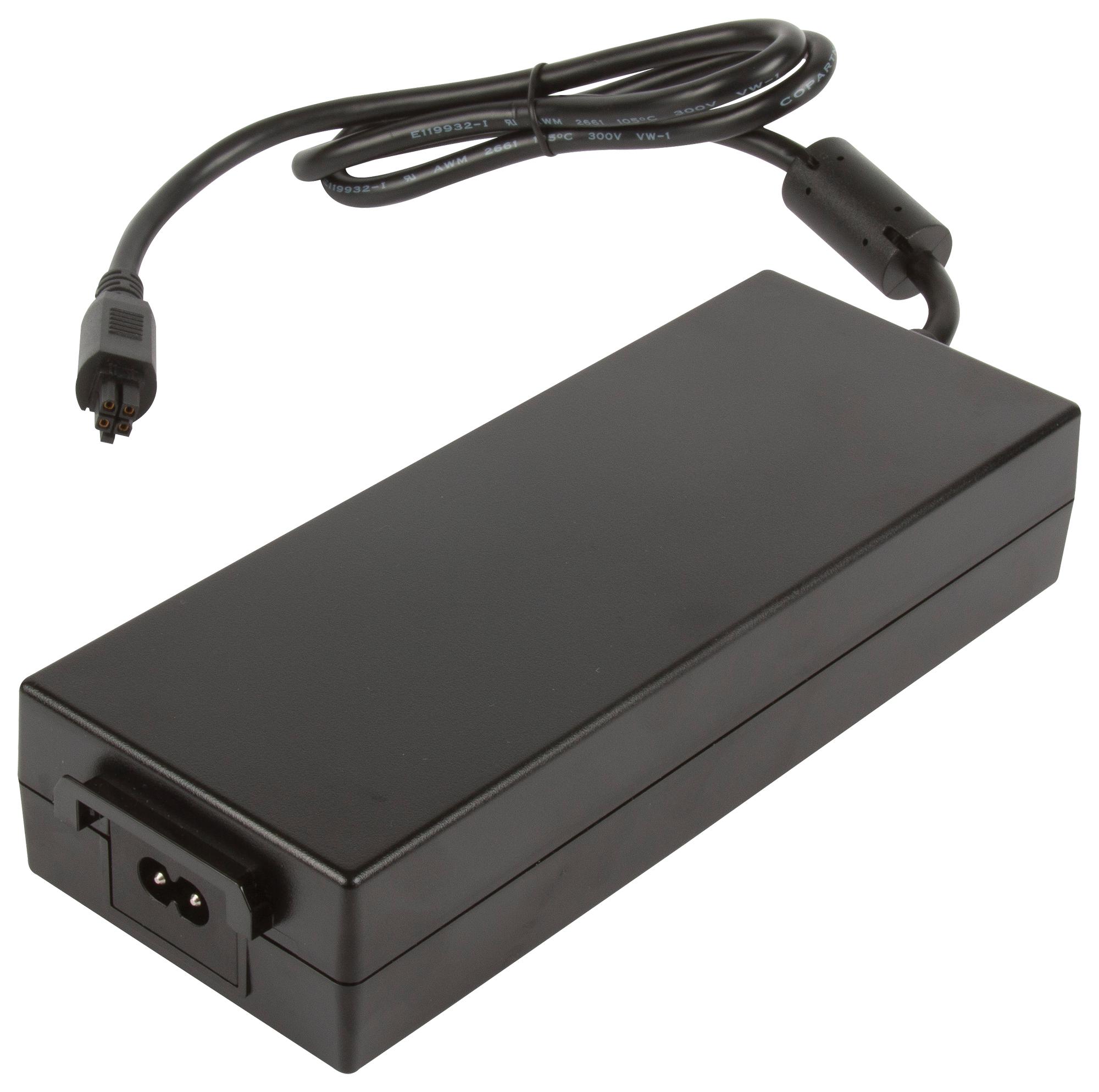

XP POWER ALM200PS15C28 Medical Power Supply
The ALM200 series of medical external power supplies is fully compliant with international medical and IT safety standards. Designed for high efficiency and low standby power consumption, it meets current environmental regulations. The unit features a sealed enclosure with IP32 protection rating and a smooth surface finish for easy cleaning in clinical environments. It offers energy efficiency Level VI and EU Code of Conduct Tier 2 compliance, with standby power under 0.15W. Operating temperature ranges from 0°C to 60°C. The power supply has low earth leakage current, dimensions of 8.23 inches x 3.23 inches x 1.69 inches (209mm x 82mm x 43mm), and a Class II construction suitable for medical applications.
XP POWER ALM200PS15C28 Medical Power Supply Specifications:
- Input Voltage: 80-264 VAC, 63 Hz
- Input Power: No load 0.15 W
- Output Power: 200 Watts
- Output Voltage: Multiple models (e.g., 12V, 15V, 24V, 48V)
- Output Current: Up to 16.67A depending on model
- Efficiency: 92%
- Isolation: Input to Output 4000 VAC, Input to Ground 1800 V, Output to Ground 500 V
- Dimensions: 8.23 inches x 3.23 inches x 1.69 inches (209mm x 82mm x 43mm)
- Operating Temperature: 0°C to 60°C
- Environmental Rating: IP32
- Safety Compliance: Medical and IT safety standards, Class II construction
- Energy Efficiency: Level VI, EU CoC Tier 2
- Standby Power: <0.15W
- Earth Leakage Current: Low Earth Leakage
- Warranty: 3 Years
Buy the Buy XP Power ALM200 Power Supply Part Number ALM200PS15C28 Online
Purchase the XP Power ALM200 series power supply online today and benefit from high efficiency, low standby power, and proven safety approvals. Designed for medical and IT environments, this power supply features a sealed IP32 enclosure, operating between 0°C and 60°C, ensuring dependable performance in clinical settings. Its compact dimensions of 8.23 inches by 3.23 inches by 1.69 inches make installation easy. With a 3-year warranty, low earth leakage current, and compliance with environmental standards, it’s an ideal choice for critical medical and industrial power needs.
Order your XP Power ALM200 series power supply today and ensure reliable, efficient power for medical and industrial applications.
