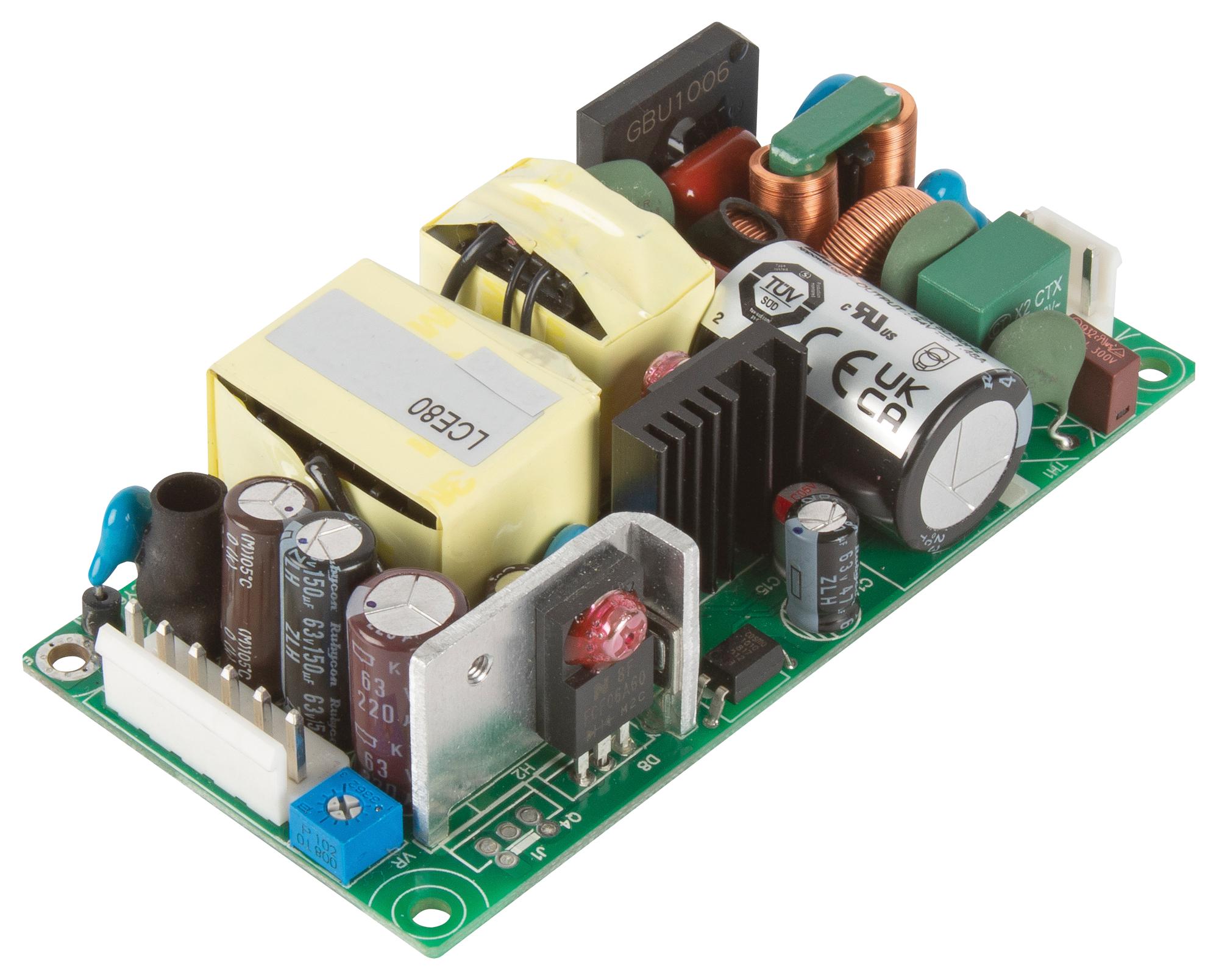

XP POWER LCE80PS36 Power Supply
This 80W convection-cooled power supply operates in both constant voltage and constant current modes, making it ideal for lighting, display, and industrial electronics. It features a 4-inch by 2-inch footprint, supports a wide input voltage of 90 to 305VAC, and complies with Harmonics Class C standards. Suitable for both Class I and Class II applications, it has low no-load power consumption below 0.5W, certifications for ITE and lighting safety, and provides Limited Power Source approval for outputs of 12V and above. Its durable design handles temperatures from -40°C to +70°C and includes necessary safety features.
XP POWER LCE80PS36 Power Supply Specifications:
- Power Output: 80W
- Input Voltage Range: 90 to 305VAC
- Input Frequency: 50/60Hz
- Efficiency: Up to 88.8%
- Dimensions: 4 inches x 2 inches x 1.10 inches
- Operating Temperature: -40°C to +70°C
- Ripple & Noise: 120-240 mV
- Isolation: Input to Output 3000 VAC, Input to Ground 1500 VAC, Output to Ground 4500 VDC
- Certifications: UL, EN, CE, CB, UKCA, class I & II approvals
- Inrush Current: 0.8/0.42A at full load
- No Load Power: Less than 0.5W
- Safety Approvals: UL62368-1, IEC60950-1, EN62368-1
Buy the Buy XP Power LCE80PS36 Part Number LCE80PS36 Online
Secure your professional-grade power supply online today. The 80W model supports constant voltage and current modes, has a wide input voltage range from 90 to 305VAC, and features low no-load power consumption under 0.5W. Certified for ITE and lighting safety standards, it is suitable for industrial, display, and lighting applications. Its durable build handles temperatures from -40°C to +70°C, offering reliable performance and safety approvals. Place your order now to ensure continuous, efficient power for critical systems.
Buy XP Power LCE80PS36 now and experience unmatched reliability and performance in industrial and lighting applications.
Frequently Asked Questions
Where can I buy XP POWER LCE80PS36?
You can click on the BUY or RFQ button to purchase LCE80PS36 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCE80PS36?
You can download the LCE80PS36 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCE80PS36?
XP POWER
