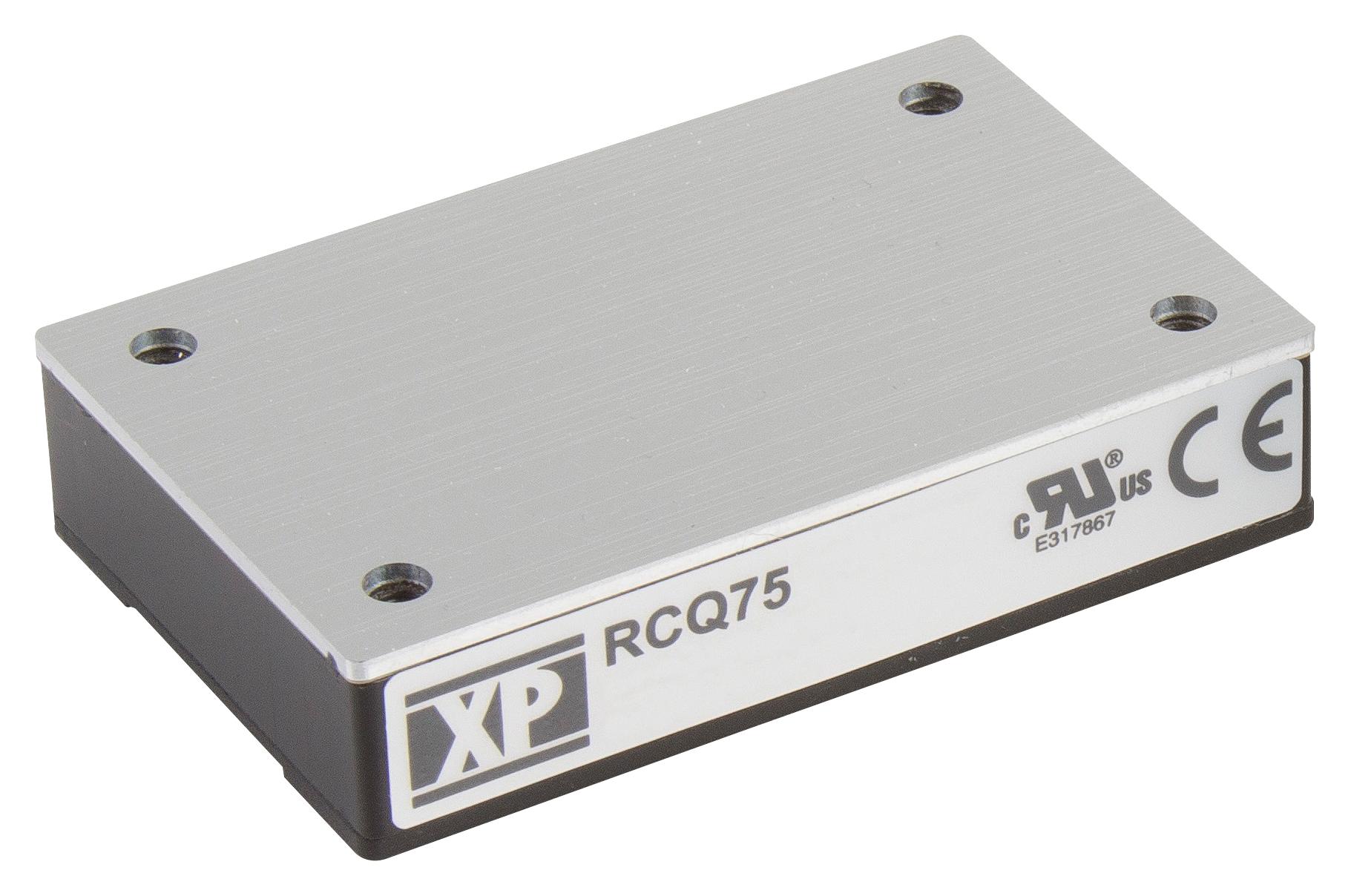

XP POWER RCQ7572S12 DC-DC Converter
The RCQ75 series are high-reliability, regulated DC-DC converters rated for 75 Watts, designed for industrial and railway applications. They feature wide input voltage ranges of 66-160V DC, with models for 72V and 110V nominal sources, and provide output voltages of 5V, 12V, 15V, and 24V with adjustable trim for ±10% variation. These converters include remote on/off, remote sensing, and basic galvanic isolation of 3000VAC input to output. With an operating temperature span from -40°C to +105°C, they meet standards such as EN50155, IEC60571, and UL60950-1, ensuring broad industrial application. Compact and efficient, they support railway safety requirements and power management needs in demanding environments.
XP POWER RCQ7572S12 DC-DC Converter Specifications:
- Power Rating: 75 Watts
- Input Voltage Range: 66-160V DC (nominal 72V and 110V models)
- Output Voltage Options: 5V, 12V, 15V, 24V with ±10% trim
- Isolation: 3000 VAC input to output, 1500 VDC output to case
- Operating Temperature: -40°C to +105°C
- Efficiency: Up to 92%
- Remote On/Off: Yes
- Remote Sense: Yes, compensates up to 10% of Vout
- Dimensions: 2.28 x 1.45 x 0.50 inches (57.9 x 36.8 x 12.7 mm)
- Protection: Overvoltage, short circuit, thermal
- Standards: EN50155, IEC60571, UL 60950-1, IEC 61000 EMC
- Weight: Approx. 0.13 lbs (61 g)
- Isolation Resistance: 10^9 Ω
- Switching Frequency: 320 kHz
- Certifications: UL, IEC, EN applicable for railway and industrial environments
Buy the Buy XP Power RCQ75 Series 75 Watts DC-DC Converter Part Number RCQ7572S12 Online
Purchase the XP Power RCQ75 series DC-DC converters online today to benefit from proven reliability, wide input voltage compatibility, adjustable output, remote control features, and compliance with railway standards. Perfect for industrial, railway, and power management applications, these units provide efficient and safe power conversion in demanding environments. Enjoy the convenience of fast online ordering, expert support, and guaranteed quality, ensuring your projects meet rigorous safety and performance requirements with minimal downtime and maximum reliability.
Order your XP Power RCQ75 series 75 Watts DC-DC converter today and ensure reliable power for your railway or industrial projects with high efficiency and safety compliance.
