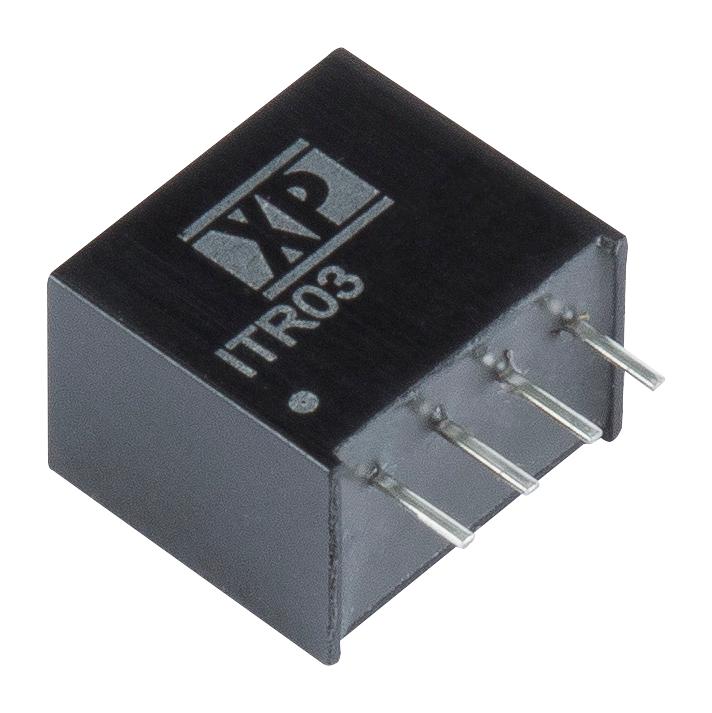

XP POWER ITR0305S12 DC-DC Converter Module
The ITROS Series offers a compact, high-efficiency DC-DC converter module with 3W power output, supporting input voltages from 5V to 24V DC and various output options. Designed for industrial applications, it features a robust encapsulated construction, 3kVDC input/output isolation, and an operating temperature range from -40°C to +100°C. Its high efficiency (up to 91%), low ripple, and conforming to EN55032 Class B standards make it ideal for demanding environments requiring reliable power conversion. Its small SIP package ensures easy integration into custom systems and solutions.
XP POWER ITR0305S12 DC-DC Converter Module Specifications:
- Input Voltage Range: 5V (4.5-5.5V), 12V (10.8-13.2V), 15V, 24V (21.6-26.4V)
- Output Voltage Range: 5V, 9V, 12V, 15V, 24V
- Maximum Output Current: 600mA for 5V, 250mA for 12V, 200mA for 15V, 200mA for 24V
- Efficiency: Up to 91%
- Isolation Voltage: 3000VDC, Test Voltage 100VDC working
- Operating Temperature: -40°C to +100°C, full power up to +85°C
- Dimensions: 0.46 x 0.38 x 0.29 inches (11.8 x 9.66 x 7.5mm)
- Switching Frequency: 40-70kHz
- Isolation Resistance: 10^2 ohms
- Isolation Capacitance: 65pF
- Enclosure: Non-conductive black plastic, UL94V-0 rated
- Potting Material: Silicone, UL94V-0 rated
- Solder Material: JEDEC J-STD 0200.1, max 260°C
- MTBF: Over 6.7 million hours
Buy the Buy XP Power ITROS Series Part Number ITR0305S12 Online
Purchase the XP Power DC-DC Converter Module ITR0305S12 online to ensure reliable power supply with high efficiency and robust construction. This 3W power module supports input voltages from 5V to 24V DC, features 3kVDC isolation, and operates efficiently across a wide temperature range. Its compact SIP package makes it ideal for industrial, automation, and electronics projects demanding dependable power conversion. Enjoy fast shipping, secure payment, and technical support when you buy this high-quality converter online. Order now and enhance your system’s performance.
Order your XP Power ITROS Series ITR0305S12 today and experience reliable, efficient power conversion for demanding industrial projects.
Frequently Asked Questions
Where can I buy XP POWER ITR0305S12?
You can click on the BUY or RFQ button to purchase ITR0305S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ITR0305S12?
You can download the ITR0305S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ITR0305S12?
XP POWER
