XP POWER JTR1024D12 DC-DC Converter

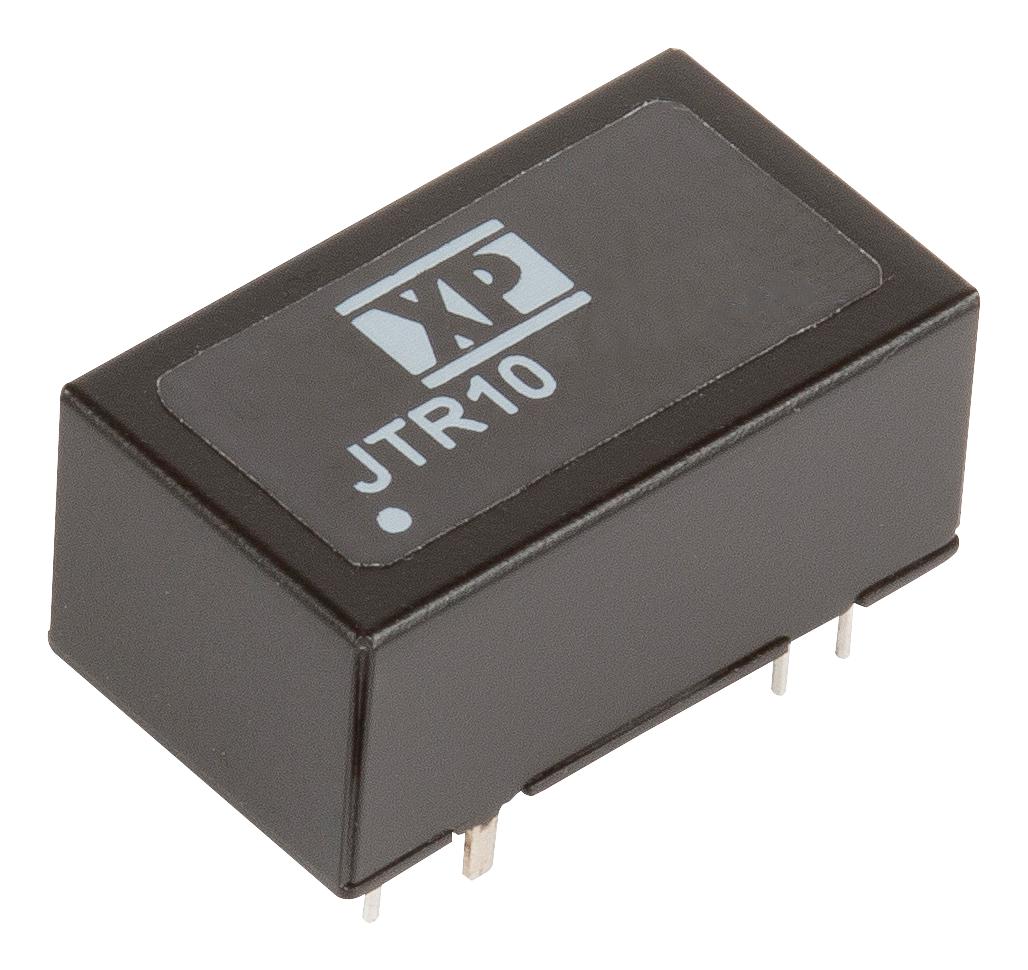

The JTR10 series are 10W DC-DC power modules housed in a DIP16 package. These converters feature an ultra-wide 4:1 input voltage range, 1500VDC isolation voltage, and 500VDC isolation for safety and performance. They operate effectively across a temperature range from -40°C to +88°C, delivering full power up to +70°C. Known for high power density, these compact modules measure 0.94 inches by 0.54 inches by 0.41 inches (23.8mm x 13.7mm x 10.3mm). They are certified with ITE safety approvals and are suitable for various industrial and electronic applications.
XP POWER JTR1024D12 DC-DC Converter Specifications:
- Power rating: 10 Watts
- Input Voltage Range: 9.0V to 36V or 18V to 75VDC
- Output Power: 10W
- Output Voltage: 3.3V to 30VDC, dual outputs +12V & +15VDC
- Isolation Voltage: 1500VDC
- Operating Temperature Range: -40°C to +88°C
- Full Power Temperature: up to +70°C
- Efficiency: Up to 87%
- Case Material: Black coated copper with plastic base UL94V-0 rated
- Physical Dimensions: 0.94 x 0.54 x 0.41 inches (23.8 x 13.7 x 10.3 mm)
- Protection: Overload, short circuit, and overvoltage protection
- Safety Approvals: IEC/UL/cUL 62368-1 (pending), EN55032 class A
- MTBF: Over 500,000 hours
- Compliance: Conducted & radiated emissions, ESD, EFT, Surge, and magnetic field immunity
Buy the XP Power JTR1024D12 – Reliable DC-DC Converter for Industrial Applications
Purchase the XP Power JTR10 series DC-DC converters online and ensure reliable power conversion for your industrial, automation, or electronic systems. These compact modules with a wide input range, high efficiency, and safety approvals are easy to integrate into various applications. Enjoy fast delivery, excellent support, and the confidence of using trusted power modules designed for durability and optimal performance. Upgrade your systems today with the JTR10 series for seamless, dependable power solutions.
Get XP Power JTR10 Series today—built for precision and long-lasting durability in your industrial and electronic projects.
Frequently Asked Questions
Where can I buy XP POWER JTR1024D12?
You can click on the BUY or RFQ button to purchase JTR1024D12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JTR1024D12?
You can download the JTR1024D12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JTR1024D12?
XP POWER
