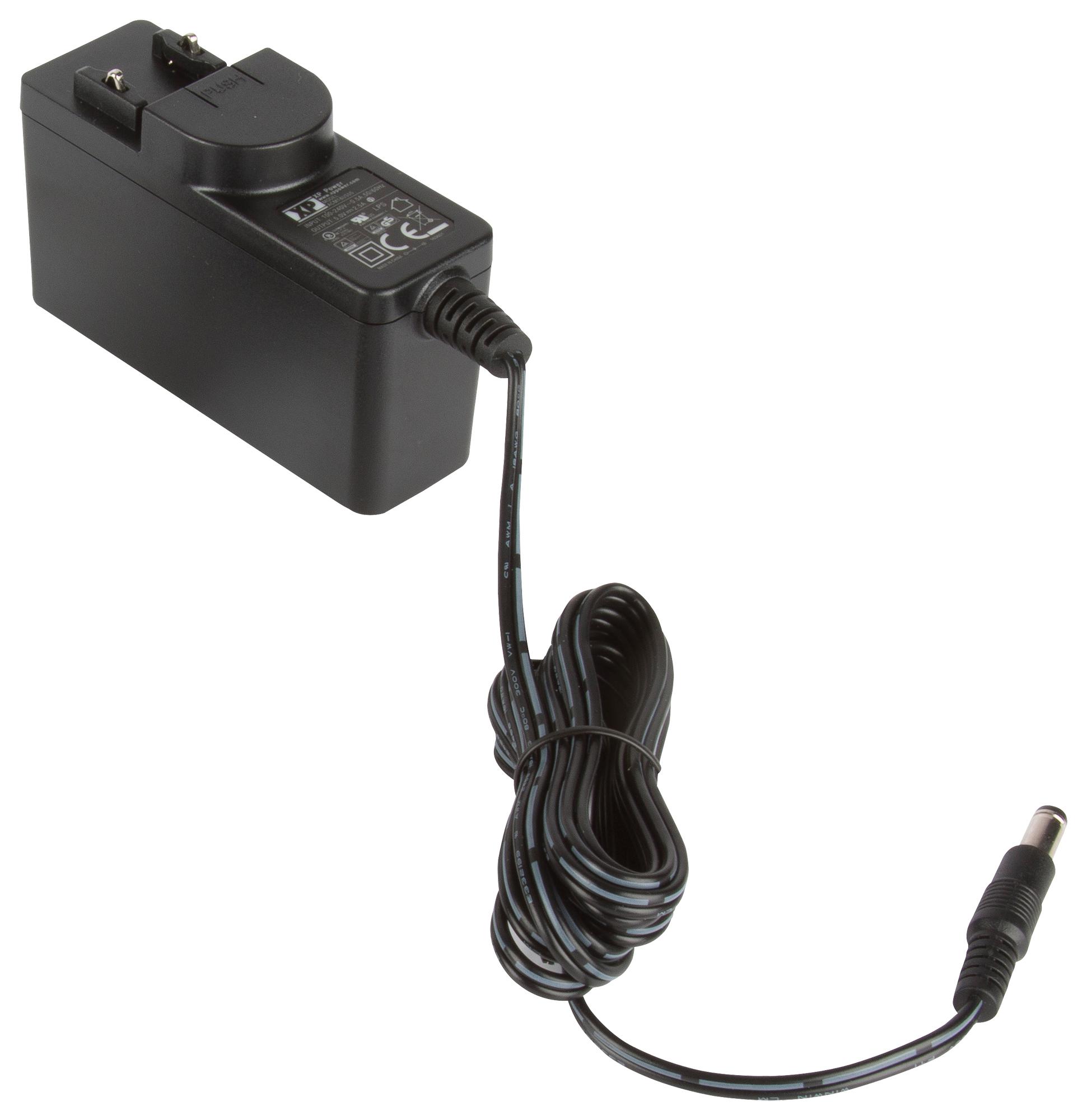

XP POWER ACM18US05 Power Adapter
The ACM18 series of wall plug adapters comply with the latest Energy Efficiency Level VI standards, featuring high active mode efficiency and extremely low no-load power consumption. These adapters are equipped with standard jack plug connectors, making them suitable for a wide range of industrial and medical applications that require reliable power. They support output voltages from 5V to 24V, are constructed with Class II safety design, and have interchangeable mains connectors for flexibility. The products are approved for medical and ITE use, meet European CoC Tier 2 standards, and come with a 3-year warranty.
XP POWER ACM18US05 Power Adapter Specifications:
- Power: 18 Watt
- Input Voltage: AC input, various plugs (UK, US, EU, Australian, China), optional white versions available
- Output Voltage: from 5 V to 24 V (specific models: 5V, 9V, 12V, 15V, 18V, 24V)
- Output Current: up to 2.5 A
- Efficiency: up to 87.5%
- Energy Efficiency Level: VI
- Isolation: 4000 VAC input to output, 2 x MOPP
- Dimensions (body only): 3.46 x 1.18 x 1.95 inches (88.0 x 30.0 x 49.5 mm)
- Construction: Class II safety design
- Safety Approvals: Medical and ITE approvals, European CoC Tier 2
- Warranty: 3 years
- Switching Frequency: 20-70 kHz (variable)
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -20°C to +85°C
- Operating Humidity: 5% to 90% RH, non-condensing
- Compliance: EN55032 Level B, EN61000-3-2, IEC60601-1-2, UL, CSA, CE, UKCA
Buy the Buy XP Power ACM18US05 Part Number ACM18US05 Online
Purchase the XP Power ACM18US05 power adapter online for dependable, energy-efficient power delivery suitable for medical and industrial environments. These adapters support output voltages from 5V to 24V with high efficiency up to 87.5%, ensuring low power consumption and compliance with Level VI standards. The compact design measures 3.46 by 1.18 by 1.95 inches, includes interchangeable mains connectors, and features safety approvals for medical and industrial applications. Obtain your reliable power supply today for seamless integration into your equipment.
Get XP Power ACM18US05 today—designed for reliable and energy-efficient power for medical and industrial use.
Frequently Asked Questions
Where can I buy XP POWER ACM18US05?
You can click on the BUY or RFQ button to purchase ACM18US05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ACM18US05?
You can download the ACM18US05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ACM18US05?
XP POWER
