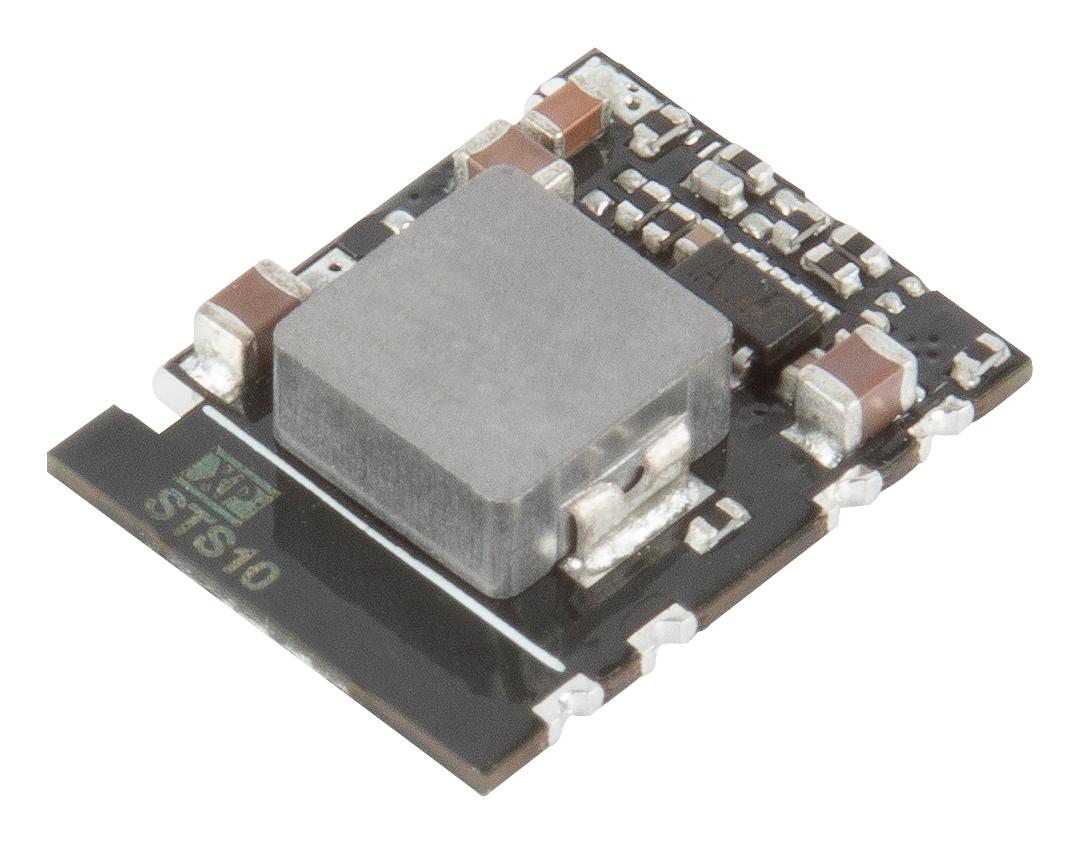

XP POWER STS1024S12 DC-DC Buck Regulator
The STS10 series are cost-effective, low-profile DC-DC buck regulators utilizing SMD technology and high automation. They feature regulated single outputs from 1.2V to 15V DC, with a wide input voltage range. Designed in an SMD-10 package, these non-isolated modules offer output voltage trimming of ±10%, high efficiency up to 96%, and include features such as remote on/off, continuous short circuit protection, and compliance with Class B conducted and radiated emission standards when external components are used. They operate at full load up to +65°C without the need for a heatsink.
XP POWER STS1024S12 DC-DC Buck Regulator Specifications:
- Input Voltage Range: 3.0-36.0 VDC depending on model
- Output Voltage: 1.2V to 15V (adjustable ±10%)
- Output Current: 1.0A
- Efficiency: Up to 96%
- Operation Temperature: -40°C to +105°C, full load up to +65°C
- Package: SMD-10
- Dimensions: 0.60 x 0.47 x 0.15 inches (15.20 x 11.80 x 3.6 mm)
- Short Circuit Protection: Continuous with auto recovery
- Remote On/Off: Yes
- Compliance Standards: Class B conducted & radiated emissions with external components
- No heatsink required
Buy the XP Power Series Buck Regulator: STS1024S12
Purchase the XP Power Series Buck Regulator STS1024S12 online today and benefit from its high efficiency up to 96%, wide input voltage range, adjustable output, and built-in short circuit protection. Designed for reliable power supply solutions, this low-profile, cost-effective module operates from -40°C to +105°C, with full load capability up to +65°C, eliminating the need for heatsinks. Its remote on/off feature makes it versatile for various applications, ensuring your electronic projects receive a stable and efficient power source.
Order your XP Power Series Buck Regulator STS1024S12 today and give your projects the dependable quality they deserve, ensuring efficient and reliable power conversion.
Frequently Asked Questions
Where can I buy XP POWER STS1024S12?
You can click on the BUY or RFQ button to purchase STS1024S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part STS1024S12?
You can download the STS1024S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of STS1024S12?
XP POWER
