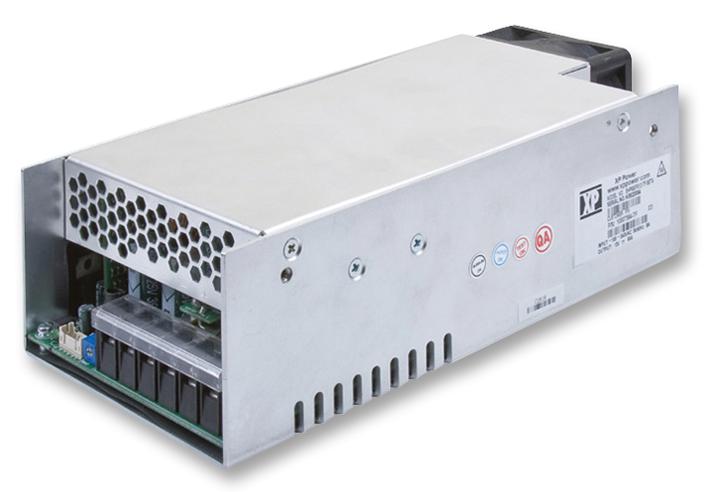

XP POWER SHP350PS36 Industrial Power Supply
The SHP350PS36 is a rugged industrial-grade power supply delivering up to 420 W of power with multiple output options, extensive protection features, and a load-dependent variable speed fan for noise reduction. It operates in a wide temperature range from -40°C to +70°C, includes a 5 V standby supply, and supports remote On/Off, AC OK, and active current sharing. Compact and compliant with SEMI F47 standards, it is suitable for high-reliability industrial automation and control applications. The unit features screw terminals for secure connections and a 3-year warranty for long-term durability.
XP POWER SHP350PS36 Industrial Power Supply Specifications:
- Power Output: 420 W
- Main Voltage Range: 12-48 VDC
- Standby Voltage: 5 VDC, 0.2 A
- Operation Temperature: -40°C to +70°C
- Cooling: Load-dependent variable speed fan
- Dimensions: 7” x 3.6” x 2.1”
- Protection: Overtemperature shutdown, Short circuit protection, Overload hiccup mode
- Efficiency: Approximately 85-90% depending on load
- EMC Compliance: Conducted EMC Class B, Semi F47 compliant
- Safety Approvals: IEC60950, UL, CSA, TUV
- Connections: Screw terminals
- Features: Remote On/Off, AC OK, Active Current Share
- Warranty: 3 years
Buy the Industrial Series Power Supply: 420 W Output - SHP350PS36
Purchase the SHP350PS36 industrial power supply online today to ensure reliable, high-performance energy delivery for your automation, control, and manufacturing needs. Its rugged construction, wide operating temperature from -40°C to +70°C, and multiple protection features make it ideal for harsh industrial environments. With easy screw terminal connections, remote On/Off, AC OK signal, and active current sharing, this power supply offers excellent flexibility. Invest in a certified, compliant, and durable power solution that guarantees long-term operational stability with a 3-year warranty.
Get SHP350PS36 industrial power supply today—built for precision and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy XP POWER SHP350PS36?
You can click on the BUY or RFQ button to purchase SHP350PS36 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part SHP350PS36?
You can download the SHP350PS36 datasheet or visit the XP POWER website for support.
Who is the manufacturer of SHP350PS36?
XP POWER
