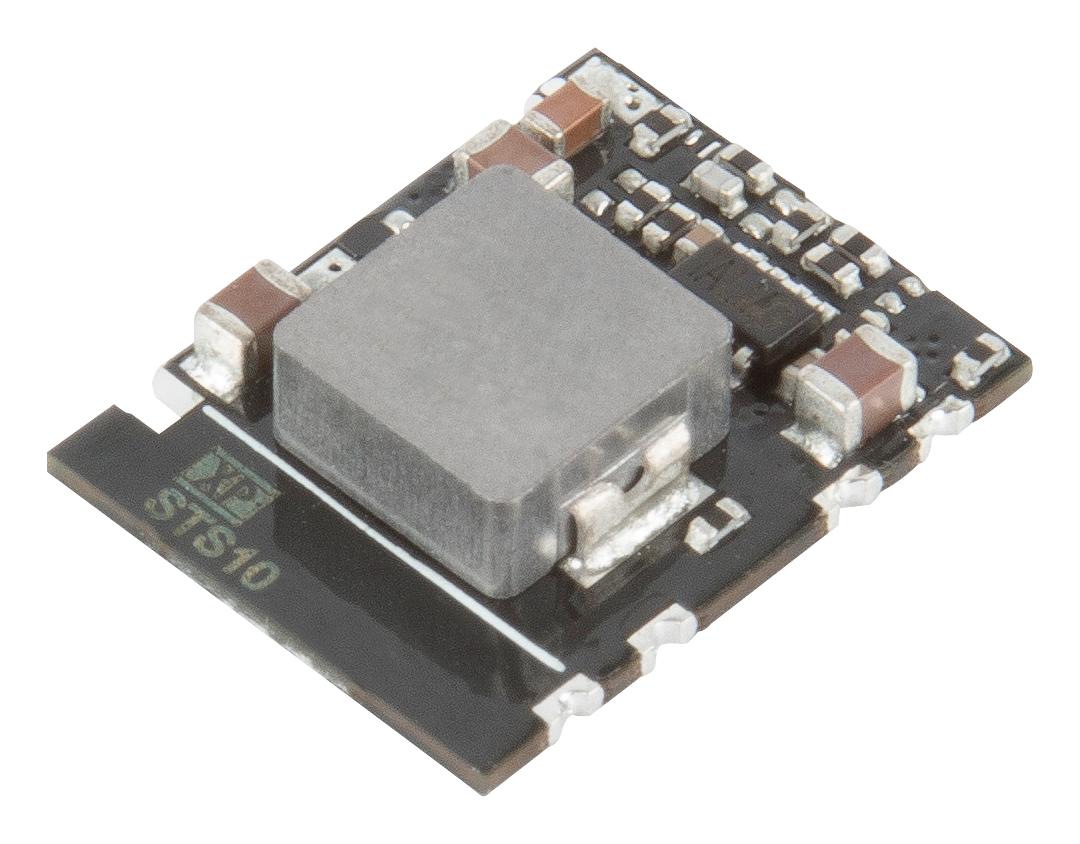

XP POWER STS1024S1V5 DC-DC Buck Regulator
The STS10 series consists of low-cost, compact DC-DC buck regulators utilizing SMD technology and high automation for efficient manufacturing. They feature regulated single outputs ranging from 1.2V to 15V DC, with a wide input voltage range. These non-isolated converters include output voltage trimming of ±10%, high efficiency up to 96%, and provide advanced features such as remote on/off, continuous short-circuit protection, and compliance with Class B conducted and radiated emission standards with external components. They do not require a heatsink and can deliver full load at temperatures up to +65°C. The specific part number is STS1024S1V5.
XP POWER STS1024S1V5 DC-DC Buck Regulator Specifications:
- Input Voltage Range: 6.5-36.0V
- Output Voltage: 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V, 6.5V, 9V, 12V, 15V
- Output Current: 1.0A
- Efficiency: Up to 96%
- Output Voltage Trim: ±10%
- Regulation Line: 0.2%
- Regulation Load: 0.6%
- Transient Response: <50mV deviation within 250μs
- Input Surge Voltage: 100ms peak
- Operating Temperature: -40°C to +105°C
- Full Load Temperature: Up to +65°C
- Protection: Short-circuit with auto recovery
- Isolation: None
- Dimensions: 0.60 x 0.47 x 0.15 inches (15.20 x 11.80 x 3.6 mm)
- Weight: Approx. 1.4 grams
- Construction: SMD surface-mount technology
- Compliance: Meets Class B conducted & radiated emissions standards
- Cooling: No heatsink required
- Features: Remote On/Off control, high efficiency, low cost
Buy the Buy XP Power DC-DC Buck Regulator Part Number STS1024S1V5 Online
Purchase the XP Power STS1024S1V5 DC-DC buck regulator online today and enjoy high efficiency up to 96%, compact size, and reliable performance. This versatile module offers adjustable output voltages from 1.2V to 15V with ±10% trimming, ideal for powering sensitive electronics in industrial and automation systems. Its features include remote on/off, short-circuit protection, and compliance with emission standards. No heatsink is required, simplifying installation. Get yours now for a dependable power solution that ensures optimal operation in demanding environments.
Buy XP Power STS1024S1V5 now and experience unmatched efficiency, reliable power regulation, and flexible features for your industrial applications.
