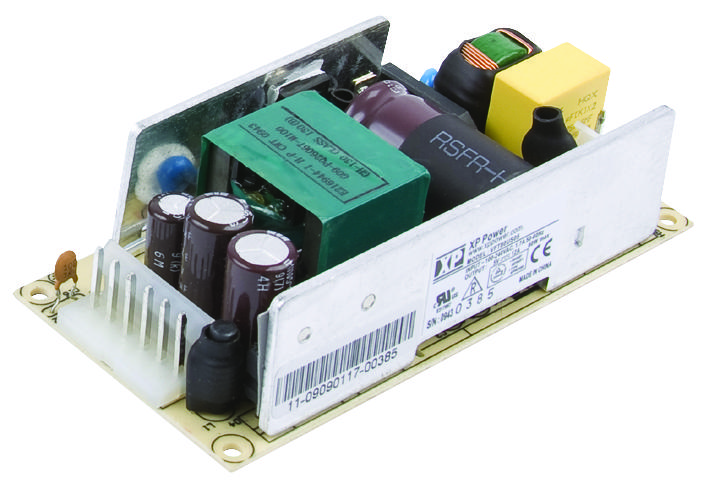

XP POWER VFT80US24 Power Supply
This power supply provides an 80W convection cooling rating with a peak load capability. It is designed in a 2" x 4" package suitable for 1U applications. The power supply offers single output voltages ranging from 5V to 24V, with a low no-load input power of less than 0.5W. Ideal for power management applications, it features reliable performance in compact form factors. Please note that high market demand may result in extended lead times and fluctuating delivery dates. The product is exempt from discounts.
XP POWER VFT80US24 Power Supply Specifications:
- Input Voltage: 85-264 VAC
- Input Frequency: 47-63 Hz
- Input Current: 2 A max at 115 VAC, 1 A max at 230 VAC
- Inrush Current: 85 A max at 230VAC, cold start 25 °C
- Earth Leakage Current: 500 pA max at 264 VAC / 60 Hz
- Power Factor: >0.5 at 50% load
- No Load Input Power: <0.5 W
- Input Protection: Internal T3.15A/250 V fuse in line
- Output Voltage: 5V, 12V, 15V, 24V models available
- Output Voltage Trim: None specified
- Line Regulation: <2% at 50% load
- Load Regulation: 1-2% (measured from 20% to 100% load)
- Transient Response: 4% maximum deviation, recovering within 500 ps for 50% step load
- Ripple & Noise: 1% max pk-pk
- Overvoltage Protection: Trip and restart (hiccup mode)
- Overload Protection: Yes, with hiccup mode
- Short Circuit Protection: Yes, automatically resets
- Operating Temperature: -10°C to +70°C (derate from 100% load at 50°C)
- Cooling: Convection (40W), Forced (60W/80W with 10 CFM)
- Efficiency: Up to 85% or more
- Isolation: 3000VAC Input to Output, 1500 VAC Input to Ground
- Switching Frequency: 60 KHz ± 10 KHz
- MTBF: >320,000 hours
- Environmental: Operating humidity 5% to 90%, non-condensing; Altitude up to 2000m
- Storage Temperature: -40°C to +85°C
- Shock & Vibration: IEC standards IEC68-2-6, IEC68-2-27 respectively
- EMC & Safety: Meets EN55032, EN61000-3-2, EN61000-3-3, EN61000-4-2/3/4/5/6/11, UL60950-1, IEC60950-1, EN60950-1, UL62368-1, IEC62368-1, CE, UKCA
Buy the Power Supply Series 80W 24V: VFT80US24
Purchase the VFT80US24 power supply online today and enjoy fast delivery, competitive pricing, and superior performance. Ideal for compact electronic systems, this 80W power supply features a versatile output range from 5V to 24V, offering high efficiency and low no-load power consumption. Designed to operate efficiently in a wide temperature range, it’s perfect for industrial automation, control systems, and LED lighting. Secure your reliable power solution now and ensure seamless operation of your critical devices.
Buy VFT80US24 power supply now and experience unmatched reliability and performance for your power management needs.
Frequently Asked Questions
Where can I buy XP POWER VFT80US24?
You can click on the BUY or RFQ button to purchase VFT80US24 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VFT80US24?
You can download the VFT80US24 datasheet or visit the XP POWER website for support.
Who is the manufacturer of VFT80US24?
XP POWER
