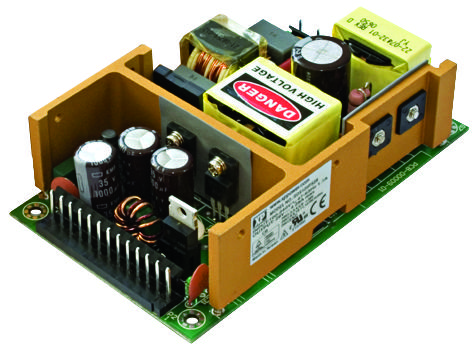

XP POWER SDS120PS24B Power Supply
This power supply is convection cooled and features a 3 x 5-inch footprint. It includes active Power Factor Correction (PFC) and offers overvoltage and overcurrent protection. The device has international safety approvals and an optional cover for added protection. Suitable for power management applications. Note that market demand may cause extended lead times, and delivery dates are subject to fluctuation. The product is exempt from discounts.
XP POWER SDS120PS24B Power Supply Specifications:
- Input Voltage: 90-264 VAC, 120-370 VDC
- Input Frequency: 47-63 Hz
- Output Power: 120 W
- Output Voltage: +5V (variable +10%)
- Efficiency: Up to 90%
- Mechanical Size: 3 x 5 inches footprint
- Protection: Overvoltage, Overcurrent, Short Circuit
- Protection Type: Trip & restart (hiccup mode)
- Isolation: 3000 VAC input to output
- Operating Temperature: 0°C to +70°C (derate above +50°C)
- Cooling: Convection-cooled
- Certifications: UL60950-1, CSA60950-1, EN55022 level B
- Humidity: 5-95% RH, non-condensing
Buy the Power Supply Series SDS Series: SDS120PS24B
Order the SDS120PS24B power supply online and experience reliable power delivery for industrial and automation systems. Featuring convection cooling, active PFC, and robust protection features, this compact device is ideal for power management solutions. With international safety approvals and optional protective covers, it is designed for durability and safe operation. Efficient operation at up to 90%, compact 3 x 5-inch footprint, and comprehensive safety features make it a perfect choice for demanding applications. Purchase today for peace of mind in power reliability.
Get SDS120PS24B power supply today—built for reliable power management with excellent efficiency and safety features.
Frequently Asked Questions
Where can I buy XP POWER SDS120PS24B?
You can click on the BUY or RFQ button to purchase SDS120PS24B from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part SDS120PS24B?
You can download the SDS120PS24B datasheet or visit the XP POWER website for support.
Who is the manufacturer of SDS120PS24B?
XP POWER
